  • This item has been sold!

For Sale..

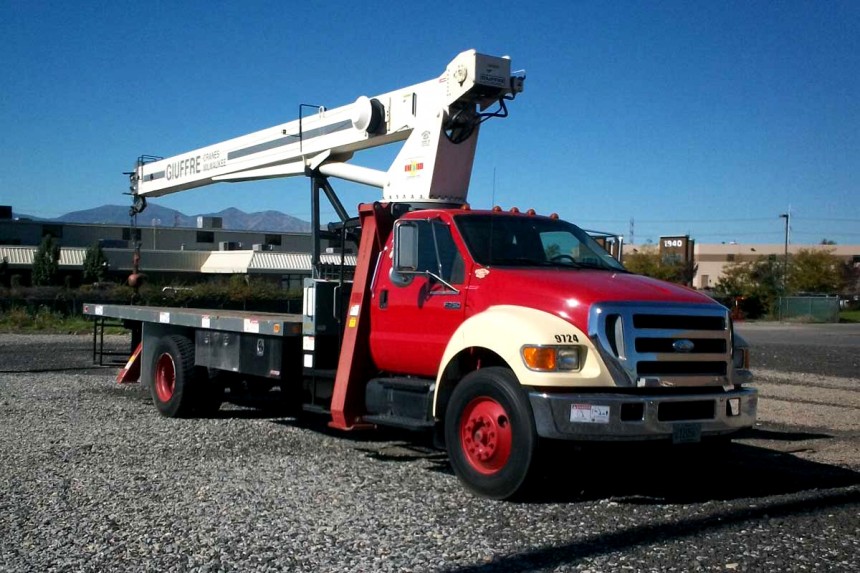

18 Ton Terex BT3670
Boom Truck
Unit: 9724
Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerTerex
Crane ModelBT3670
Capacity18 ton
Boom Length70'
Total Tip Height80'
OutriggersFour A-frame Hydraulic Outriggers
BodyHeavy Duty 20' x 8' Wood
Crane Warranty6 Month Diamond
Additional Crane Features3-Section Boom With Terex Patented Keel Design - Microguard 586 LMI System With Capacity Alert - Under-ride Protection - 2-speed Winch - Outrigger Pad Rack Included.
Truck
ManufacturerFord
Truck ModelF750
EngineCummins ISB Turbo Diesel
Horsepower245
TransmissionFuller 6-speed manual
GVW33000
Warranty6 Month Diamond
Additional Truck FeaturesApproximately 22,422 miles Engine Block Heater Full Air Brakes Heavy Duty Springs Chrome Bumper/Grille Heavy Duty Pintle Tow Hitch Included 3 48" Steel Tool Boxes Included
Description
Year2007
DescriptionTerex BT3670 18 Ton on 2007 Ford F750
StatusUsed
Features

Dual Operators Stations

Dual operating consoles allows operation from both sides of the Crane.

Precision Hydraulic Control

Fully proportional hydraulic controls with precision movement allows for the smoothest crane operation in it’s class.

Define work areas / borders

Operator definable: Rotation, Extension, and Boom Angle allows for safe operation. An audible tone will he heard if crane is operated near or outside these boundaries.

TEREX BT-3470

"THE BEST SELLING CRANE IN THE WORLD"

The Terex BT-3870 series boom truck offered for sale at Giuffre Bros Cranes, Is a versatile workhorse that features a 19 ton telescopic boom crane in a small, portable foot print. It’s ease to operate, and low-operating cost make the BT-3870 one of our most popular small Boom Trucks among Roofers, Sign Builders, and Arborist's (Tree Care Industry). Other popular applications include light residential construction, truss setting, HVAC, DOT / Highway, Municipality projects & much more!

Specifications

Boom, Jib and Rotation


Boom Type Three-section, 70 ft, full power fully synchronized telelscopic keel boom
Boom length 28-70 ft
Boom maximum tip height 80 ft
Boom elevation angle range (min / max). -10 to 80°
Boom up/down time 25/16 seconds
Boom extension / retraction time. 61/29 seconds
Boom head Quick reeving dual sheave boom head
Maximum tip height: 104 ft with optional single stage 24 ft jib
  120 ft with optional two stage 24-40 ft jib
Safe area of operation 180 degree standard rotation
Extended area of operation 370 degree or continuous rotation (optional - requires single front bumper outrigger)

Mounting Configurations

BT3870S (Standard / Single Axle Chassis)

  • Gross Vehicle Weight Rating 33,000 lb
  • Front Axle Weight Rating 12,000 lb
  • Rear Axle Weigh Rating 21,000 lb
  • Wheelbase 242 in
  • Cab to Axle 168 in
  • Afterframe 100 in
  • Frame Section Modulus 16.98 in3
  • RBM per Frame Rail 1,800,000 lb-in
  • Frame Height (Unloaded) 40 in
  • Exhaust Position Left Side Under Cab

BT3870T (Tandem Axle Chassis)

  • Gross Vehicle Weight Rating 33,000 lb
  • Front Axle Weight Rating 12,000 lb
  • Rear Axle Weigh Rating 21,000 lb
  • Wheelbase 242 in
  • Cab to Axle 168 in
  • Afterframe 100 in
  • Frame Section Modulus 16.98 in3
  • RBM per Frame Rail 1,800,000 lb-in
  • Frame Height (Unloaded) 40 in
  • Exhaust Position Left Side Under Cab
Dimensions

BT3870S (Standard / Single Axle Chassis)

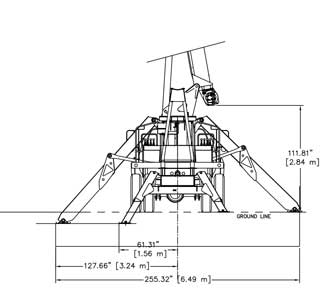

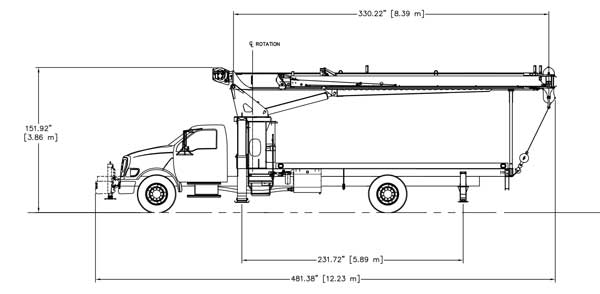

Terex BT3470 Standard Mount Side Dimensions Terex BT3470 Standard Mount Rear Dimensions

BT3870S (Tandem Axle Chassis)

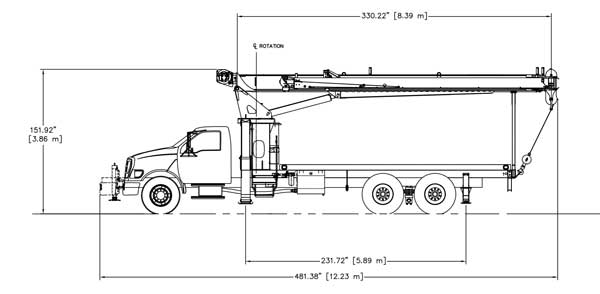

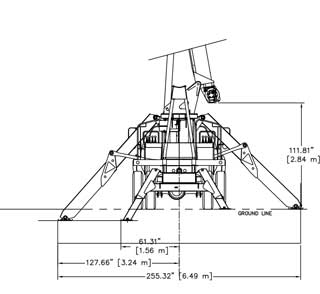

Terex BT3470 Tandem Axls Side Dimensions Terex BT3470 Tandem Axle Rear Dimensions

BT3870 (All Configurations) - Top View

Terex BT3470 Top Dimensions
Load Charts

BT-3870 Crane - Range Chart

Terex BT3470 Crane Range Chart / Diagram

BT 3870 Crane - Load Chart

Terex BT3470 Crane Load Chart

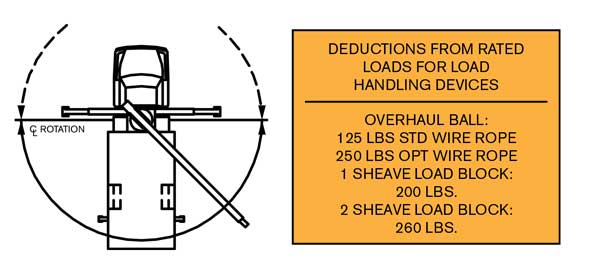

BT 3870 Area of Safe Crane Operation

Terex BT3470 Area of Safe Crane Operation
Load Chart

Terex BT3670 Load & Jib Chart


Terex BT3670 Range Chart
