For Sale..

35 Ton Terex BT70100
Boom Truck
Unit: 9840
$284,300
Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerTerex
Crane ModelBT70100
Capacity35 ton
Boom Length100'
Total Tip Height110'
Outriggers(4) Hydraulic Out & Down Outriggers with Intermediate and Fully Retracted Settings
BodyHeavy Duty 22' x 8' Wood Bed
Crane Warranty24 Month Terex Factory Parts and Labor Warranty
Additional Crane Features
  • Greer Insight LMI with Operator's Display Monitor
  • Anti-two block with internal wire
  • Load Charts for Extended, retractedm and intermediate
  • 3-section vane pump
Truck
ManufacturerKenworth
Truck ModelT470
EnginePaccar PX-9 Turbo Diesel 9.0L
Horsepower350
TransmissionFuller RTO11908LL 10 Speed Manual
GVW60000
WarrantyStandard Kenworth Factory Warranty
Additional Truck Features
  • Air-Locked cab
  • Bendix air heater and Air Dryer
  • Aircush highback Driver's seat
  • Paccar 1000W block heater
  • Alcoa aluminum polished wheels
Description
Year2016
DescriptionBrand New Terex BT70100 on 2016 Kenworth T470
StatusNew
Features

CRANE

  • NEW TEREX BT70100
  • 35 TON CAPACITY
  • 100FT 4-SEC PROPORTIONAL BOOM
  • 110FT WORKING SHEAVE TIP HEIGHT
  • 3 SECTION HYD. PUMP
  • 2 SPEED WINCH
  • GREER LMI LOAD MOMENT INDICATOR CAPACITY ALERT WITH OPERATOR'S DIGITAL DISPLAY MONITOR
  • ANTI-TWO BLOCK SYSTEM WITH INTERNAL ATB WIRE *NO WIRES*
  • HYDRAULIC OUT & DOWN OUT-RIGGERS FRONT AND BACK
  • HEAVY DUTY 22' X 8' 6" BED
  • PAINTED TEREX WHITE
  • ALL STANDARD EQUIPMENT
  • 24 MONTHS TEREX FACTORY
  • PARTS AND LABOR WARRANTY



TRUCK

  • NEW 2016 KENWORTH T470
  • 350HP PACCAR PX-9 DIESEL WITH TURBO EXHAUST BRAKE
  • 60,000# G.V.W.R.
  • 20,000# FRONT AXLE
  • 40,000# TANDEM REAR AXLE
  • FULLER RTO11908LL 10-SPEED
  • PACCAR 1000W BLOCK HEATER
  • 425/65R22.5 20PR FRONT TIRES
  • 11R22.5 16PR REAR TIRES
  • ALCOA ALUMINUM POLISHED FRONT WHEELS ~ ALCOA ALUMINUM OUTSIDE REARS (STEEL INNERS)
  • HENDRICKSON RT403 40K REAR SUSPENSION
  • TWO FRONT TOW HOOKS
  • POWER STEERING
  • AIR BRAKES WITH BENDIX
  • ANTI-LOCK BRAKE SYSTEM
  • DUAL BATTERIES
  • BOSCH 160 AMP ALTERNATOR
  • TAPERED CHROME STEEL BUMPER
  • STAINLESS STEEL PERMIT CAB PANELS
  • 3 PACCAR BATTERIES 1400 CCA
  • BATTERY DISCONNECT ON BATTERY BOX
  • LED STOP/TURN REAR LIGHTS
  • 1-PIECE CURVED GLASS WINDSHIELD
  • CRUISE CONTROL
  • AIR CONDITIONING
  • 56 GAL. ALUMINUM FUEL TANK
  • KW AM/FM/CD WEATHERBAND RADIO
  • KW HIGHBACK AIRCUSH DRIVER SEAT
  • KW TOOLBOX HIGHBACK RIDER SEAT
  • ELECTRIC RH & LH DOOR LOCKS
  • DAYLITE DOORS W/ RH PEEPER WINDOW
  • DUAL 8.5" CONVEX HEATED MIRRORS
  • SINGLE AIRHORN UNDER CAB
  • EXTERIOR STAINLESS STEEL SUNVISOR
  • PAINTED KENWORTH BRIGHT RED
  • ALL STANDARD EQUIPMENT
Load Chart

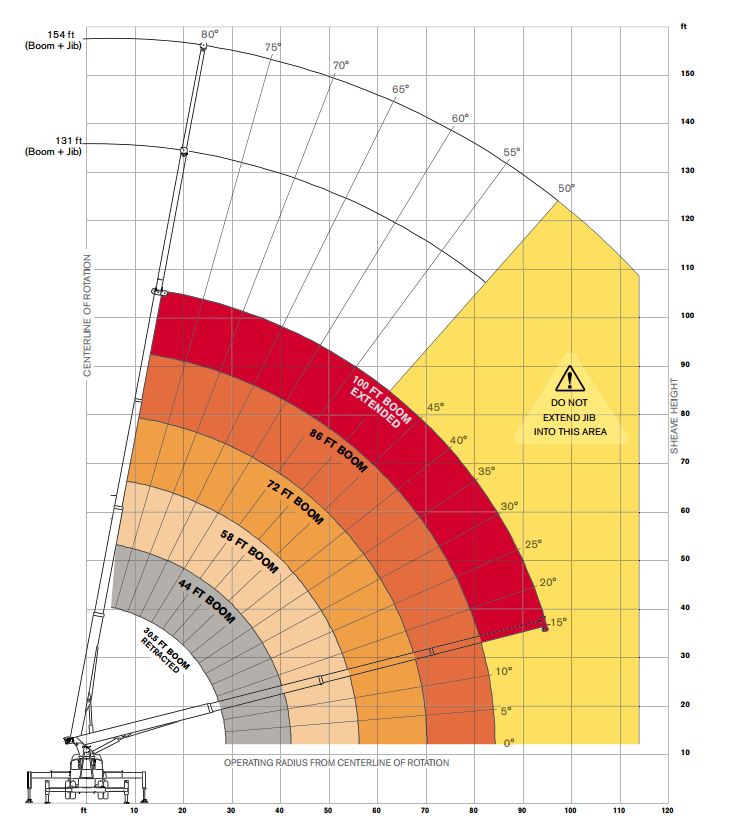

BT70100 Range Diagram

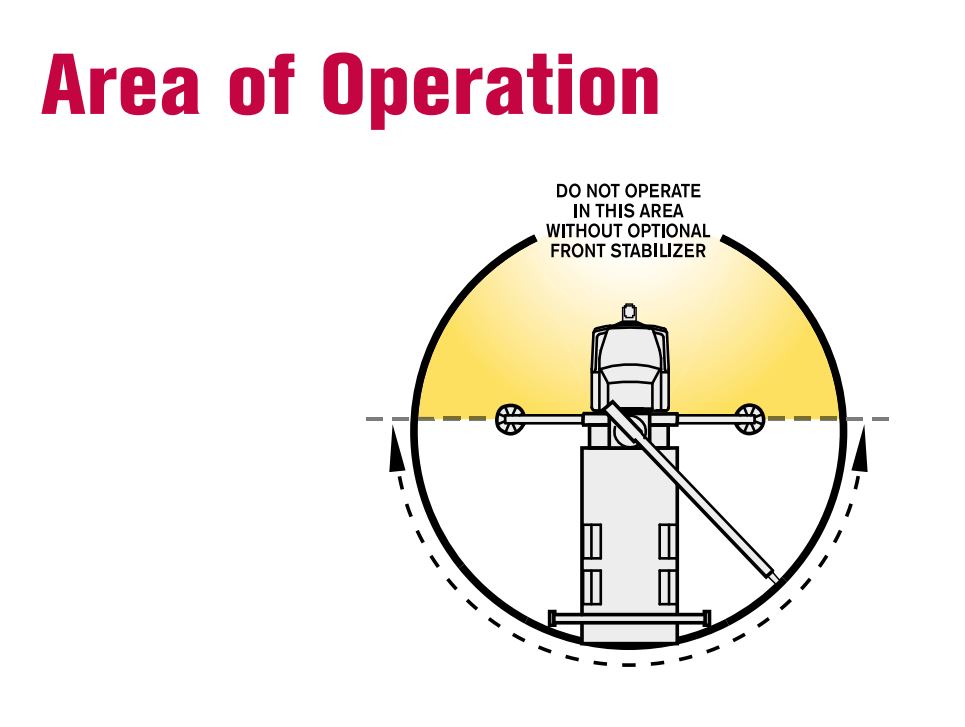

BT71000 Area of Operation Diagram


BT70100 Load Chart and Jib Chart with Fully Extended Outriggers


BT70100 Load Chart and Jib Chart with Fully Intermediate Outriggers


BT70100 Load Chart Fully Retracted Outriggers
