  • This item has been sold!

For Sale..

40 Ton Manitex 40124S
Boom Truck
Unit: 9AAA
Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerManitex
Crane Model40124S
Capacity40 ton
Boom Length124'
Jib Length55'
Total Tip Height189'
Outriggers4 Hydraulic Out/Down Outriggers with Intermediate and Fully Retracted settings
Body10' Heavy Duty Steel Bed
Crane WarrantyStandard Manitex Factory Warranty
Additional Crane Features
  • Heated Enclosed Operator's Cab
  • Hydraulic Front Stabilizer
  • 360 degree continuous rotation
  • Free swing option with foot brake
Truck
ManufacturerFreightliner
Truck Model114SD
EngineDetroit DD13 Turbo Diesel
Horsepower410
Transmission10 Speed Fuller Manual
GVW79200
WarrantyStandard Freightliner Factory Warranty - 24 Months unlimited miles
Additional Truck Features
  • Alcoa Polished aluminum front and rear outer wheels
  • 70 gallon aluminum fuel tank
  • High Back Air Suspension Driver's seat
  • Air locked cab for quiet ride
Description
Year2016
DescriptionManitex 40124S 40 Ton on 2016 Freightliner 114SD Tandem w/ pusher
StatusUsed
Features

CRANE

  • MANITEX 40124S
  • 40 TON CAPACITY
  • 124’ 5-SECTION TELESCOPING BOOM
  • 189’ MAXIMUM TIP HEIGHT WITH OPTIONAL JIB
  • RADIO ANTI-TWO BLOCK WITH LOCKOUT
  • TILTING OPERATOR CAB W/ HATCH GUARD
  • LOAD MOMENT INDICATOR
  • OUT/DOWN FRONT AND REAR OUTRIGGERS
  • AUDIBLE OUTRIGGER MOTION ALARM
  • 2-SPEED HOIST WITH GROOVED DRUM
  • 5-TON HOOK AND BALL
  • 5-LOAD SHEAVE QUICK REEVE BOOM HEAD
  • 380’ OF 5/8” ROTATION RESISTANT WIRE ROPE
  • 115-GALLON RESERVOIR WITH SUCTION STRAINER AND BALL VALVE
  • CONTINUOUS ROTATION AND FREE SWING
  • 3-SECTION HYDRAULIC PUMP
  • LOAD CHARTS FOR FULLY EXTENDED/INTERMEDIATE/RETRACTED OUTRIGGERS
  • PAINTED STD MANITEX COLORS
  • ALL STANDARD EQUIPMENT
  • 12 MONTH MANITEX FACTORY WARRANTY


TRUCK

  • NEW 2015 FREIGHTLINER
  • MODEL 114SD
  • 410HP DETROIT DD13 TURBO DIESEL ENGINE
  • 79,200 LB G.V.W.R.
  • 20,000 LB FRONT AXLE
  • 46,000 LB REAR AXLE
  • 13,200 LB PUSHER AXLE
  • EATON FULLER RTO-14908LL 10-SPEED MANUAL TRANSMISSION
  • EATON 15 1/2" SELF-ADJUSTING CLUTCH
  • MICHELIN 425/65R22.5 20 PLY RADIAL FRONT TIRES
  • MICHELIN 11R22.5 14 PLY RADIAL REAR TIRES
  • MICHELIN 275/80R22.5 16 PLY RADIAL PUSHER TIRES
  • ALCOA POLISHED ALUMINUM FRONT AND REAR OUTER WHEELS
  • 20,000# TAPERLEAF FRONT SUSP.
  • 46,000# HENDRICKSON RT463 REAR SUSP.
  • 13,200# HENDRICKSON SC13 AIR LIFT STEERABLE PUSHER SUSPENSION
  • PHILLIPS 1500W BLOCK HEATER
  • POWER STEERING
  • (3) ALLIANCE 1231 BATTERIES - 3375 CCA
  • FRONT TOW HOOKS
  • 16.5" CHROME STEEL STRAIGHT BUMPER
  • SINGLE 14" CHROME AIR HORN
  • 70 GAL ALUMINUM FUEL TANK
  • DUAL WEST COAST STYLE HEATED MIRRORS WITH REMOTE
  • DUAL 8" CONVEX MIRRORS
  • TINTED CAB GLASS ALL AROUND
  • HIGH BACK AIR SUSP. DRIVER'S SEAT
  • HIGH BACK NON SUSP. PASSENGER SEAT
  • AM/FM/WB RADIO RADIO WITH AUX. INPUT
  • COMPLETE GAUGE PACKAGE
  • PAINTED FREIGHTLINER WHITE ELITE
  • STANDARD FREIGHTLINER WARRANTY
Specifications
// This is the youtube video URL: http://www.youtube.com/watch?v=nOHHta68DdU $code = "aZQPES8E6d8"; // Get video feed info (xml) from youtube, but only the title | http://php.net/manual/en/function.file-get-contents.php $video_feed = file_get_contents("http://gdata.youtube.com/feeds/api/videos?v=2&q=".$code."&max-results=1&fields=entry(title)&prettyprint=true"); // xml to object | http://php.net/manual/en/function.simplexml-load-string.php $video_obj = simplexml_load_string($video_feed); // Get the title string to a variable $video_str = $video_obj->entry->title; // Output echo $video_str;
Load Chart

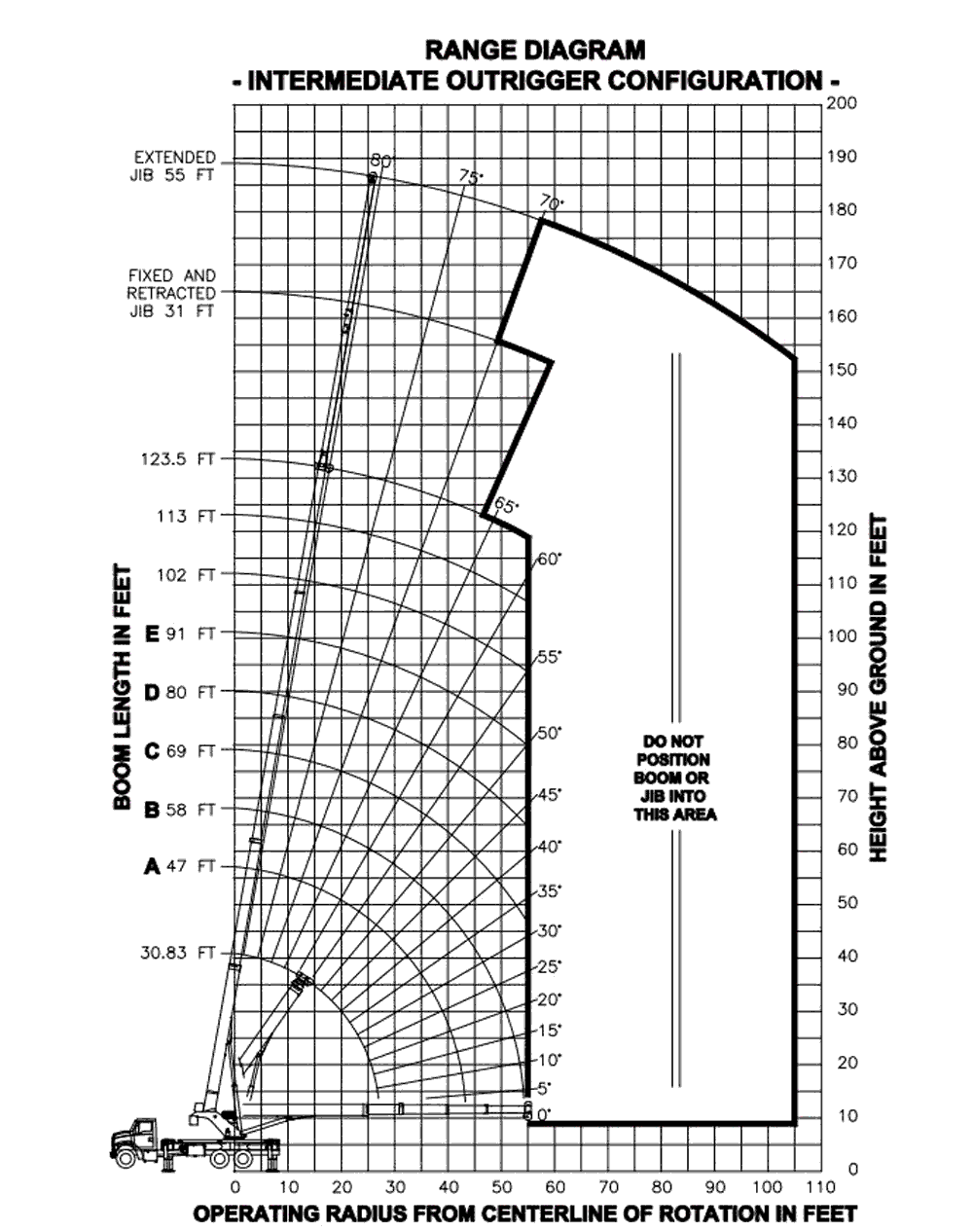

Manitex 40124S Range Diagram Intermediate Extended Outriggers


Manitex 40124S Load Chart Fully Retracted Outriggers

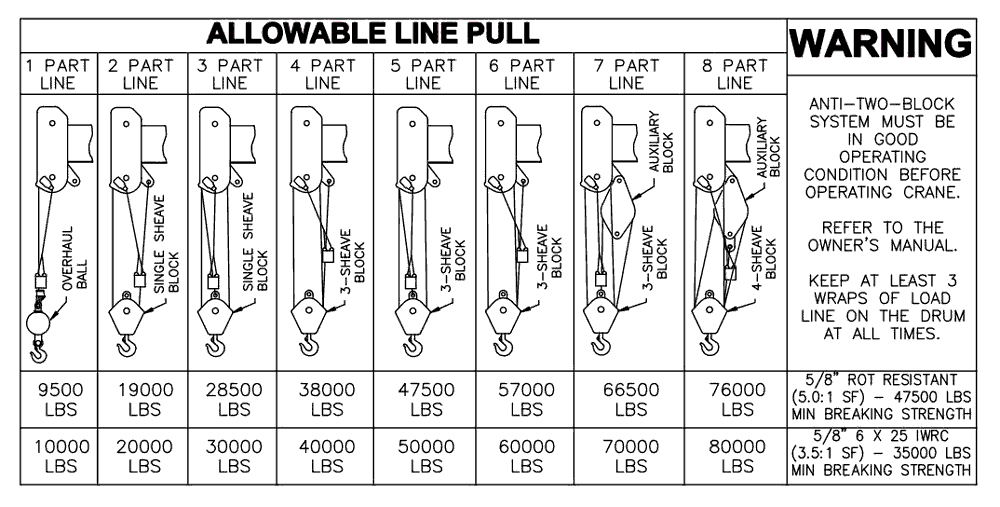

Manitex 40124S Allowable Line Pull Chart

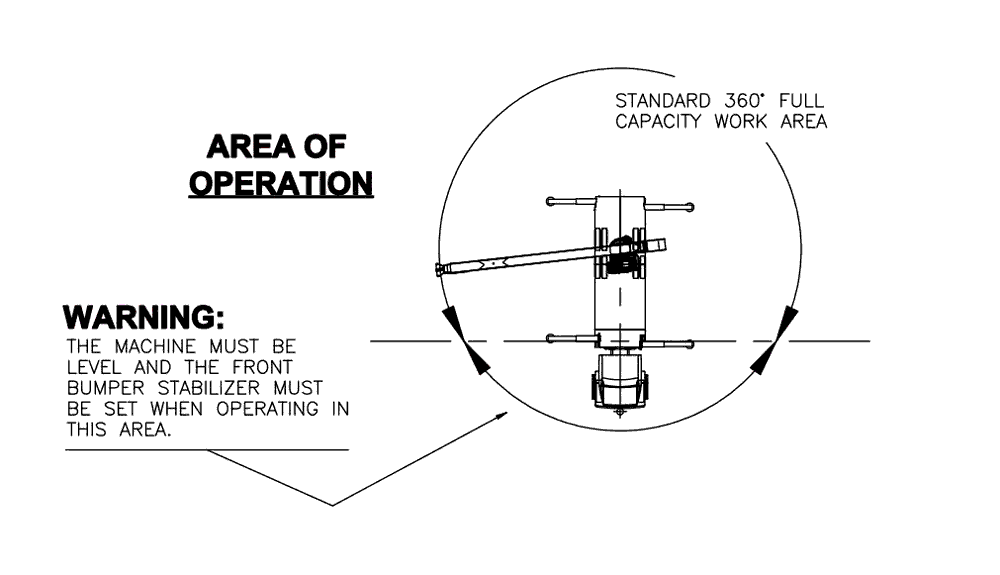

Manitex 40124S Area Of Operation


Manitex 40124S Load Chart Intermediate Extended Outriggers


Manitex 40124S Range Diagram Fully Retracted Outriggers


Manitex 40124S Load Chart Fully Extended Outriggers


Manitex 40124S Range Diagram Fully Extended Outriggers


Manitex 40124S Jib Load Chart Fully Extended Outriggers
