40 Ton Manitex 40124SHL
Boom Truck
Unit: 10064
$435,900
Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerManitex
Crane Model40124SHL
Capacity40 ton
Boom Length124'
Jib Length55'
Total Tip Height189'
Outriggers4 Hydraulic Out/Down Outriggers with Intermediate and Fully Retracted settings
Body10' Heavy Duty Steel Bed
Crane WarrantyStandard Manitex Factory Warranty
Additional Crane Features

INCLUDED OPTIONS

  • 55 FT 2-SECTION JIB
  • TILTING ENCLOSED CAB W/ HEAT AND A/C
  • FRONT HYDRAULIC STABILIZER
  • 400' 5/8" ROTATION RESISTANT WIRE ROPE
  • (4) 31" x 31" CRIB PLATES
  • (2) CRIB PLATE HOLDING RACKS (EACH HOLDS 2)
Truck
ManufacturerKenworth
Truck ModelT880
EngineCummins ISX15 Turbo Diesel
Horsepower450
TransmissionFuller RTO-16913A 13 Speed Manual
GVW89000
WarrantyStandard Kenworth Factory Warranty
Additional Truck Features
  • Alcoa polished aluminum wheels
  • Full double frame
  • 100 gallon fuel tank
  • Air ride driver's seat
  • AM/FM/USB radio w/ Bluetooth
Description
Year2018

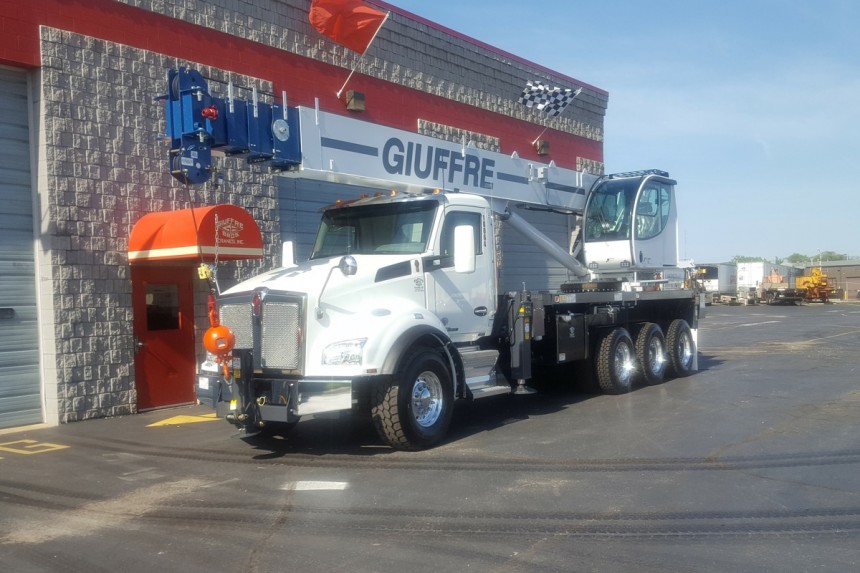

DescriptionManitex 40124SHL 40 Ton on 2017 Kenworth T880 Tri-drive
StatusNew
Features

CRANE

  • MANITEX 40124SHL,
  • 40 TON CAPACITY W/ REAR MOUNTED RIDER SEAT,
  • 124 FT 5-SECTION TELESCOPIC BOOM,
  • 5-SHEAVE QUICK REEVE BOOM HEAD,
  • 189' TIP HEIGHT WITH 55 FT JIB,
  • TILTING ENCLOSED CAB W/ HEAT AND A/C,
  • FREE SWING OPTION WITH FOOT BRAKE,
  • 380' 5/8" ROTATION RESISTANT WIRE ROPE,
  • PILOT OPERATED DUAL AXIS CONTROLLERS,
  • LMI CAPACITY ALERT WITH VISUAL DISPLAY & OVERLOAD SHUT-OFFS,
  • HARDWIRED ANTI-TWO BLOCK SYSTEM,
  • 360 DEGREE AREA OF OPERATION W/ CONTINUOUS ROTATION,
  • 4 HYDRAULIC OUT-AND-DOWN OUTRIGGERS,
  • LOAD CHARTS FOR FULLY EXTENDED/INTERMEDIATE/RETRACTED OUTRIGGERS,
  • 10 FT BED & RETRACTABLE LADDERS,
  • PAINTED STD MANITEX COLORS,
  • ALL STANDARD EQUIPMENT,
  • STANDARD MANITEX FACTORY WARRANTY.


TRUCK

  • NEW 2018 KENWORTH T880,
  • CUMMINS ISX15 - 450 HP TURBO DIESEL ENGINE W/ INTEBRAKE,
  • 20,000# FRONT AXLE,
  • 69,000# TRI-DRIVE REAR AXLES,
  • DANA T69-170HP TRIDEM REAR AXLES,
  • 4.10 REAR AXLE RATIO,
  • TAPERLEAF FRONT SPRINGS,
  • FULLER RTLO16918B 18 SPEED MANUAL TRANSMISSION WITH PUMP AND OIL COOLER,
  • 1650 LB-FT TORQUE,
  • 425-65R22.5 20PR FRONT TIRES,
  • 11R-22.5 16 PLY RADIAL REAR TIRES,
  • ALCOA POLISHED ALUMINUM FRONT AND REAR WHEELS,
  • FULL DOUBLE STEEL FRAME,
  • AIR BRAKES W/ ANTI-LOCK BRAKING SYSTEM & BENDIX AIR DRYER,
  • DUAL POWER STEERING GEARS,
  • 3 PACCAR GP31 BATTERIES 2100 C.C.A,
  • FRONT TOW HOOKS,
  • 120V - 1500W IMMERSION BLOCK HEATER,
  • BATTERY JUMPER TERMINAL,
  • PACCAR 12 VOLT STARTER,
  • VERTICAL EXHAUST,
  • AIR CONDITIONING,
  • AIR HORN,
  • PACCAR 160 AMP ALTERNATOR,
  • 100 GAL ALUMINUM FUEL TANK (RH),
  • 1-11 GALLON D.E.F. TANK,
  • AM/FM/WB/USB RADIO w/ BLUETOOTH,
  • AIR RIDE DRIVER'S SEAT,
  • HEATED STAINLESS STEEL MIRRORS,
  • ONE PIECE CURVED WINDSHIELD,
  • POWER WINDOWS PASSENGER SIDE,
  • COMPLETE GAUGE PACKAGE,
  • PAINTED KENWORTH WHITE (L0006),
  • STD KENWORTH FACTORY WARRANTY.
Specifications
// This is the youtube video URL: http://www.youtube.com/watch?v=nOHHta68DdU $code = "aZQPES8E6d8"; // Get video feed info (xml) from youtube, but only the title | http://php.net/manual/en/function.file-get-contents.php $video_feed = file_get_contents("http://gdata.youtube.com/feeds/api/videos?v=2&q=".$code."&max-results=1&fields=entry(title)&prettyprint=true"); // xml to object | http://php.net/manual/en/function.simplexml-load-string.php $video_obj = simplexml_load_string($video_feed); // Get the title string to a variable $video_str = $video_obj->entry->title; // Output echo $video_str;
Dimensions

40124SHL Dimensions with Chassis

Load Charts

Load Chart

Manitex 40124 SHL Range Diagram Fully Retracted Outriggers


Manitex 40124 SHL Load Chart Fully Retracted Outriggers


Manitex 40124 SHL Allowable Line Pull Chart


Manitex 40124 SHL Area Of Operation


Manitex 40124 SHL Range Diagram Intermediate Extended Outriggers


Manitex 40124 SHL Load Chart Intermediate Extended Outriggers


Manitex 40124 SHL Load Chart Fully Extended Outriggers


Manitex 40124 SHL Range Diagram Fully Extended Outriggers


Manitex 40124 SHL Jib Load Chart Fully Extended Outriggers
