45 Ton Manitex TC45142SHL
Boom Truck
Unit: 100XX

Regular Price: $499,900

Special Price $479,900

Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerManitex
Crane ModelTC45142SHL
Capacity45 Tonton
Boom Length142'
Jib Length55'
Total Tip Height207'
Outriggers4 Hydraulic Out/Down Outriggers with Intermediate and Fully Retracted settings
BodyDiamond Plate Aluminum decking
Crane WarrantyStandard Manitex Factory Warranty
Additional Crane Features
  • Tilting cab w/ heater and air conditioning
  • Hydraulic front stabilizer
  • Engine management system
  • Load charts for intermediate and fully retracted
  • 102" extra wide platform
Truck
ManufacturerPeterbilt
Truck Model365
EngineCummins ISX12 Turbo Diesel
Horsepower500
TransmissionFuller FO16E308LL-VCS 10-Speed Ultrashift Plus Manual Transmission
GVW102500
WarrantyStandard Peterbilt Warranty
Additional Truck Features
  • Engine Block Heater
  • Power Locks/Windows
  • Bendix Smart ATC Traction Control
  • Bluetooth and USB Radio
Description
Year2017
DescriptionManitex TC45142SHL 45 Ton on 2017 Peterbil 365 Tridem w/ tag axle
StatusNew
Features

CRANE

  • MANITEX TC450142SHL
  • 45 TON CAPACITY @ 6FT RADIUS
  • 142 FT 5-SECTION TELESCOPIC BOOM
  • 6-SHEAVE QUICK REEVE BOOM HEAD
  • 207 FT TIP HEIGHT WITH 55 FT JIB
  • TILTING CAB WITH HEATER, AIR CONDITIONER UPPER CAB GUARD & WINDSHIELD COVER
  • 500' 5/8" ROTATION RESISTANT WIRE ROPE
  • COMBINED FREE SWING/NO FREE SWING
  • 2-SPEED WINCH MAX LINE SPEED 453 FPM
  • LMI SYSTEM W/ CRANE FUNCTION SHUT- OFFS FOR OVERLOAD PROTECTION WITH GRAPHIC VISUAL DISPLAY MONITOR
  • 360 DEGREE CONTINUOUS ROTATION
  • HARDWIRED ATB WITH LOCKOUT PROTECT
  • 4 HYDRAULIC OUT-&-DOWN OUTRIGGERS
  • LOAD CHARTS FOR FULLY EXTENDED / INTERMEDIATE / RETRACTED OUTRIGGERS
  • DIAMOND PLATED ALUMINUM DECKING
  • PAINTED STD MANITEX COLORS
  • ALL STANDARD EQUIPMENT
  • STANDARD MANITEX FACTORY WARRANTY


TRUCK

  • NEW 2017 PETERBILT MODEL 365
  • 500HP CUMMINS ISX12 TURBO-DIESEL ENGINE WITH JACOBS C-BRAKE
  • 102,500 LB G.V.W.R.
  • 20,000 LB FRONT STEER AXLE
  • 69,000 LB TRI-DEM REAR AXLE
  • 13,500 LB SELF-STEERING TAG AXLE
  • DANA SPICER 20K FRONT AND T69 REAR AXLE SUSPENSION SYSTEM
  • FULL STEEL INNER FRAME LINER
  • AIR BRAKES W/ ANTI-LOCK BRAKING
  • BENDIX SMART ATC TRACTION CONTROL
  • AIR TRAC TRI-DRIVE 66K LBS WITH 2 DASH MOUNTED DUMP VALVES
  • FULLER FO16E308LL-VCS 10-SPEED ULTRASHIFT PLUS MANUAL TRANSMISSION
  • 1650 LB-FT TORQUE
  • 425-65R22.5 FRONT TIRES
  • 11R-22.5 16 PLY REAR TIRES
  • ALUMINUM FRONT AND REAR WHEELS
  • TRI-DRIVE DIFFERENTIAL LOCKING
  • SHEPPARD M100 POWER STEERING
  • 3 OPTIMA BATTERIES 2700 CCA
  • PACCAR 160 AMP ALTERNATOR
  • PHILLIPS IMMERSION TYPE ENGINE BLOCK HEATER 110-120V
  • PACCAR 12 VOLT STARTER
  • 26" ALUMINUM 110 GAL FUEL TANK (LH)
  • 7 GAL D.E.F. TANK MOUNTED (RH)
  • PETERBILT HIGH BACK AIR RIDE DRIVER AND ULTRARIDE PASSENGER SEATS
  • POWER LOCKS/WINDOWS BOTH SIDES
  • 24.5" CHROME AIR HORN W/ SHIELD
  • DUAL 7X16 HEATED MIRRORS W/ DUAL 8" STAINLESS CONVEX MIRRORS
  • CONCERTCLASS AUDIO SYSTEM W/ BT
  • AM/FM/WB AUDIO W/ BT PHONE AND USB
  • OUTSIDE STAINLESS STEEL SUN VISOR
  • FIRE EXTINGUISHER AND TRIANGLE KIT
  • TINTED WINDOWS SIDES AND REAR
  • BRIGHT BEZEL GAUGES
  • PAINTED PETERBILT/DUPONT WHITE
  • STD KENWORTH FACTORY WARRANTY
Load Chart

Manitex TC45142 SHL - Range Diagram Mid-Extend Outriggers


Manitex TC45142 SHL - Load Chart Mid-Extend Outriggers


Manitex TC45142 SHL - Range Diagram Full Extend Outriggers

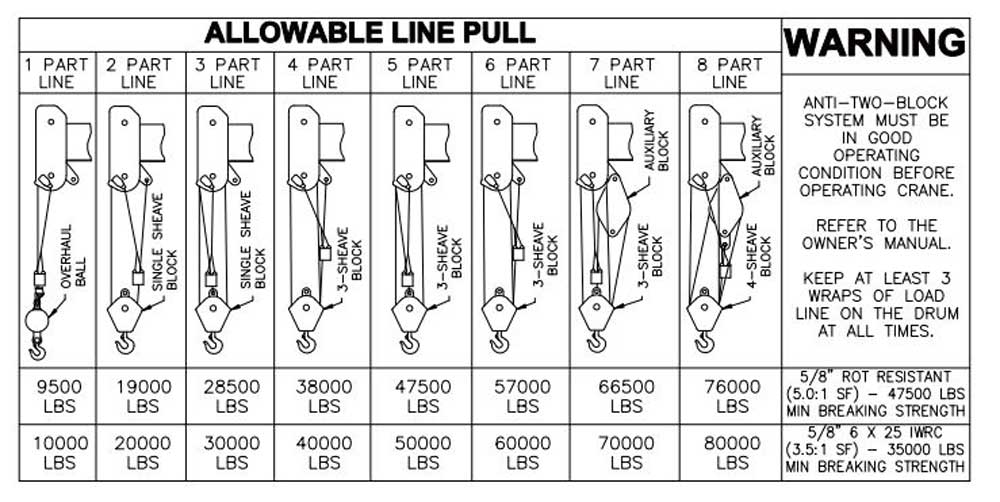

Manitex TC45142 SHL - Line Pull Chart


Manitex TC45142 SHL - Jib Chart Full Extend Outriggers


Manitex TC45142 SHL - Area Of Operation


Manitex TC45142 SHL - Load Chart Full Extend Outriggers
