50 Ton Manitex 50155SHL
Boom Truck
Unit: 10254
$562,900
Next Step..

For more Information:

Call

877-321-3710
or Click Below!
$
2
Apply for financing!
3
Give me a value on on my trade-in!
Request Info!
Specifications
Crane
ManufacturerManitex
Crane Model50155SHL
Capacity50 Tonton
Boom Length155'
Jib Length39'
Total Tip Height204'
Outriggers4 Hydraulic Out/Down Outriggers with Intermediate and Fully Retracted settings
BodyDiamond Plate Aluminum decking
Crane WarrantyStandard Manitex Factory Warranty
Additional Crane Features
  • Tilting cab w/ heater and air conditioning
  • Hydraulic front stabilizer
  • SHL Counterweight Package
  • 39'  Fixed Offsetting Jib
  • 35 Ton 3-sheave Block for 2-7 part line
  • 48" Deck Mounted Aluminum Box
Truck
ManufacturerPeterbilt
Truck Model567
EngineCummins ISX12 Turbo Diesel
Horsepower500
TransmissionFuller 10-Speed 8LL Manual Transmission
GVW86000
WarrantyStandard Peterbilt Warranty
Additional Truck Features
  • Engine Block Heater
  • Power Locks/Windows
  • Bendix Smart ATC Traction Control
  • Bluetooth and USB Radio
Description
Year2019
DescriptionManitex 50155SHL 50 Ton on 2019 Peterbilt 567 Tridem w/ tag axle
StatusNew
Features

CRANE

  • MANITEX 50155SHL
  • 50 TON CAPACITY CRANE
  • 155 FT 5-SECTION TELESCOPIC BOOM
  • 4-SHEAVE QUICK REEVE BOOM HEAD
  • 204 FT TIP HEIGHT WITH 39 FT JIB
  • TILTING CAB WITH HEATER, AIR CONDITIONER UPPER CAB GUARD & WINDSHIELD COVER
  • 500' 5/8" ROTATION RESISTANT WIRE ROPE
  • COMBINED FREE SWING/NO FREE SWING
  • 2-SPEED WINCH MAX LINE SPEED 453 FPM
  • LMI SYSTEM W/ CRANE FUNCTION SHUT-OFFS FOR OVERLOAD PROTECTION WITH GRAPHIC VISUAL DISPLAY MONITOR
  • 360 DEGREE CONTINUOUS ROTATION
  • HARDWIRED ATB WITH LOCKOUT PROTECT
  • 4 REMOTE CONTROLLED HYDRAULIC OUT-&-DOWN OUTRIGGERS
  • LOAD CHARTS FOR FULLY EXTENDED / INTERMEDIATE / RETRACTED OUTRIGGERS
  • 102" WIDE DIAMOND PLATED ALUM DECKING
  • PAINTED STD MANITEX COLORS
  • ALL STANDARD EQUIPMENT
  • STANDARD MANITEX FACTORY WARRANTY


TRUCK

  • NEW 2019 PETERBILT MODEL 567
  • 500HP CUMMINS ISX12 TURBO-DIESEL ENGINE WITH JACOBS C-BRAKE
  • 86,000 LB G.C.W.
  • 20,000 LB FRONT STEER AXLE
  • 69,000 LB TRI-DEM REAR AXLE
  • 13,500 LB SELF-STEERING TAG AND PUSHER AXLES INCLUDED (27K TOTAL)
  • TRI-DRIVE DIFFERENTIAL AND CONT TRAC FULL LOCKING REAR AXLES
  • FULL STEEL INNER FRAME LINER
  • AIR BRAKES W/ ANTI-LOCK BRAKING
  • BENDIX SMART ATC TRACTION CONTROL
  • AIR TRAC TRI-DRIVE 66K LBS WITH DASH MOUNTED DUMP VALVE
  • EATON RTO-16908LL 10-SPEED MANUAL TRANSMISSION
  • 1645 LB-FT TORQUE
  • 425-65R22.5 FRONT TIRES
  • 11R-22.5 16 PLY REAR TIRES
  • 275/70R22.5 PUSHER/TAG TIRES
  • ALUMINUM FRONT AND REAR WHEELS
  • BENDIX AIR DRYER W/ HEATER
  • 3 PACCAR BATTERIES 2775 CCA
  • PACCAR 200 AMP ALTERNATOR
  • IMMERSION TYPE ENGINE BLOCK HEATER
  • OIL PAN HEATER (120V)
  • PACCAR 12 VOLT STARTER
  • 26" ALUMINUM 110 GAL FUEL TANK (LH)
  • 7 GAL D.E.F. TANK MOUNTED (RH)
  • CAB AIR SUSPENSION
  • 4.10 REAR AXLE RATIO / 70MPH MAX SPD
  • PETERBILT HIGH BACK AIR RIDE DRIVER AND ULTRARIDE PASSENGER SEATS
  • POWER LOCKS/WINDOWS BOTH SIDES
  • 24.5" CHROME AIR HORN W/ SHIELD
  • DUAL 7X16 HEATED MIRRORS W/ DUAL 8" STAINLESS CONVEX MIRRORS
  • CONCERTCLASS AUDIO SYSTEM W/ BT
  • AM/FM/WB AUDIO W/ BT PHONE AND USB
  • OUTSIDE STAINLESS STEEL SUN VISOR
  • FIRE EXTINGUISHER AND TRIANGLE KIT
  • TINTED WINDOWS SIDES AND REAR
  • BRIGHT BEZEL FULL GAUGE PACKAGE
  • PAINTED PETERBILT WHITE (L0006)
  • STD KENWORTH FACTORY WARRANTY
Load Chart

Manitex 50155 SHL Jib Chart Fully Extended Outriggers


Manitex 50155 SHL Load Chart Mid Extended Outriggers


Manitex 50155 SHL Area Of Operation

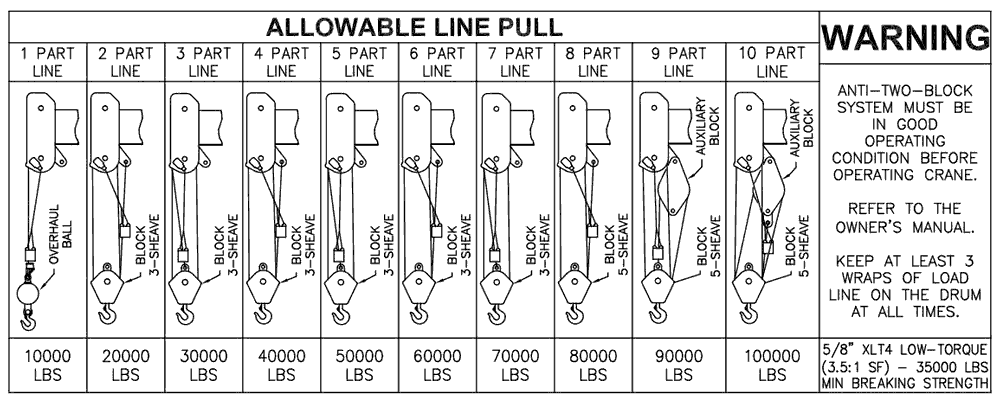

Manitec 50155 SHL Allowable Line Pull Chart


Manitec 50155 SHLRange Diagram


Manitex 50155 SHL Load Chart 38'-97' Fully Extended Outriggers


Manitex 50155 SHL Load Chart 109'-155' Fully Extended Outriggers
