Model Information
Model 22101 S Single Axle
Capacity 22 Ton
Boom Length 4-SECTION / 30’ - 101’
Tip Height 111’ - 140’
Manitex 22101S Single Axle Area Or Operation
Manitex 22101S Single Axle Allowable Line Pull Chart
Manitex 22101S Single Axle Range Diagram Fully Extended Outriggers
Manitex 22101S Single Axle Range Diagram Intermediate Extended Outriggers
Manitex 22101S Single Axle Load Chart Intermediate Extended Outriggers
Manitex 22101S Single Axle Load Chart Fully Retracted Outriggers

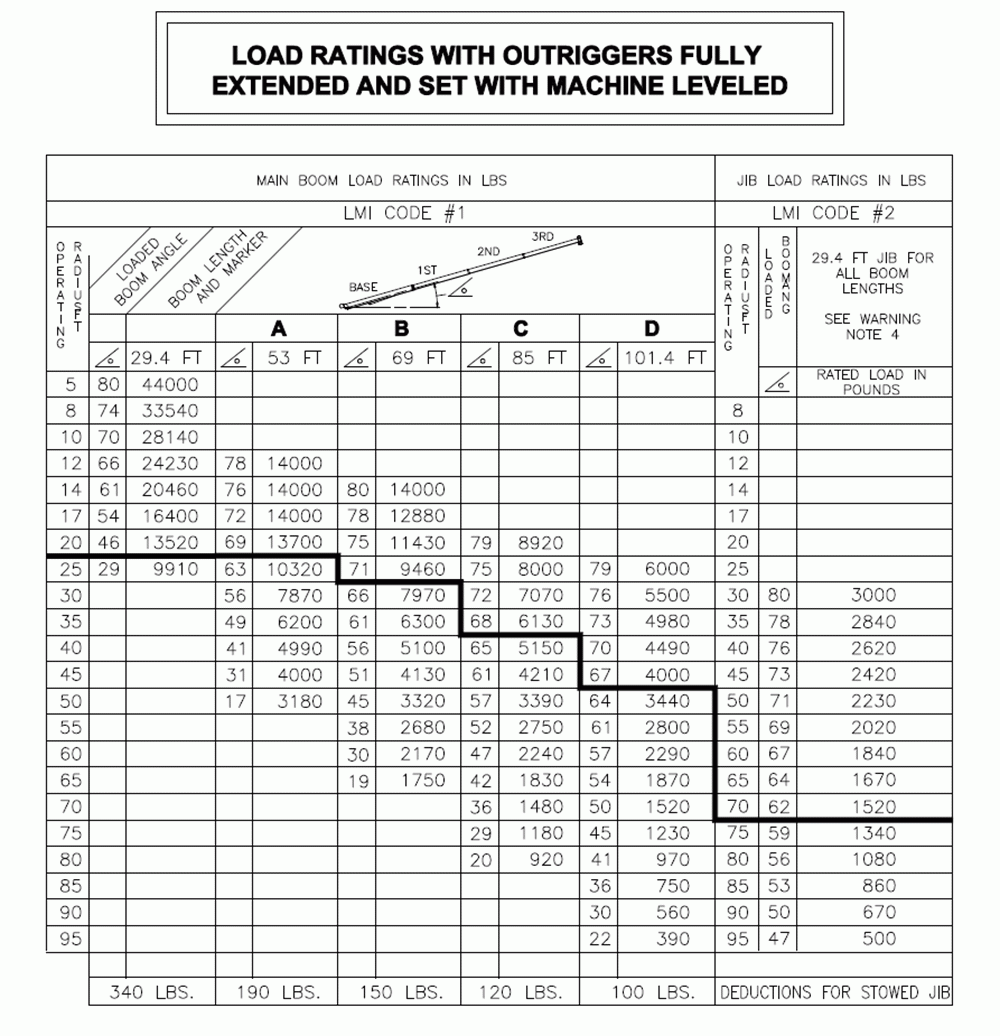

Manitex 22101S Single Axle Load Chart Fully Extended Outriggers
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
