Model Information
Model 2277 S
Capacity 22 Ton
Boom Length 3-SECTION / 29’ - 77’
Tip Height 86’ - 116'
Download / Print (PDF)
Manitex 2277S Range Diagram Mid Extended Outriggers
Manitex 2277S Area of Operation
Manitex 2277S Load Chart Fully Retracted Outriggers
Manitex 2277S Load Chart Fully Extended Outriggers
Manitex 2277S Allowable Line Pull Chart
Manitex 2277S Range Diagram Fully Retracted Outriggers
Manitex 2277S Load Chart Fully Extended Outriggers

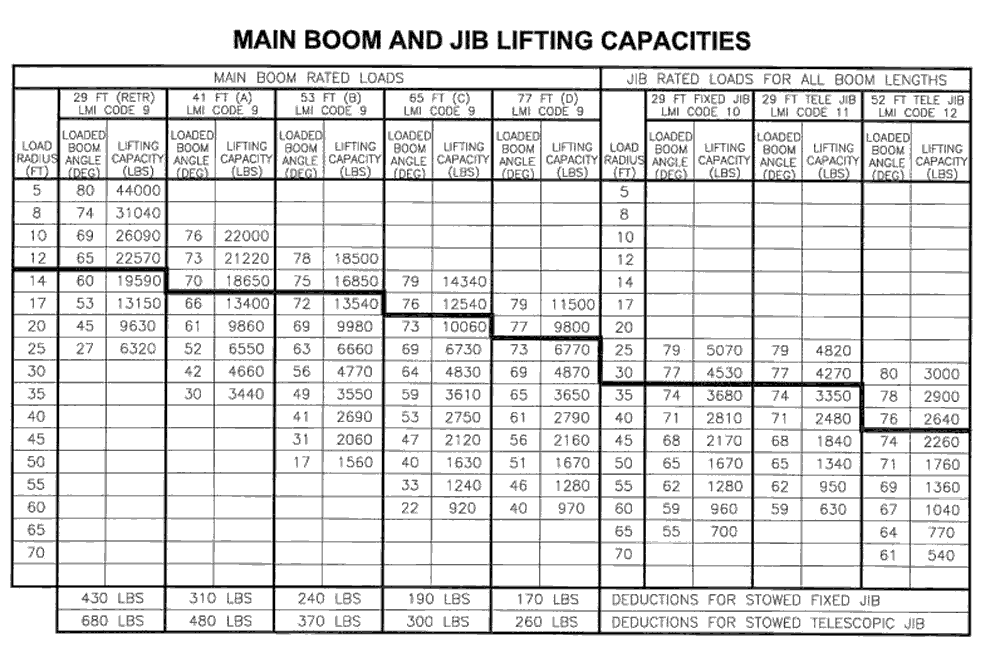

Manitex 2277S Load Chart Mid Extended Outriggers
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
