Model Information
Model 3071 C
Capacity 30 ton
Boom Length 3-SECTION / 28’ - 71’
Tip Height 82’
Download / Print (PDF)
Manitex 3071 C Range Diagram - Out & Down Outriggers Mid Extended
Manitex 3071 C Allowable Line Pull Chart
Manitex 3071 C Range Diagram - Out & Down Outriggers Fully Extended
Manitex 3071 C Load Chart - Out & Down Outriggers Fully Retracted
Manitex 3071 C Range Diagram - Out & Down Outriggers Fully Retracted
Manitex 3071 C Load Chart - A-Frame Front Outriggers
Manitex 3071 C Load Chart - Out & Down Outriggers Fully Extended

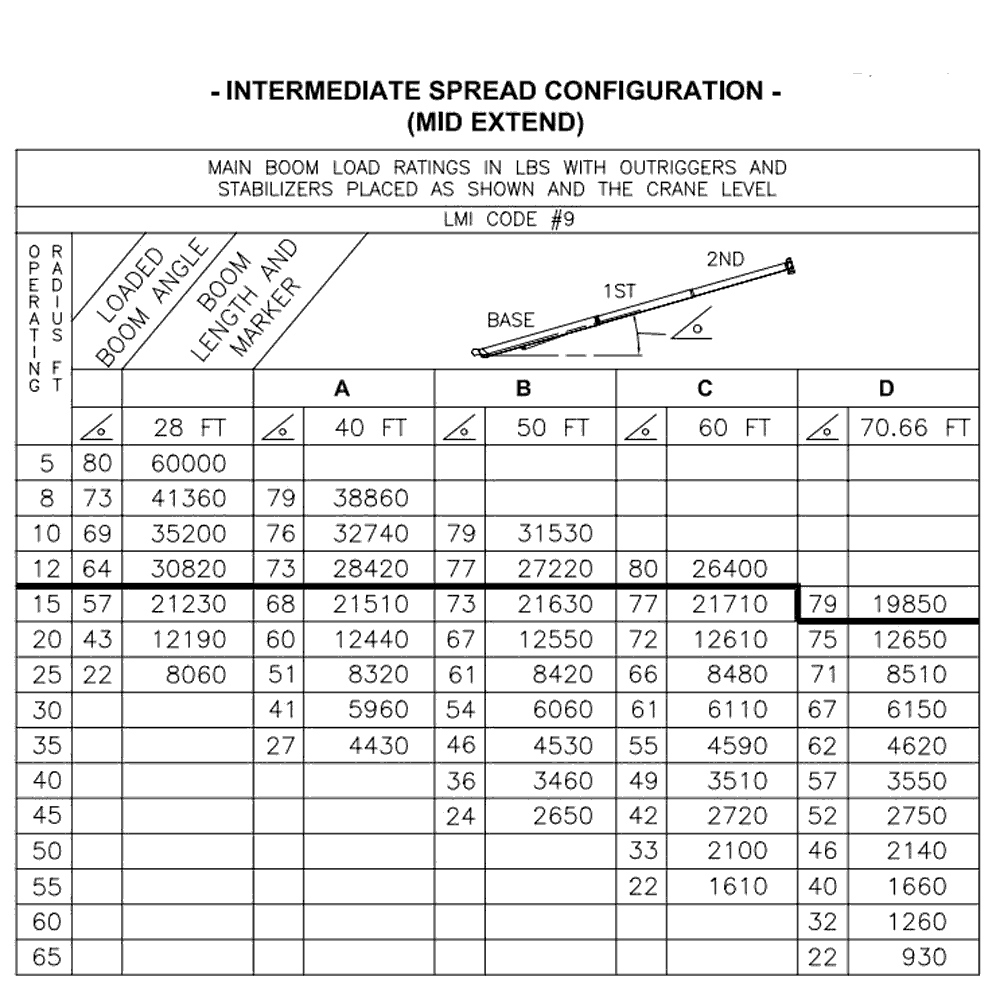

Manitex 3071 C Load Chart - Out & Down Outriggers Mid Extended
Manitex 3071 C Area Of Operation
Manitex 3071 C Range Diagram - A-Frame Front Outriggers
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
