Model Information
Model 40100 SHL
Capacity 40 ton
Boom Length 4-SECTION / 31’ - 100’
Tip Height 109’ - 165’
Download / Print (PDF)
40100 SHL - Allowable Line Pull Chart
40100 SHL - Load Chart (Fully Retracted Outriggers)
40100 SHL - Area Of Operation
40100 SHL - Range Diagram (Fully Extended Outriggers)
40100 SHL - Range Diagram (Intermediate Spread Outriggers)
40100 SHL - Load Chart (Intermediate Outriggers)

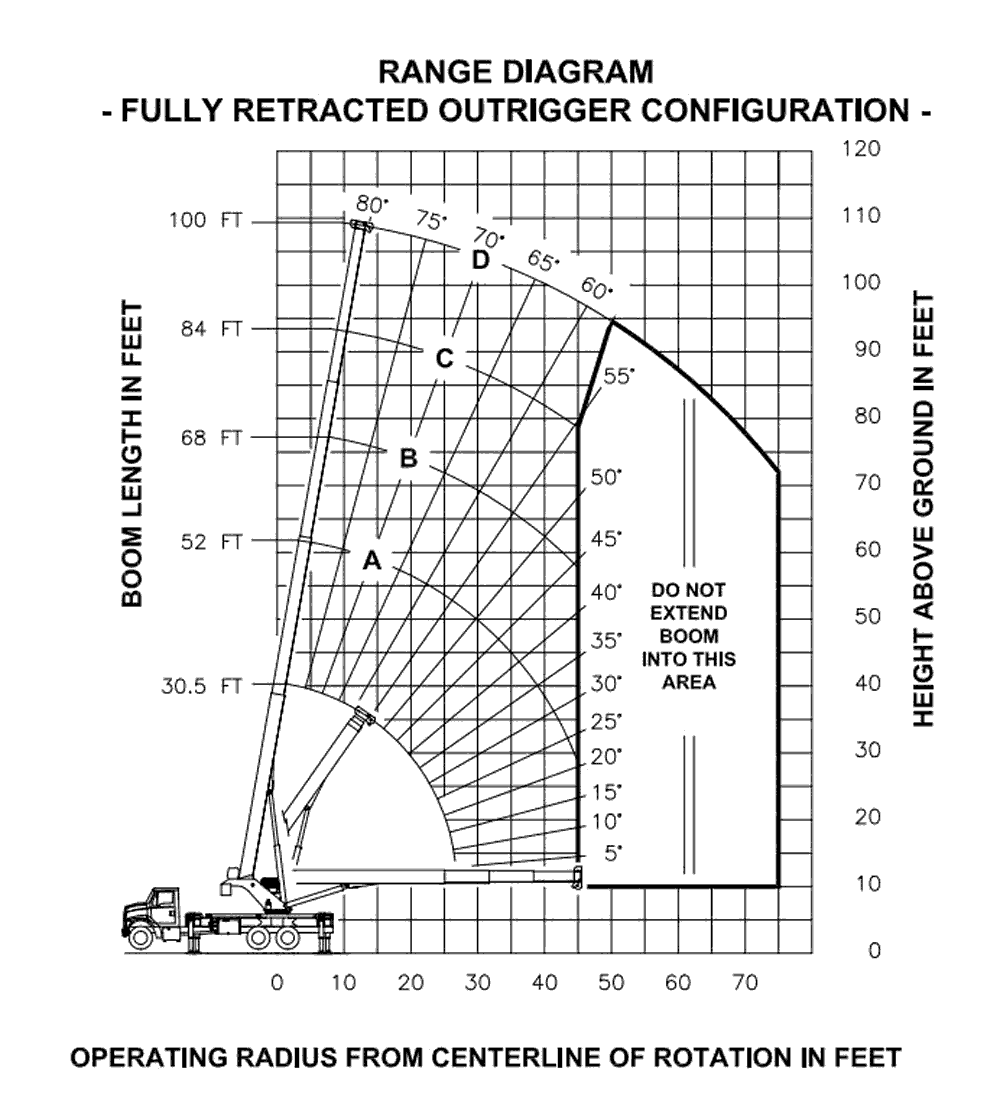

40100 SHL - Range Diagram (Fully Retracted Outriggers)
40100 SHL - Load Chart (Fully Extended Outriggers)
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
