Model Information
| Model | 4077 SHL |
| Capacity | 40 ton |
| Boom Length | 3-SECTION / 31’ - 77’ |
| Tip Height | 87’ |
Download / Print (PDF)
- Manitex-4077SHL-loadchart.pdfManitex 4077SHL - Load Chart (Intermediate Outrigger spread)
Manitex 4077SHL - Range Diagram (Intermediate Outrigger spread)
Manitex 4077SHL - Allowable Line Pull Chart
Manitex 4077SHL - Range Diagram (Fully Extended Outriggers)

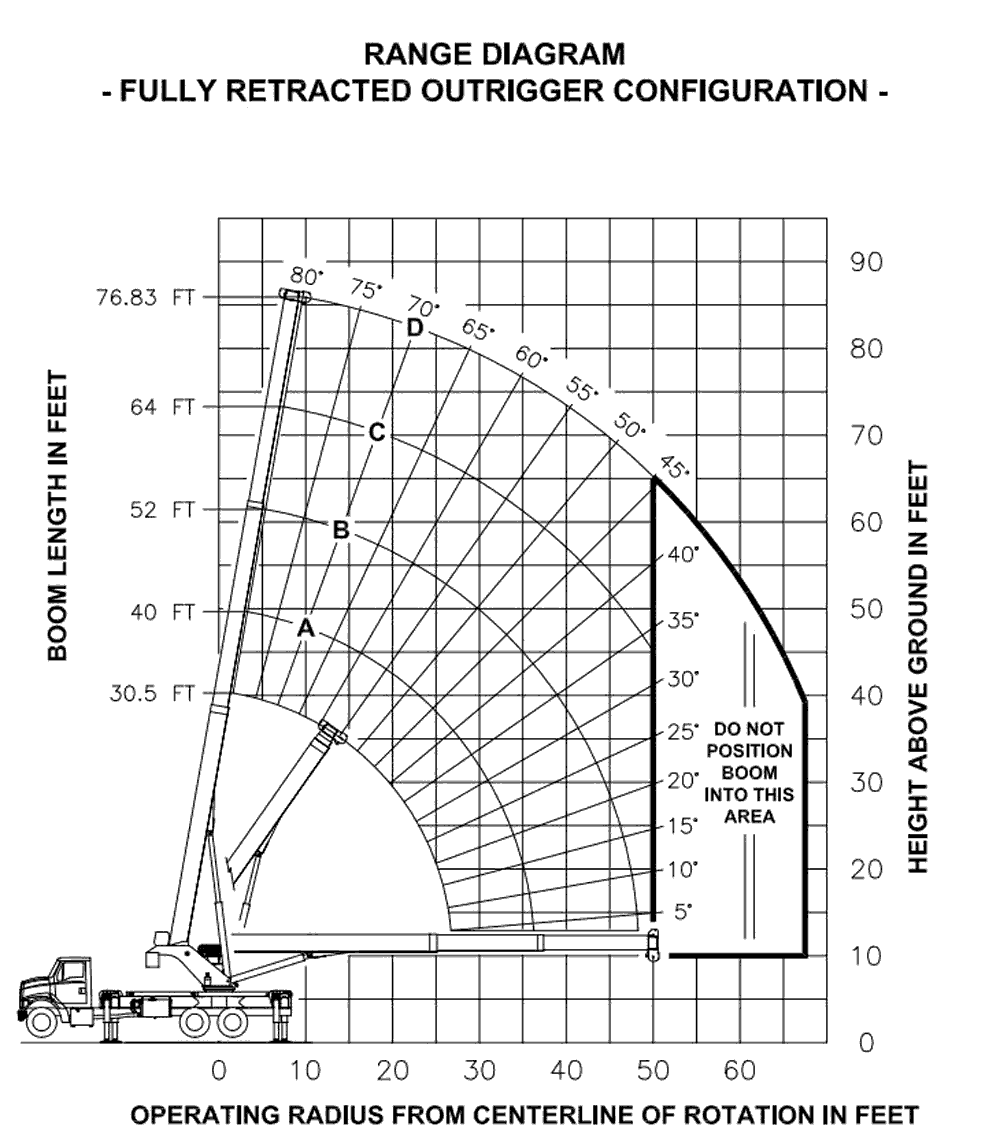

Manitex 4077SHL - Range Diagram (Fully Retracted Outriggers)
Manitex 4077SHL - Load Chart (Fully Retracted Outriggers)

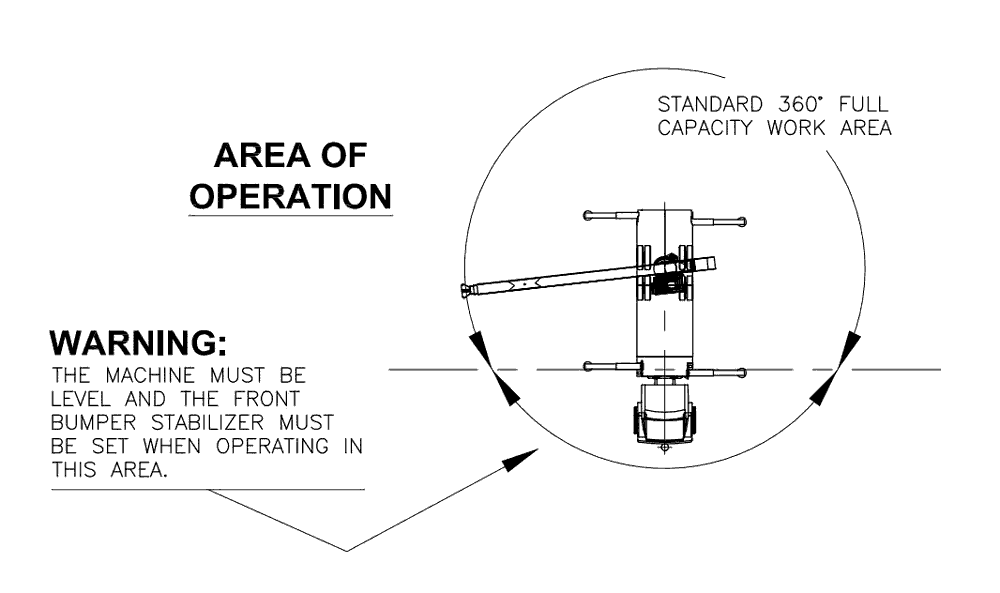

Manitex 4077SHL - Area of Operation
Manitex 4077SHL - Load Chart (Fully Extended Outriggers)
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
