CRANE

• MANITEX 110-35 E

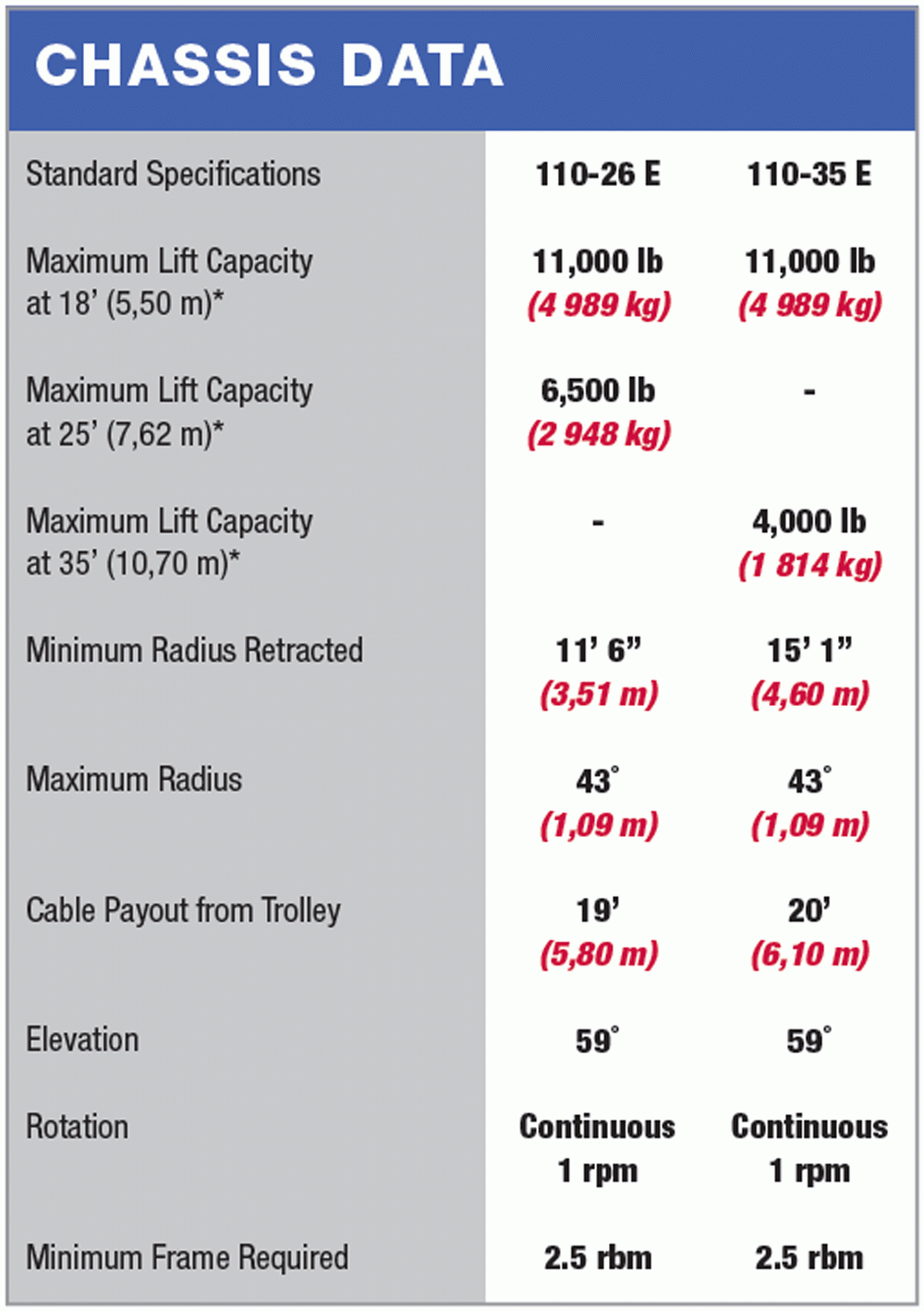

• MAX LIFT CAPACITY @ 18' IS 11,000LBS MAX LIFT @ 35' IS 4,000 LBS

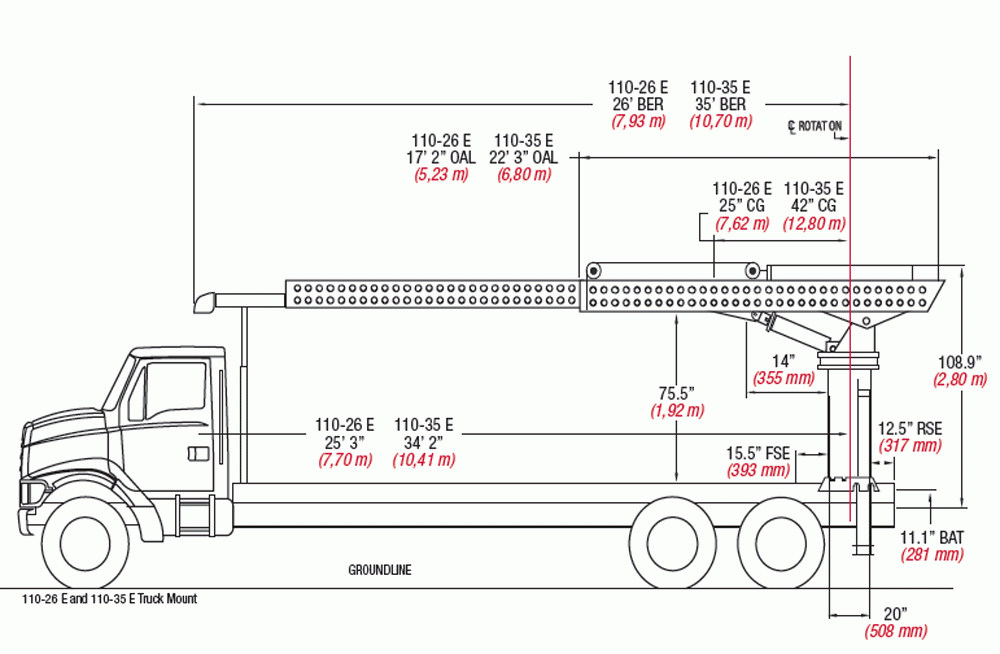

• 22' 3" OVERALL RETRACTED LENGTH
• 34' 2" WITH HOOK OUT, AND 14" WITH HOOK IN
• BOOM EXTENSION RADIUS OF 35'
• MINIMUM RADIUS RETRACTED 15'1"
• MAXIMUM RADIUS 43'
• CONTINUOUS BOOM ROTATION
• PROVEN PISTOL GRIP RADIO REMOTE CNTRLS
• A-FRAME STYLE HYDRAULIC OUTRIGGERS @ 15'6"
• BOX TYPE BOOM CONSTRUCTION FOR INCREASED STRENGTH / WEIGHT RATIO
• DUAL ELEVATE CYLINDERS
• LOW PRESSURE, OPEN CENTERED HYDRAULIC VALVES INCREASE RELIABILITY AND REDUCE MAINTENANCE
• FLOW DIVIDER ALLOWS OPERATOR SEVERAL FUNCTIONS SIMULTANEOUSLY
• ALL STANDARD EQUIPMENT - 12 MONTH
• STANDARD MANITEX FACTORY WARRANTY

TRUCK

• NEW 2022 FREIGHTLINER 114SD
• DETROIT DD13 12.8L 470 HP @ 1625 RPM, 1900 GOV RPM, 1650 LB-FT @975 RPM
• 66,000 LB G.V.W.R.
• 46,000 LB TANDEM
• 20,000 LB FRONT STEER AXLE
• HENDRICKSON PRIMAXX REAR AIR SUSP.
• ALLISON 4500 RDS-P RUGGED DUTY AUTOMATIC TRANSMISSION
• DIFFERENTIAL LOCK TANDEM AXLES w/ DRIVER CONTROLLED ROCKER SWITCH
• IMMERSION TYPE BLOCK HEATER 110 - 120V
• STANDARD OIL PAN
• 425-65R22.5 20PLY FRONT TIRES
• 11R-22.5 16PLY REAR TIRES
• ALCOA POLISHED ALUMINUM WHEELS
• FULL DOUBLE FRAME W/ FULL STEEL INSERT
• AIR BRAKES w/ ABS & BENDIX SMART ATC TRACTION CONTROL & AIR DRYER & HEATER
• 3 DTNA 12V BATTERIES (3000CCA) w/ DISCONNECT & JUMPER TERMINAL
• STAINLESS STL CROWN & GRILLE
• VERTICAL CHROME RH EXHAUST STACK
• AIR CONDITIONING / CRUISE / AIR HORN
• CHROME STEEL SWEPT BACK BUMPER
• 160 AMP ALTERNATOR -STD. BRUSH
• 80 GAL ALUMINUM FUEL TANK (LH - U/C)
• DAVCO FUEL/WATER SEPARATOR WITH ESOC
• AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH
• AIR RIDE HIGH BACK DRIVER'S SEAT
• ALUMINUM CAB WITH AIR SUSPENSION
• DUAL WEST COAST STEEL MIRRORS
• ONE PIECE CURVED WINDSHIELD
• POWER DOOR LOCKS & POWER WINDOWS
• EXTERIOR STAINLESS STEEL SUNVISOR
• COMPLETE GAUGE PACKAGE
• PAINTED FREIGHTLINER WHITE L0006
• STD FREIGHTLINER FACTORY WARRANTY
