CRANE

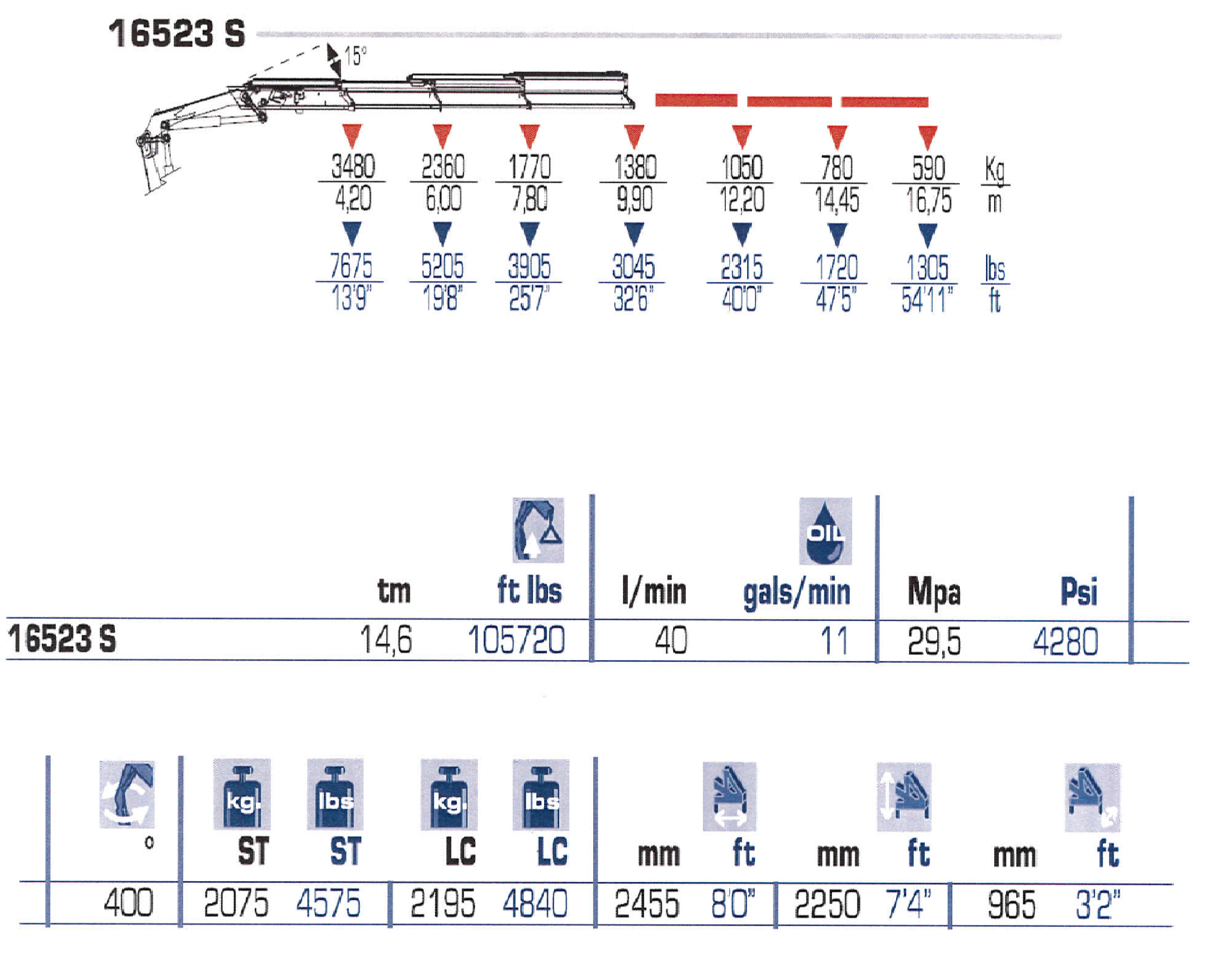

• MODEL 16523S STANDARD
• MAXIMUM LIFTING MOMENT 14.6 TM
• MAXIMUM HORIZONTAL HYDRAULIC OUTREACH: 32'6"
• MAXIMUM VERTICAL HYDRAULIC OUTREACH: 45'6"
• LONG-SHORT TELESCOPIC SYSTEM OPTIMIZES LOAD POSITIONING CLOSE TO THE COLUMN
• SECONDARY ARM WITH EXTRA 15° NEGATIVE STROKE
• CDS LOW PRESSURE CONTROL SAFETY VALVES ALLOW TOTALLY ACCURATE MOVEMENTS AND NO OSCILLATIONS
• FRONT COUPLINGS ON CYLINDERS A GUARANTEE AGAINST OIL LEAKS AND OF HIGH MECHANICAL SAFETY
• SLIDING PADS TO GUIDE AND SLIDE THE EXTENSION BOOMS
• CAST IRON ROTATION UNIT
• REGENERATIVE VALVE FOR MAXIMUM EXTENSION SPEED
• ALL STANDARD EQUIPMENT
• PAINTED STANDARD PM COLORS
• REMAINDER OF FACTORY WARRANTY- INQUIRE ON START DATE AND DATE OF ANNUAL INSPECTION

TRUCK

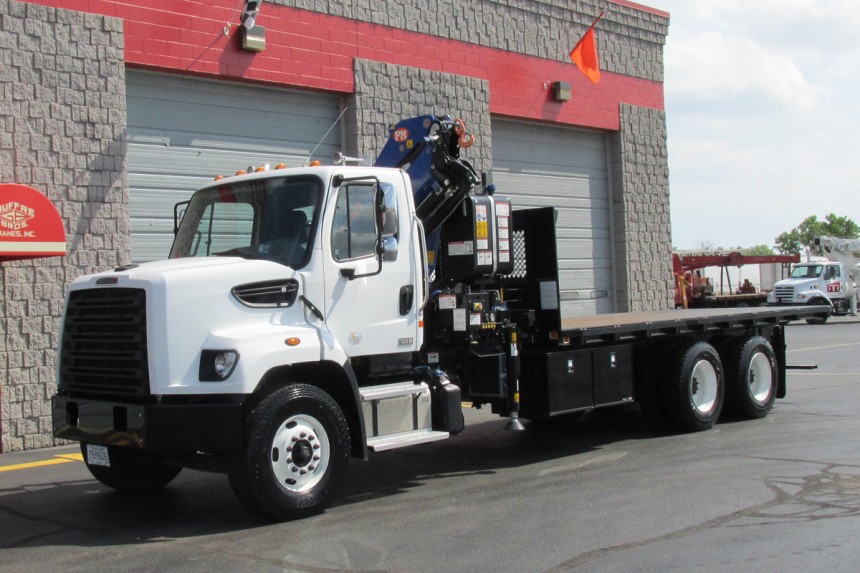

• DEMO 2015 FREIGHTLINER MODEL 108SD CONVENTIONAL
• 350HP CUMMINS ISL-350 DIESEL ENGINE WITH CUMMINS VGT
• 60,000 LB G.V.W.R.
• 20,000 LB. FRONT AXLE
• 40,000 LB. REAR AXLE
• ALLISON 3000RDS 6-SPEED AUTOMATIC TRANSMISSION
• 315 / 80R 22.5 20 PLY RADIAL TIRES
• 11R/22.5 14 PLY RADIAL REAR TIRES
• AIR BRAKES
• REINFORCED INNER FRAME
• POWER STEERING
• FRONT TOW HOOKS
• DUAL 12 VOLT 2250 CCA BATTERIES
• DUAL WEST COAST STYLE MIRRORS
• PAINTED FREIGHTLINER WHITE
• ALL STANDARD EQUIPMENT
• REMAINDER OF FACTORY WARRANTY- INQUIRE ON START DATE AND DATE OF ANNUAL INSPECTION
