CRANE

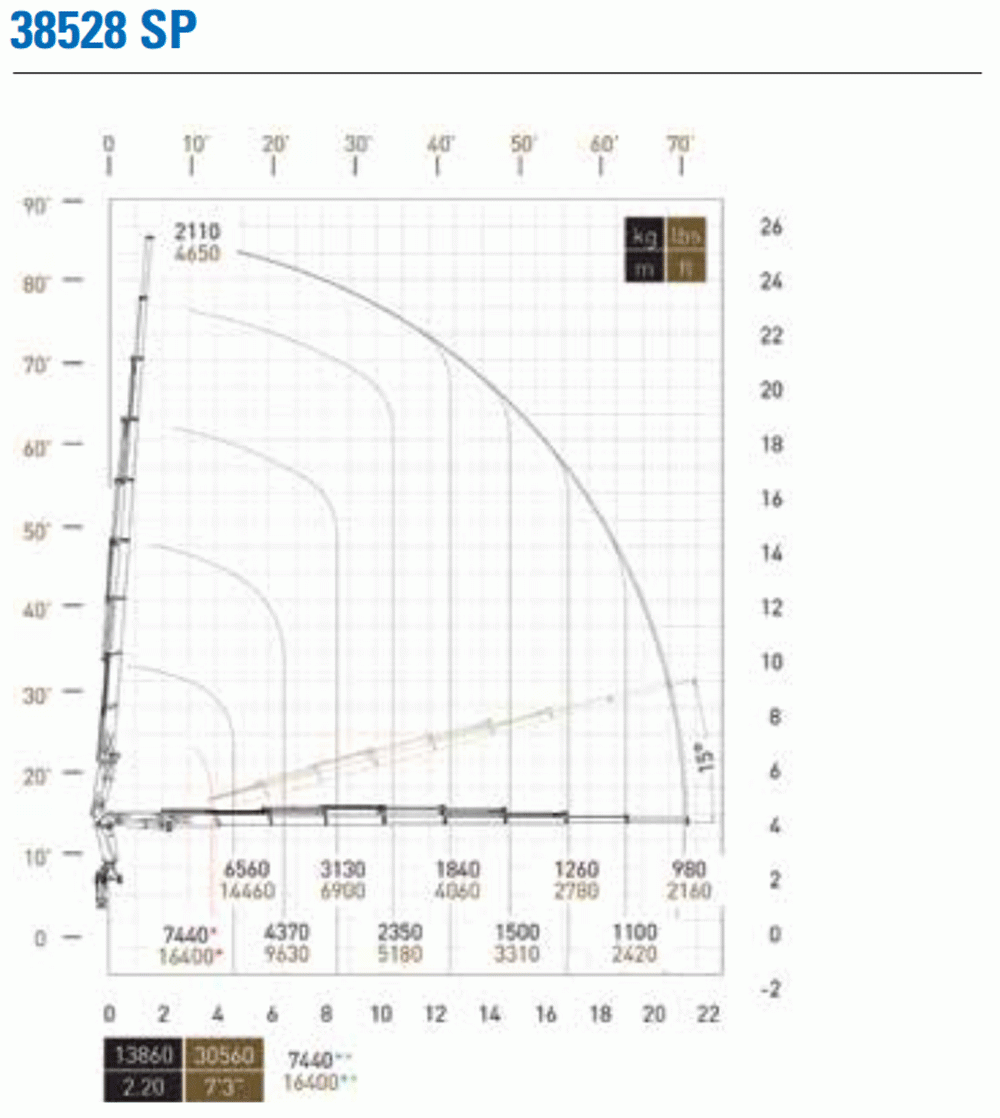

• MAC 38528 SP GOLD
• 30.5 TM MAXIMUM LIFTING MOMENT
• 71 FT MAX HORIZONTAL REACH (8 EXTENSIONS)
• 83.5 FT MAX VERTICAL REACH
• 4-FUNCTION PROPORTIONAL PRESSURE COMPENSATED CONTROL VALVE BANK
• 4-FUNCTION ADVANCE RADIO REMOTES
• HYDRAULIC STANDARD OUTRIGGER BEAMS W/ 2 FIXED STABILIZER JACKS
• ELECTRONIC OVERLOAD DEVICE W/ EMERGENCY CUT-OFF
• 150L STEEL OIL TANK
• 21' STEEL HEAVY HAULER BED
• CE STANDARD 4 METER HEIGHT SENSOR
• CABIN WARNING SIGNAL (CRANE IN FOLD)
• PAINTED STANDARD PM COLORS
• ALL STANDARD EQUIPMENT
• STANDARD MANITEX FACTORY WARRANTY

TRUCK

• NEW 2026 WESTERN STAR 4700SFA
• 470HP DETROIT DD13 TURBO DIESEL ENGINE w/ 1650 LB/FT OF TORQUE
• ALLISON 4500RDS 6-SPEED AUTOMATIC TRANSMISSION w/ PTO PROVISION
• PHILLIPS 300 WATT / 115V OIL PRE-HEATER
• PHILLIPS 1500 WATT / 115V BLOCK HEATER
• 20,000 LB FRONT STEER AXLE
• 46,000 LB REAR AXLE + 13,200 LB PUSHER
• 80,000 LB G.V.W.R.
• HENDRICKSON 46K REAR SUSPENSION
• 20K FLAT LEAF FRONT SUSPENSION
• 4.10 REAR AXLE RATIO
• FULL & INTERAXLE TANDEM LOCK VALVES
• 315/80R22.5 20 PLY RADIAL FRONT TIRES
• 11R42.5 16 PLY RADIAL REAR TIRES
• AIR BRAKES W/ WABCO 4S/4M ABS SYSTEM
• WABCO AIR BRAKES w/ HEATER & DRYER
• FULL STEEL REINFORCED FRAME
• 3- ALLIANCE 12V 2190 CCA BATTERIES w/ BATTERY DISCONNECT SWITCH
• ACCURIDE BRIGHT ALUMINUM WHEELS
• 12V 160AMP ALTERNATOR
• 16" CHROMED STEEL BUMPER
• 11'6" VERTICAL EXHAUST WITH BRIGHT UPPER STACK & STAINLESS STEEL TAILPIPE SHIELD & MUFFLER
• 100 GALLON ALUMINUM FUEL TANK
• AIR CAB MOUNTS WITH CHECK VALVE
• BRIGHT FINISH GRILLE & CHROME HOOD MOUNTED AIR INTAKE GRILLE
• DUAL WEST COAST STAINLESS STEEL HEATED MIRRORS W/ REMOTE ADJUST
• STAINLESS STEEL EXTERIOR SUN VISOR
• TINTED DOOR GLASS/2-PIECE WINDSHIELD
• A/C HEAT DEFROSTER & CRUISE CONTROL
• ADJUSTABLE TILT & TELESCOPING STEERING COLUMN
• HIGH BACK AIR SUSPENSION DRIVER SEAT
• AM/FM/WB RADIO-USB & AUX. INPUTS & BT
• PAINTED BRIGHT WHITE L0006B
• ALL STANDARD EQUIPMENT
• STANDARD WESTERN STAR NEW TRUCK WARRANTY
