40 Ton Manitex 40124SHL

Home
40 Ton Manitex 40124SHL

Zoom

For Sale..

40 Ton Manitex 40124SHL
Boom Truck

Unit: 40124SHL (S)

$572,200

Next Step..

For more Information:

Call

877-321-3710

or Click Below!

Specifications

Crane

Manufacturer	Manitex
Crane Model	40124SHL
Capacity	40 ton
Boom Length	124'
Jib Length	55'
Total Tip Height	189'
Outriggers	4 Hydraulic Out/Dowm Outriggers with Intermediate and Fully Retracted settings
Body	10' Heavy Duty Steel Bed
Crane Warranty	Standard Manitex Factory Warranty
Additional Crane Features	INCLUDED OPTIONS 55 FT 2-SECTION JIB TILTING ENCLOSED CAB W/ HEAT AND A/C FRONT HYDRAULIC STABILIZER 400' 5/8" ROTATION RESISTANT WIRE ROPE FREE SWING W/ FOOT BRAKE

Truck

Manufacturer	Peterbilt
Truck Model	567
Engine	Cummins X15 Turbo Diesel
Horsepower	450
Transmission	EATON FO16E308LL-VCS 10-SPEED ULTRASHIFT AUTOMATIC TRANSMISSION
GVW	81000
Warranty	Standard Manufacturer Warranty
Additional Truck Features	Eaton Ultrashift Automatic Transmission 90 Gallon Aluminum Fuel Tank Immersion Type Block Heater Air Brakes w/ ABS Smart ATC Battery Disconect Switch

Description

Year	2023

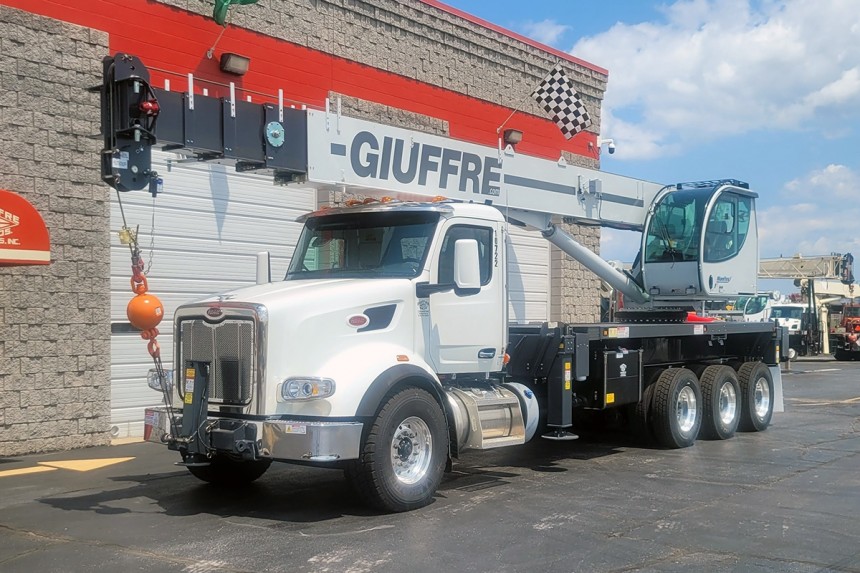

Description	Manitex 40124SHL 40 Ton on 2023 Peterbilt 567 Tri-Drive
Status	New

Features

h2>CRANE

MANITEX 40124SHL
40 TON CAPACITY W/ REAR MOUNTED OPERATOR'S CAB - HEAT & A/C
124 FT 5-SECTION TELESCOPIC BOOM
5-SHEAVE QUICK REEVE BOOM HEAD
189' TIP HEIGHT WITH 55 FT JIB
TILTING ENCLOSED CAB W/ HEAT AND A/C
FREE SWING OPTION WITH FOOT BRAKE
380' 5/8" ROTATION RESISTANT WIRE ROPE
PILOT OPERATED DUAL AXIS CONTROLLERS
LMI CAPACITY ALERT WITH VISUAL DISPLAY & OVERLOAD SHUT-OFFS
HARDWIRED ANTI-TWO BLOCK SYSTEM
360 DEGREE AREA OF OPERATION W/CONTINUOUS ROTATION
4 HYDRAULIC OUT-AND-DOWN OUTRIGGERS
LOAD CHARTS FOR FULLY EXTENDED/INTERMEDIATE/RETRACTED OUTRIGGERS
10 FT BED & RETRACTABLE LADDERS
PAINTED STD MANITEX COLORS
ALL STANDARD EQUIPMENT
STANDARD MANITEX FACTORY WARRANTY

TRUCK

NEW 2023 PETERBILT MODEL 567
CUMMINS X15 - 450HP TURBO DIESEL ENGINE w/ 1600 LB-FT TORQUE & JAKE BRAKE
81,000 LB G.C.W.R
61,000 LB TRIDEM REAR AXLE
20,000 LB FRONT STEER AXLE
MERITOR RZ-XX166 TRIDEM REAR AXLE
EATON FO16E308LL-VCS 10-SPEED ULTRASHIFT AUTOMATIC TRANSMISSION
FULL DIFFERENTIAL LOCK TRI-DRIVE AXLES w/ DRIVER CONTROLLED ROCKER SWITCH
IMMERSION TYPE BLOCK HEATER 110 - 120V
OIL PAN HEATER 120V / 300W
425-65R22.5 20PLY FRONT TIRES
11R-22.5 16PLY REAR TIRES
ALCOA POLISHED ALUMINUM WHEELS
FULL DOUBLE FRAME W/ FULL STEEL INSERT
AIR BRAKES w/ ABS & BENDIX SMART ATC TRACTION CONTROL & AIR DRYER & HEATER
FRONT TOW HOOKS
4 PACCAR 12V BATTERIES (2920CCA) w/ DISCONNECT & JUMPER TERMINAL
STAINLESS STL CROWN & GRILLE
VERTICAL CHROME RH EXHAUST STACK
AIR CONDITIONING / CRUISE / AIR HORN
CHROME STEEL SWEPT BACK BUMPER
200 AMP ALTERNATOR -STD. BRUSH
90 GAL ALUMINUM FUEL TANK (LH - U/C)
PACCAR FUEL/WATER SEPARATOR WITH 12V HEAT FOR FUEL FILTER
AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH
AIR RIDE HIGH BACK SEATS
ALUMINUM CAB WITH AIR SUSPENSION
DUAL WEST COAST STEEL MIRRORS
ONE PIECE CURVED WINDSHIELD
POWER DOOR LOCKS & POWER WINDOWS
EXTERIOR STAINLESS STEEL SUNVISOR
COMPLETE GAUGE PACKAGE
PAINTED PETERBILT WHITE L0006EY
STD PETERBILT FACTORY WARRANTY

Specifications
