CRANE

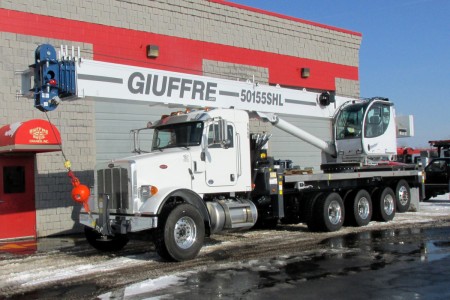

• MANITEX TC50155S,
• 50 TON CAPACITY @ 6FT RADIUS,
• 155 FT 5-SECTION TELESCOPIC BOOM,
• 6-SHEAVE QUICK REEVE BOOM HEAD,
• 204 FT TIP HEIGHT WITH 39 FT JIB,
• TILTING CAB WITH HEATER, AIR CONDITIONER UPPER CAB GUARD & WINDSHIELD COVER,
• 500' 5/8" ROTATION RESISTANT WIRE ROPE,
• COMBINED FREE SWING/NO FREE SWING,
• 2-SPEED WINCH MAX LINE SPEED 453 FPM,
• 3B6 LMI SYSTEM W/ CRANE FUNCTION SHUT-OFFS FOR OVERLOAD PROTECTION WITH GRAPHIC VISUAL DISPLAY MONITOR,

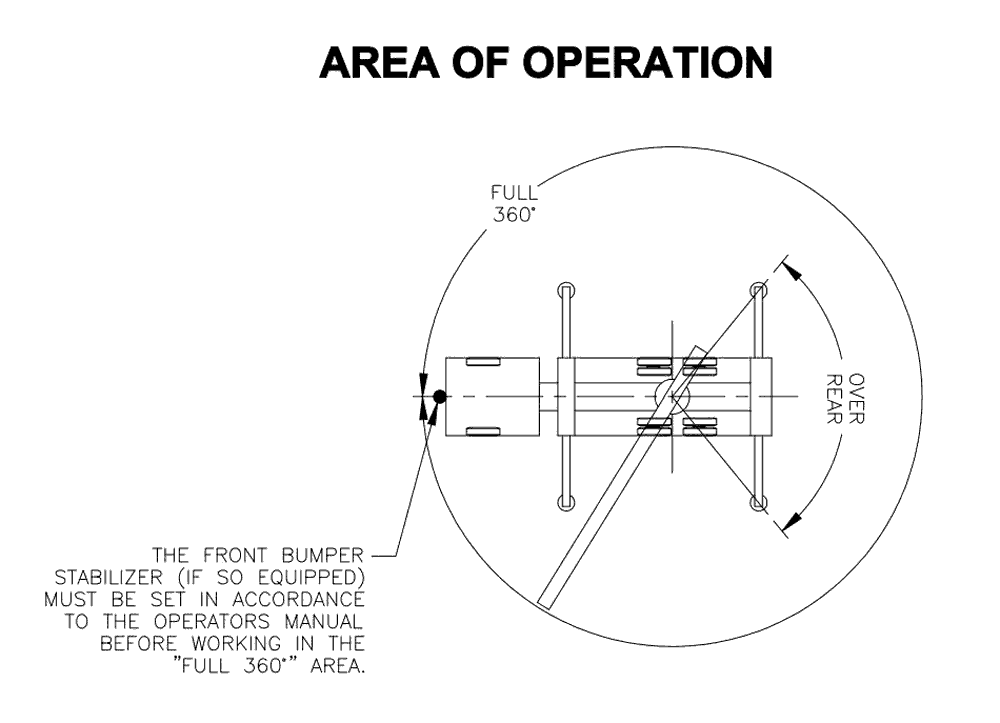

• 360 DEGREE CONTINUOUS ROTATION,
• HARDWIRED ATB WITH LOCKOUT PROTECT,
• 4 HYDRAULIC OUT-&-DOWN OUTRIGGERS,
• LOAD CHARTS FOR FULLY EXTENDED / INTERMEDIATE / RETRACTED OUTRIGGERS,
• DIAMOND PLATED ALUMINUM DECKING,
• PAINTED STD MANITEX COLORS,
• ALL STANDARD EQUIPMENT,
• STANDARD MANITEX FACTORY WARRANTY.

TRUCK

• NEW 2024 PETERBILT MODEL 567,
• 500HP CUMMINS ISX12 TURBO-DIESEL ENGINE WITH JACOBS C-BRAKE,
• 102,500 LB G.V.W.R.,
• 20,000 LB FRONT STEER AXLE,
• 69,000 LB TRI-DEM REAR AXLE,
• 13,500 LB SELF-STEERING TAG AXLE,
• DANA SPICER 20K FRONT AND T69 REAR AXLE SUSPENSION SYSTEM,
• FULL STEEL INNER FRAME LINER,
• AIR BRAKES W/ ANTI-LOCK BRAKING,
• BENDIX SMART ATC TRACTION CONTROL,
• AIR TRAC TRI-DRIVE 66K LBS WITH 2 DASH MOUNTED DUMP VALVES,
• FULLER FO16E308LL-VCS 10-SPEED ULTRASHIFT PLUS AUTO TRANSMISSION,
• 1650 LB-FT TORQUE,
• 425-65R22.5 FRONT TIRES,
• 11R-22.5 16 PLY REAR TIRES,
• ALUMINUM FRONT AND REAR WHEELS,
• TRI-DRIVE DIFFERENTIAL LOCKING,
• 3 OPTIMA BATTERIES 2700 CCA,
• PACCAR 160 AMP ALTERNATOR,
• PHILLIPS IMMERSION TYPE ENGINE BLOCK HEATER 110-120V,
• PACCAR 12 VOLT STARTER,
• 26" ALUMINUM 110 GAL FUEL TANK (LH),
• 7 GAL D.E.F. TANK MOUNTED (RH),
• PETERBILT HIGH BACK AIR RIDE DRIVER AND ULTRARIDE PASSENGER SEATS,
• POWER LOCKS/WINDOWS BOTH SIDES,
• 24.5" CHROME AIR HORN W/ SHIELD,
• DUAL 7X16 HEATED MIRRORS W/ DUAL 8" STAINLESS CONVEX MIRRORS,
• CONCERTCLASS AUDIO SYSTEM W/ BT,
• AM/FM/WB AUDIO W/ BT PHONE AND USB,
• OUTSIDE STAINLESS STEEL SUN VISOR,
• FIRE EXTINGUISHER AND TRIANGLE KIT,
• TINTED WINDOWS SIDES AND REAR,
• BRIGHT BEZEL GAUGES,
• PAINTED PETERBILT/DUPONT WHITE,

STD PETERBILT FACTORY WARRANTY.
