AERIAL LIFT

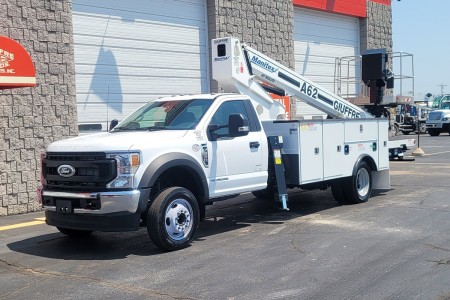

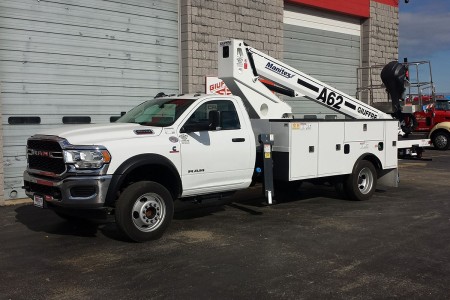

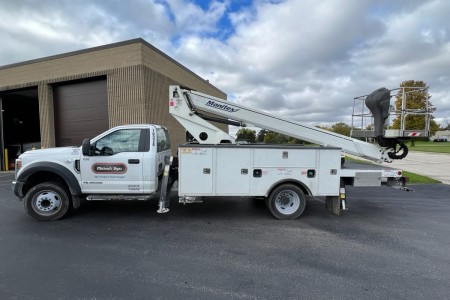

• MANITEX MODEL A62 AERIAL LIFT

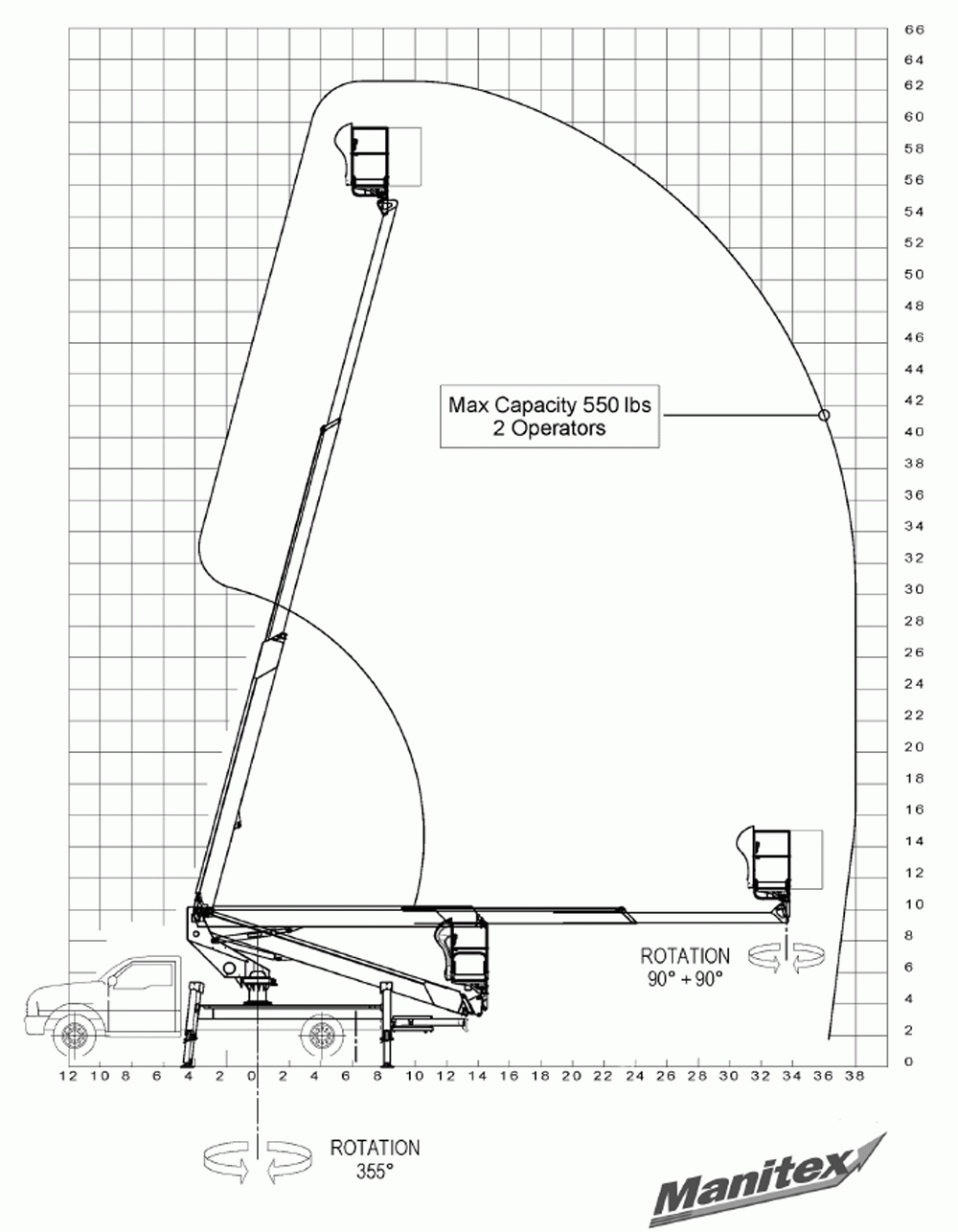

• 62' MAXIMUM OPERATING HEIGHT
• 38' MAXIMUM OPERATING OUTREACH
• -15° TO +75° BOOM OPERATING ANGLES
• ALUMINUM 67" X 27.5" X 43" MAN BASKET
• HYDRAULIC STABILIZATION CONTROLS
• 700° NON CONTINUOUS TURRET ROTATION
• 90° BASKET ROTATION BOTH LEFT/RIGHT
• 18 GALLON HYDRAULIC TANK
• 4 HYDRAULIC STABILIZERS
• OUTRIGGER MONITORING SYSTEM
• HAND PUMP FOR EMERGENCY LOWERING
• HYDRAULIC BASKET ROTATION
• DOCUMENT FOLDER ON BASKET
• INTERNALLY ROUTED CABLES AND HOSES
• SAFETY OPERATOR FOOT PEDAL IN BASKET
• DUAL SIDE OUTRIGGER OPERATOR CONTROLS
• ALL STANDARD EQUIPMENT
• PAINTED STANDARD MANITEX COLORS
• STANDARD MANITEX FACTORY WARRANTY

TRUCK

• 2026 FORD MODEL F550
• 440HP FORD 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20
• 19,500 LB GVWR - PAYLOAD PLUS PACKAGE
• 14,706 LB REAR AXLE RATING
• 4,792 LB FRONT AXLE RATING
• FORD TORQSHIFT 10-SPEED AUTOMATIC TRANSMISSION
• LIMITED SLIP W/ 4.88 AXLE RATION
• STAINLESS STEEL SIMULATOR WHEELS
• 225/70Rx19.5B TIRES - 4 TRACTION ON REAR AND 2 ALL-SEASON ON FRONT
• 50-STATE EMISSIONS SYSTEM
• ENGINE BLOCK HEATER
• DIESEL EXHAUST FLUID TANK
• INTELLIGENT OIL-LIFE MONITOR
• MANUAL PUSH-BUTTON ENGINE EXHAUST BRAKING
• DUAL 78-AH 750CCA BATTERIES
• DUAL ALTERNATORS (TOTAL 332 AMPS)
• SPLIT-SHAFT CALIBRATION COMPATIBILITY
• CRUISE CONTROL (STRNG WHEEL CTRLS)
• AM/FM RADIO w/ MP3 PLAYER & SYNC COMM. AND ENTERTAINMENT SYSTEM
• USB PORT & STEERING WHEEL CONTROLS
• HD VINYL 40/20/40 SPLIT BENCH SEAT
• DRIVER'S SEAT MANUAL LUMBAR
• XL VALUE TRIM PACKAGE
• HIGH CAP TRAILER TOW PACKAGE
• TRAILER BRAKE CONTROLLER
• CHROME FRONT BUMPER
• FULL GAUGE PACKAGE
• PAINTED FORD OXFORD WHITE
• ALL STANDARD EQUIPMENT
• STANDARD FORD FACTORY WARRANTY
