Model Information
| Model | 1870F |
| Capacity | 18 Ton |
| Boom Length | 3-SECTION / 27' - 70' |
| Tip Height | 80' - 120' |
Download / Print (PDF)

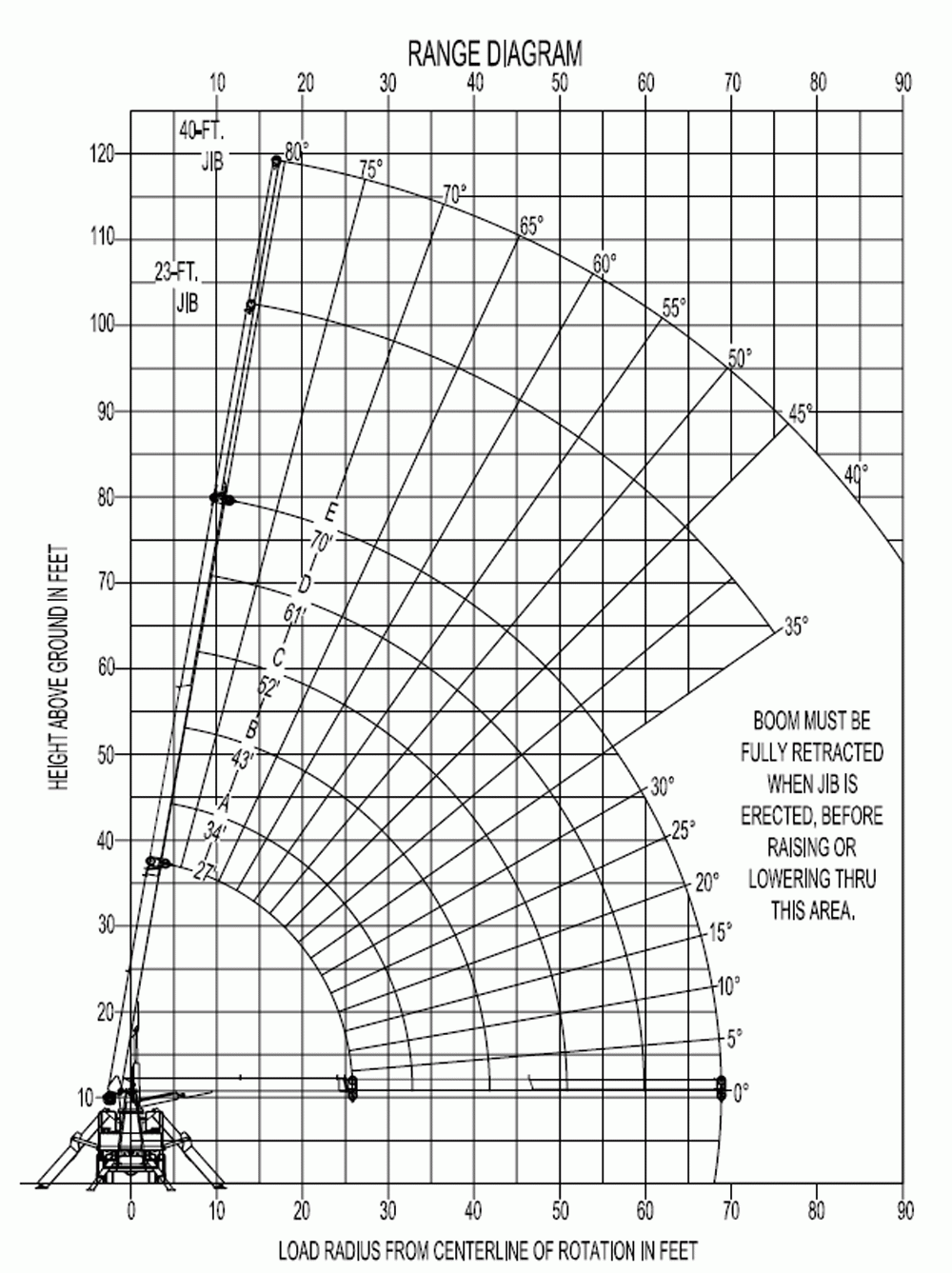

- Elliott-1870F-loadchart.pdfElliott 1870F - Range Diagram

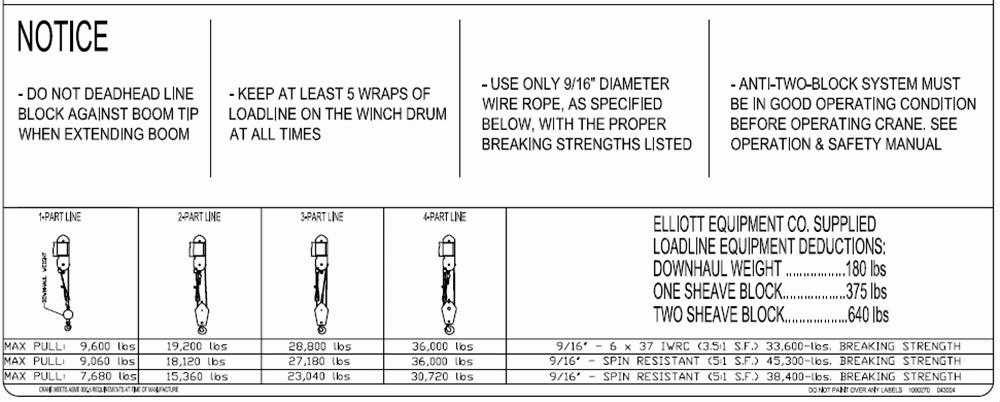

Elliott 1870F - Allowable Line Pull Chart

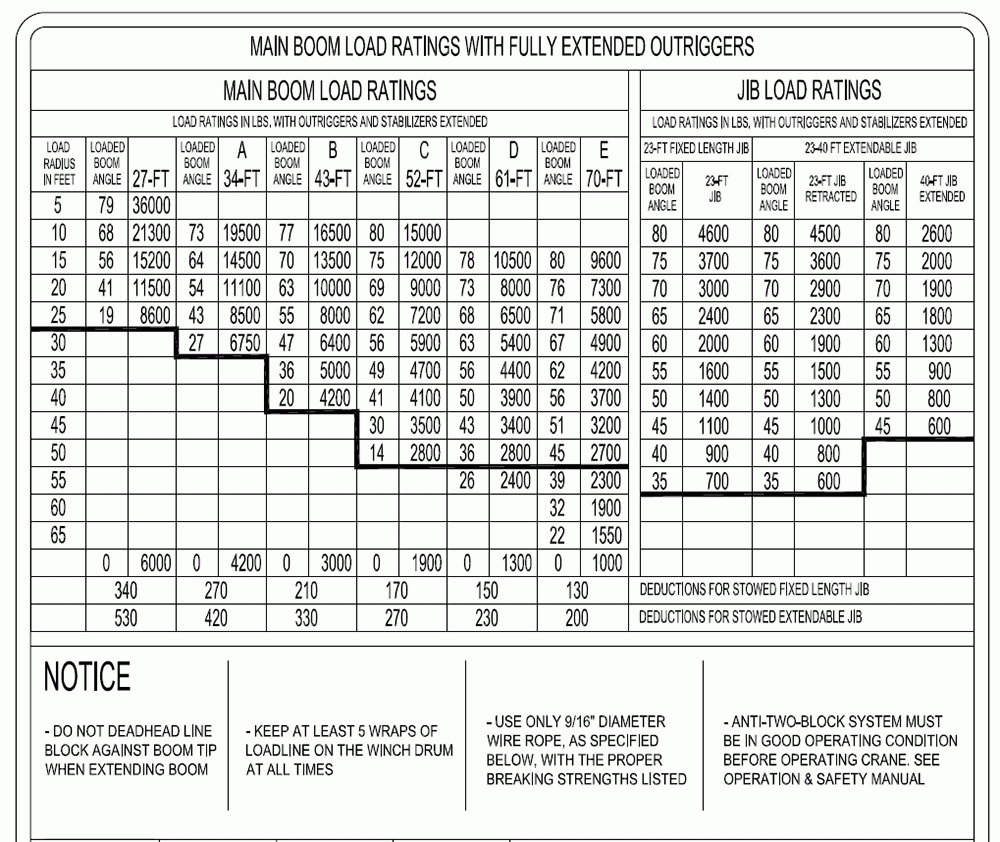

Elliott 1870F - Load Chart & Jib Chart

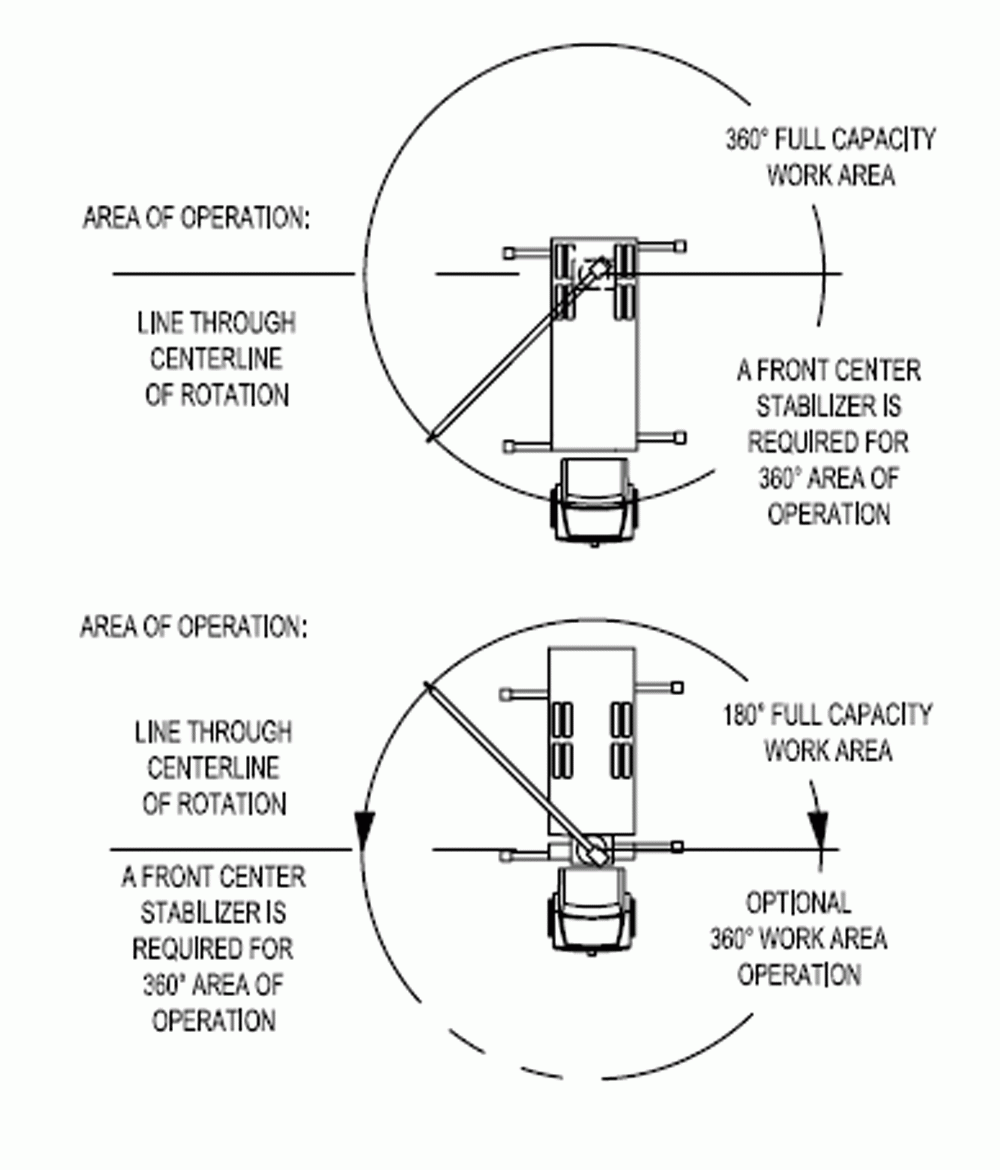

Elliott 1870F - Area of Operation
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
