Model Information
| Model | 30105F |
| Capacity | 30 Ton |
| Boom Length | 4-SECTION 31' - 105' |
| Tip Height | 162' |
Download / Print (PDF)

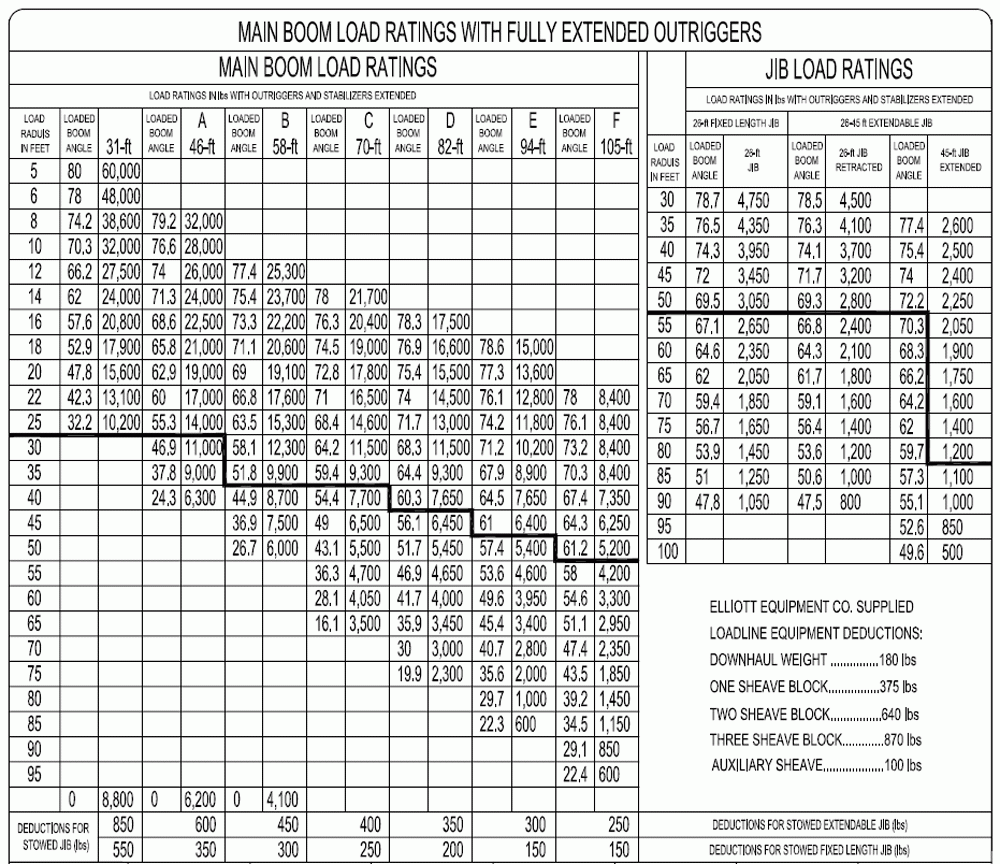

- Elliott-30105F-loadchart.pdfElliott 30105F - Load Chart Full Extend

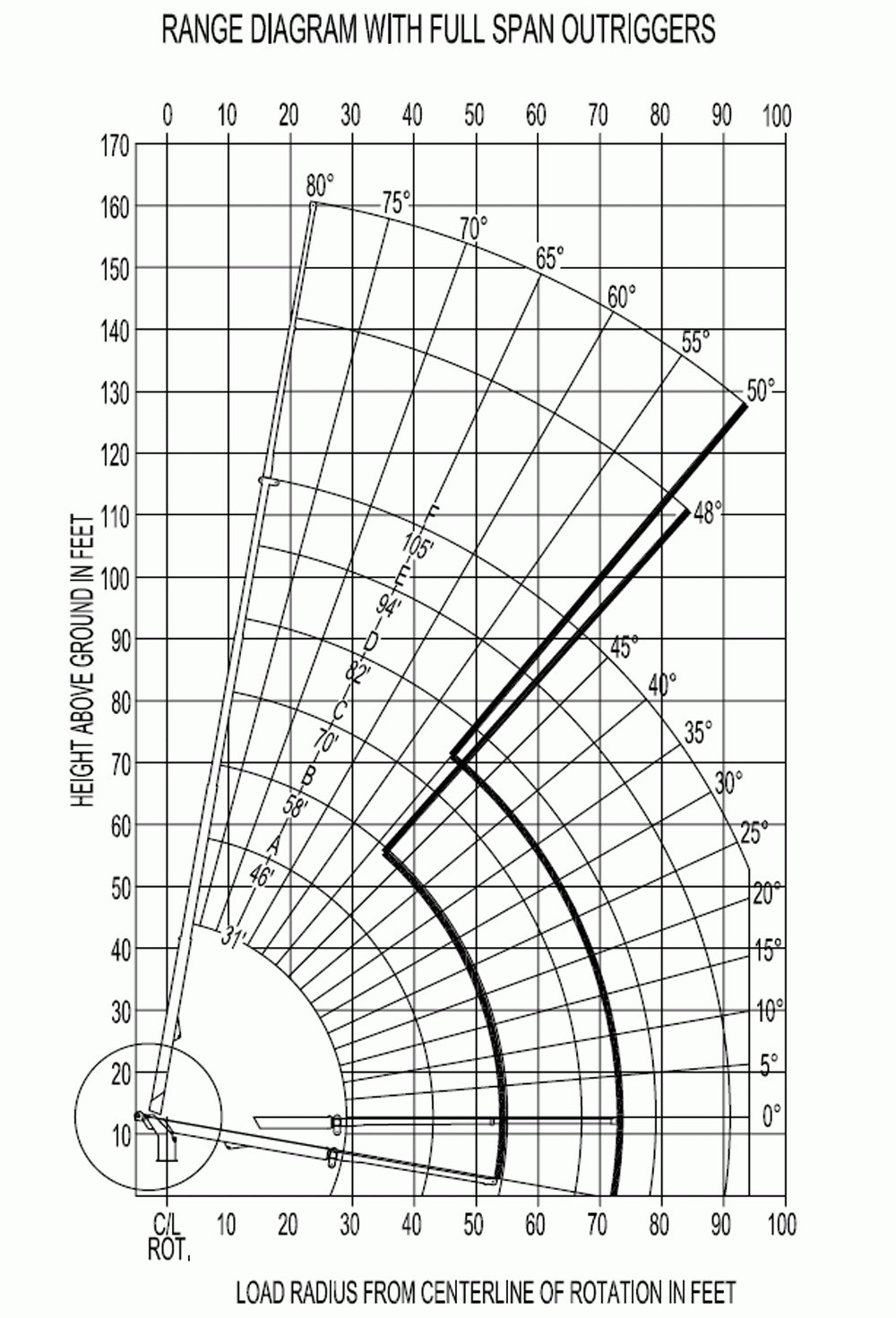

Elliott 30105F - Full Extend Range Diagram

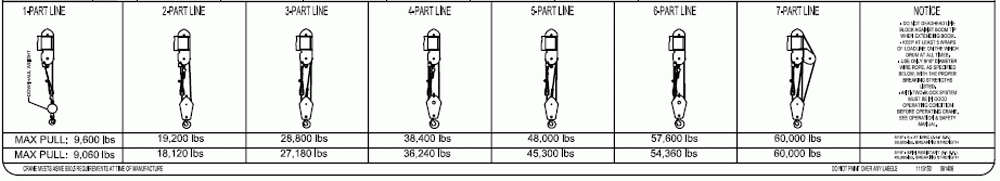

Elliott 30105F - Allowable Line Pull

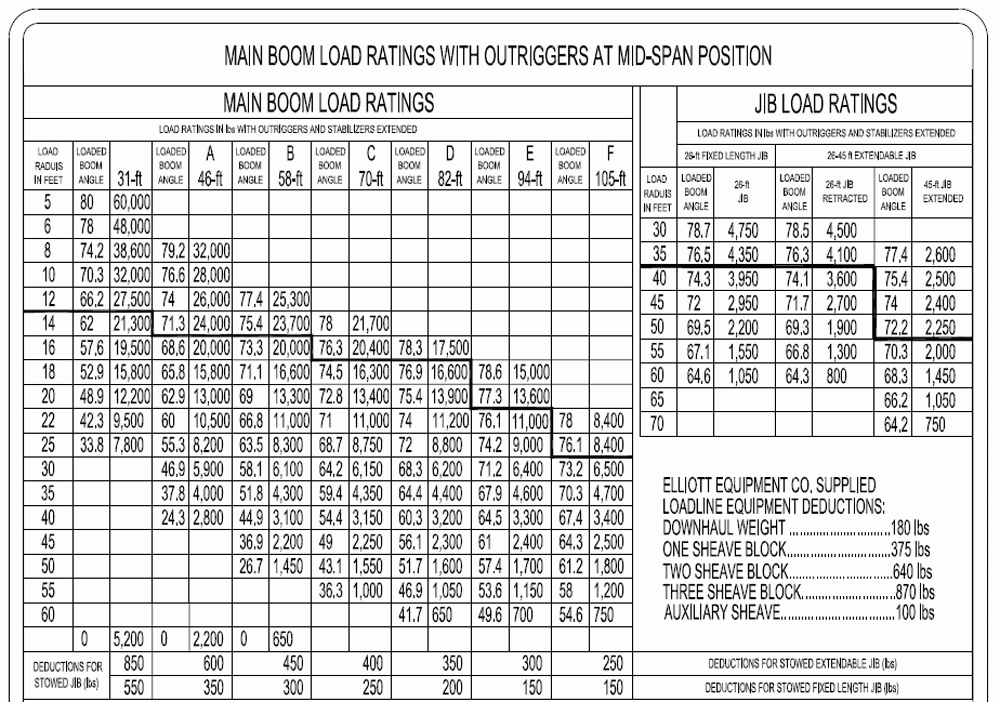

Elliott 30105F - Load Chart Mid Extend

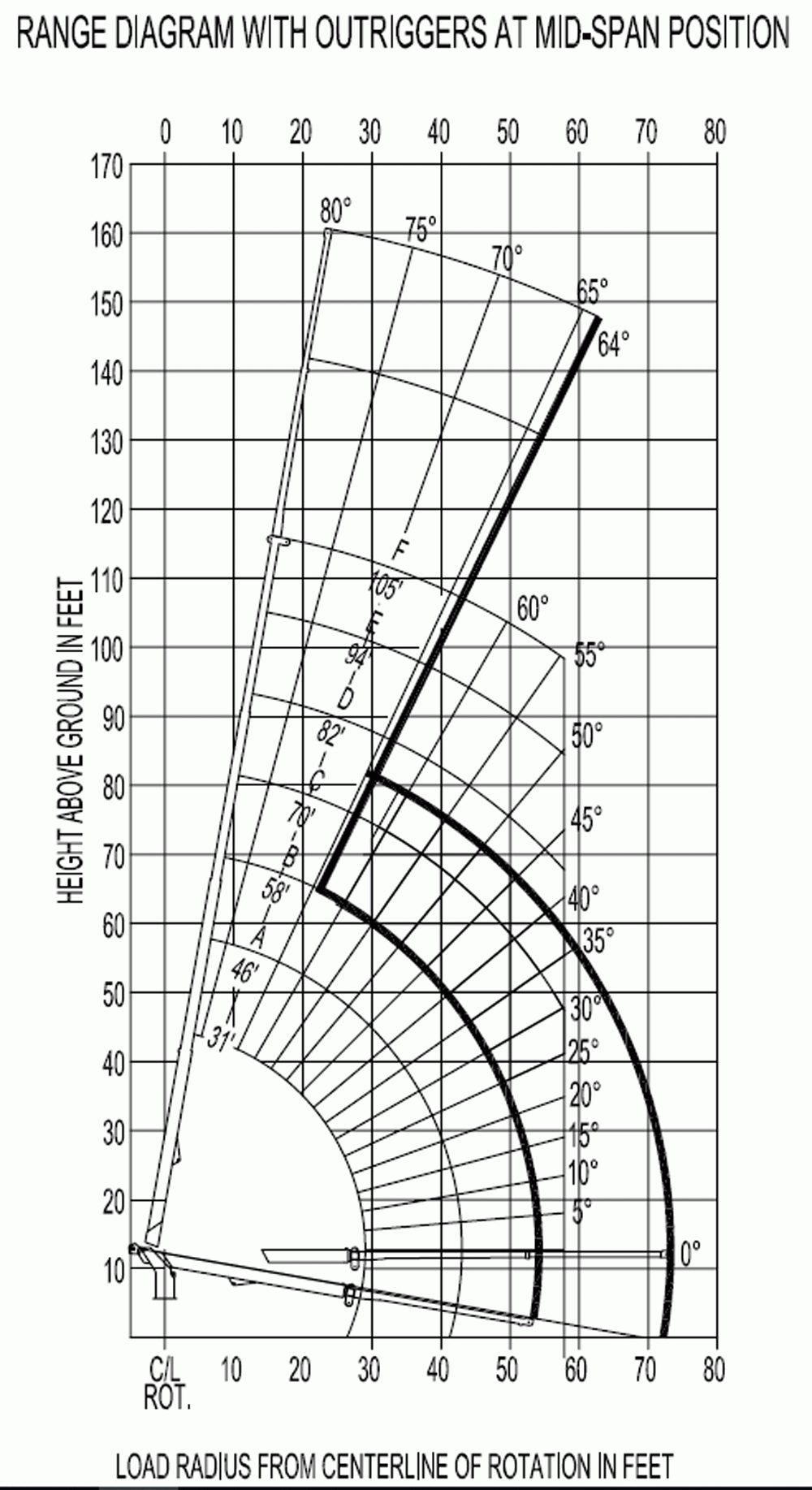

Elliott 30105F - Mid Extend Range Diagram

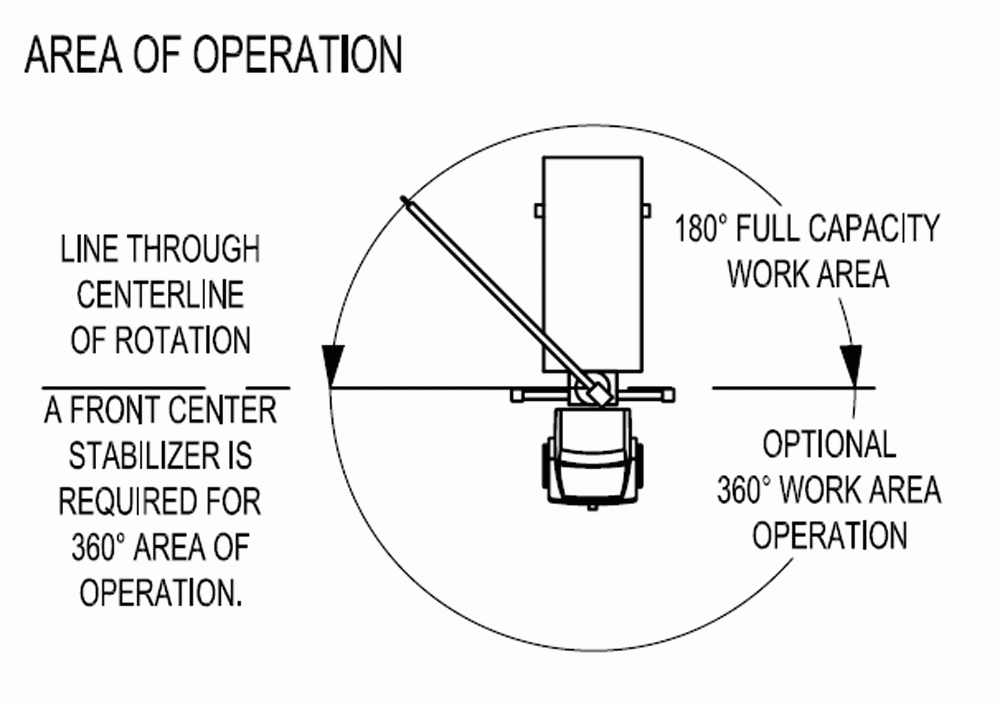

Elliott 30105F - Area of Operation
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
