Model Information
| Model | 40100 S |
| Capacity | 40 Ton |
| Boom Length | 4-SECTION / 31’ - 100’ |
| Tip Height | 109’ - 165’ |
Download / Print (PDF)
- Manitex-40100S-loadchart.pdfManitex 40100S - Load Chart (Fully Retracted Outriggers)

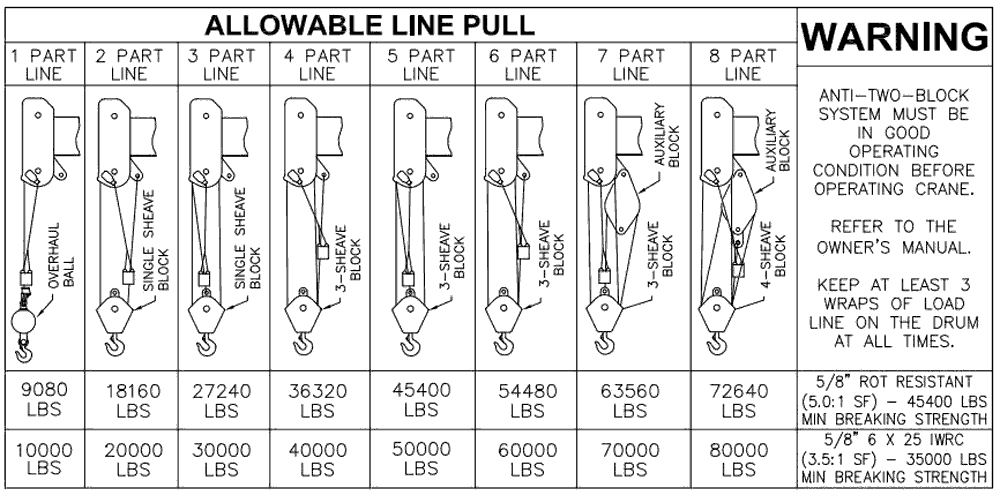

Manitex 40100S - Allowable Line Pull Chart
Manitex 40100S - Load Chart (Intermediate Extended Outriggers)
Manitex 40100S - Range Diagram (Fully Extended Outriggers)
Manitex 40100S - Range Diagram (Fully Retracted Outriggers)

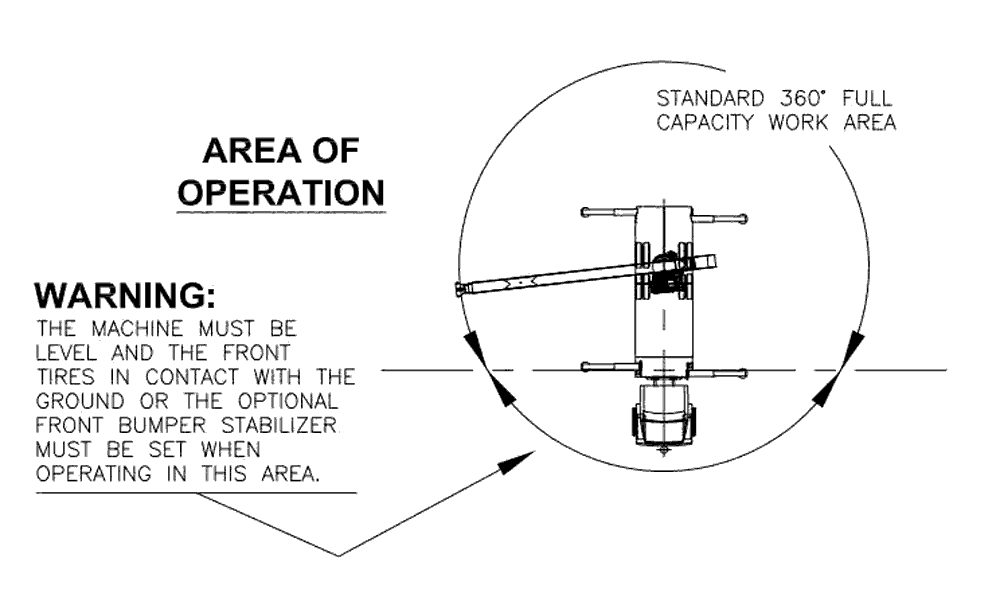

Manitex 40100S - Area Of Operation
Manitex 40100S - Load Chart (Fully Extended Outriggers)
Manitex 40100S - Range Diagram (Intermediate Extended Outriggers)
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
