Model Information
| Model | A62 |
| Capacity | 500 lbs. |
| Boom Length | 58' |
| Tip Height | 62' |
Download / Print (PDF)

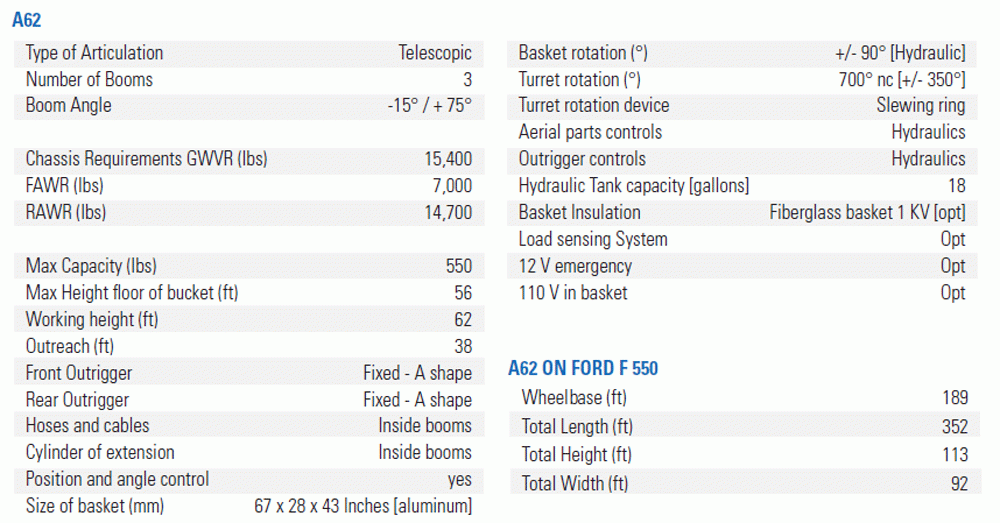

- Manitex-A62-loadchart.pdfManitex A62 - Technical Specifications

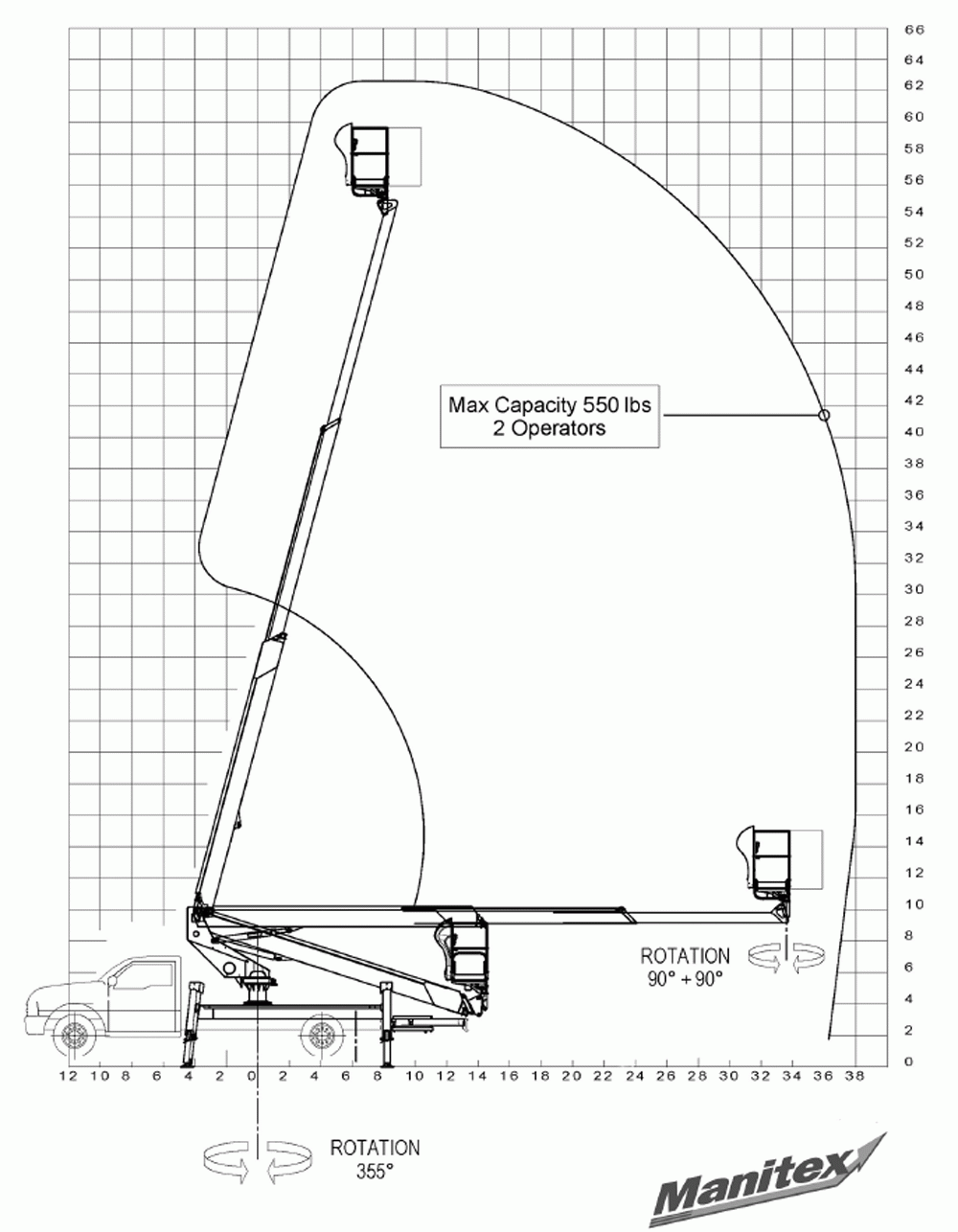

Manitex A62 - Range Diagram

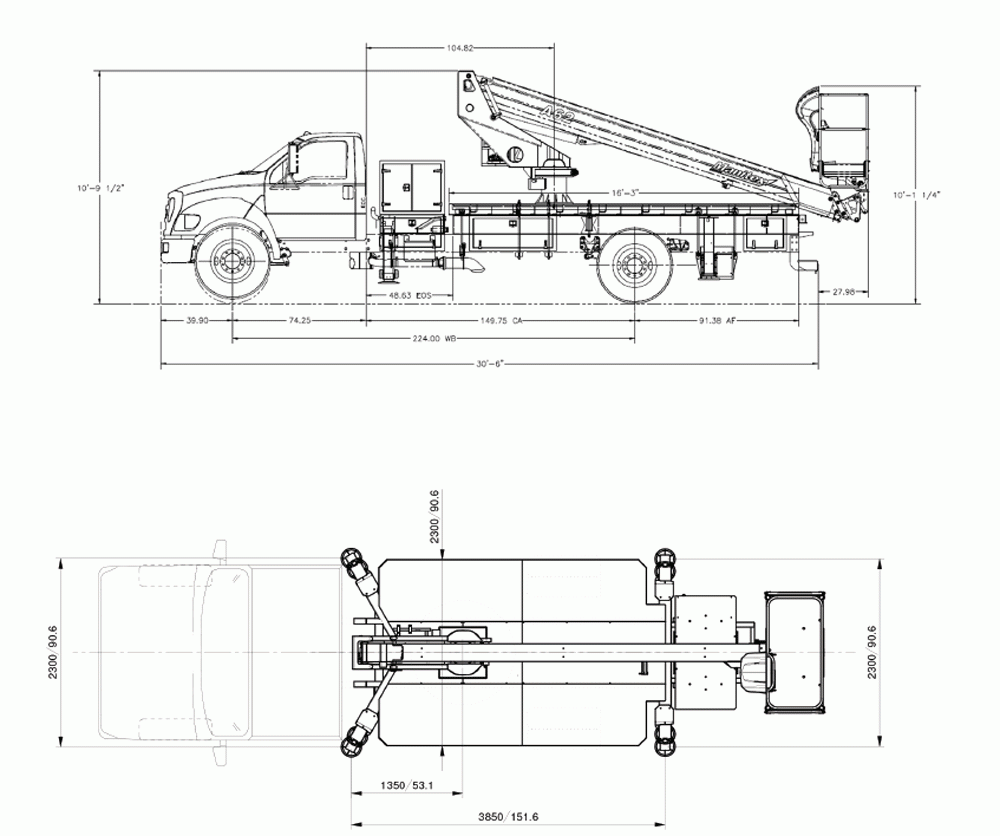

Manitex A62 - Dimensions
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
