Model Information
| Model | CD100i |
| Capacity | 10 Ton |
| Boom Length | 3-SECTION 25.4' |
| Tip Height | 42' |
Download / Print (PDF)

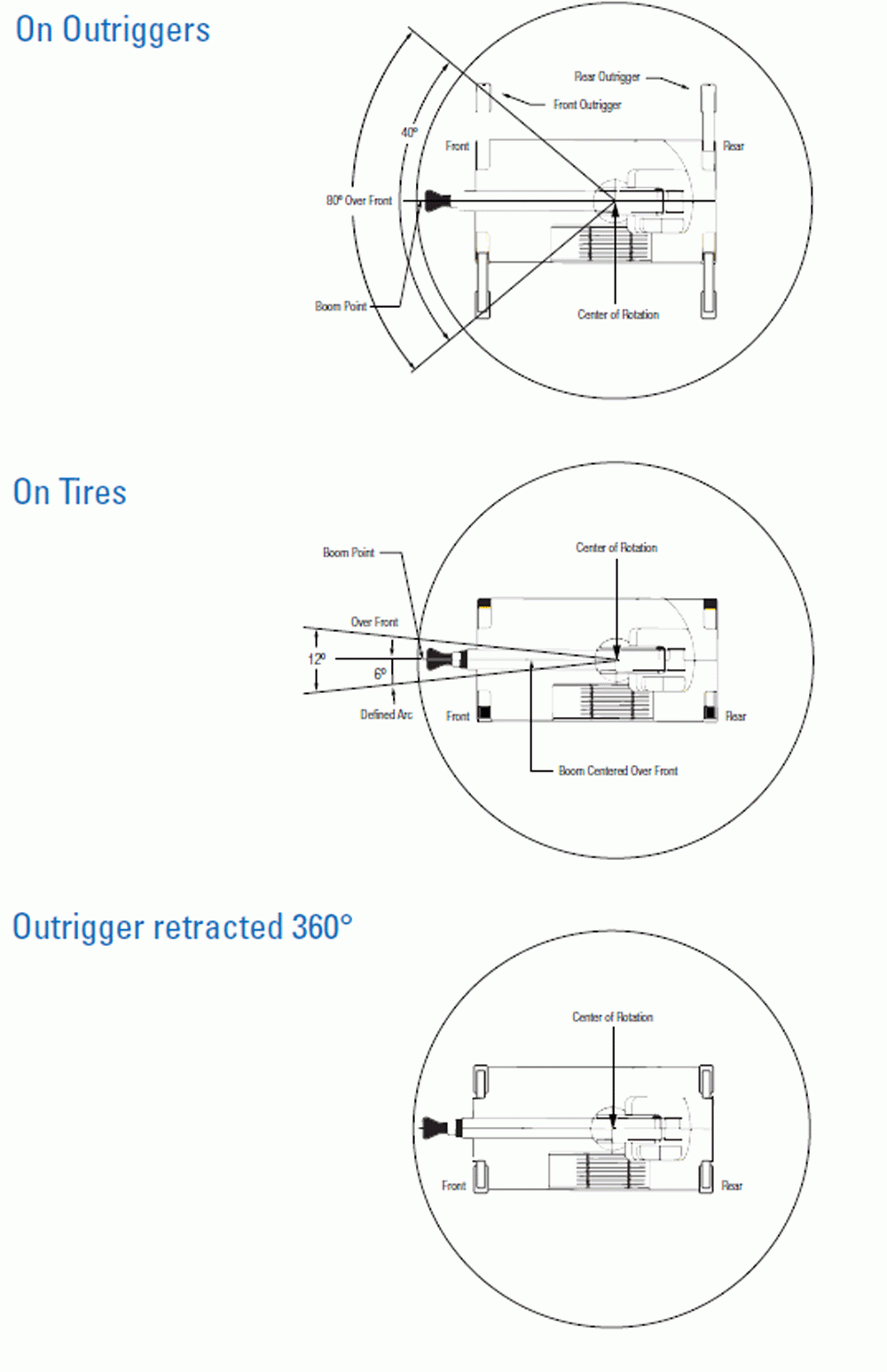

- Manitex-CD100i-loadchart.pdfManitex CD100i - Area of operation

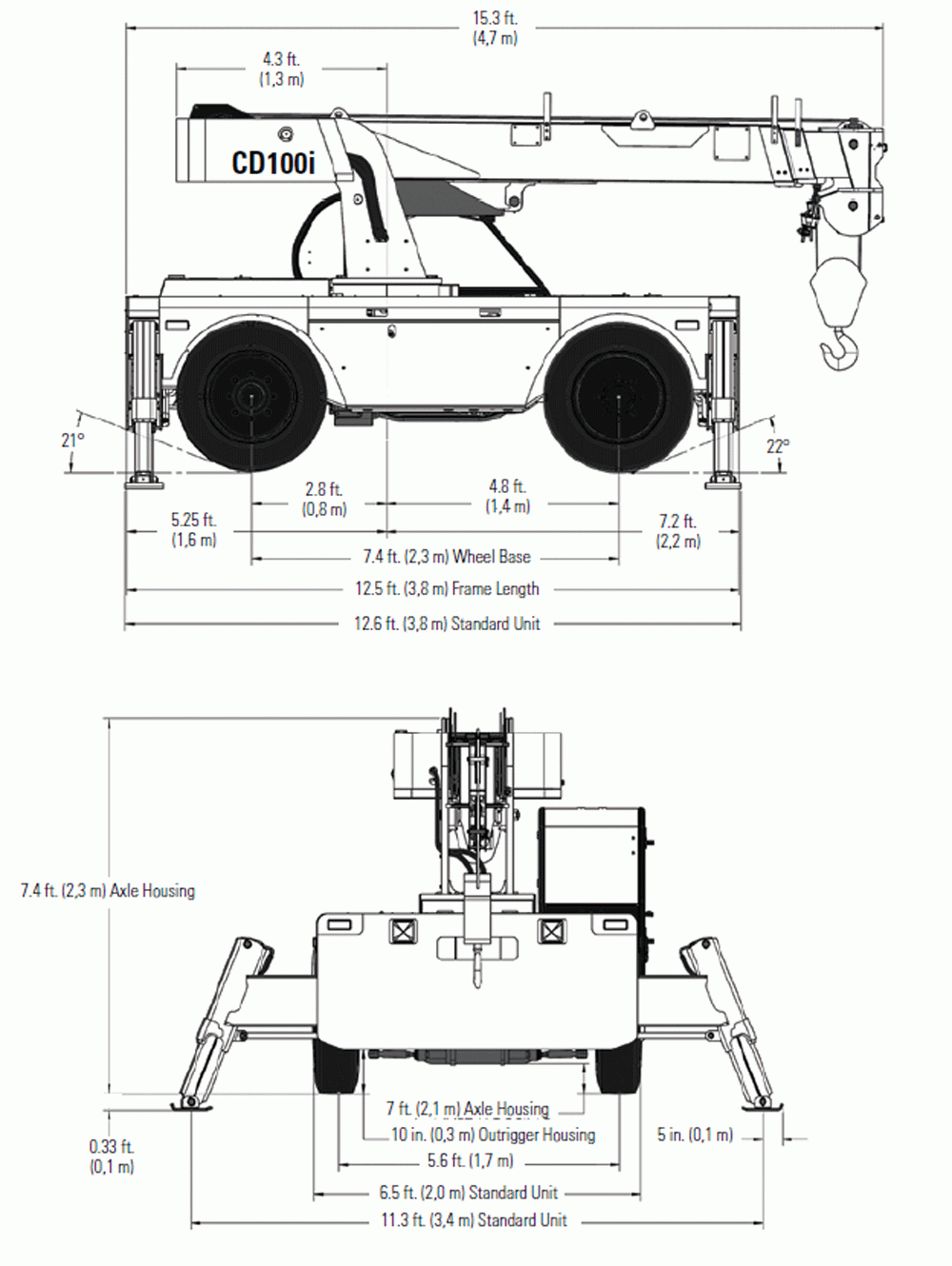

Manitex CD100i - Crane Dimensions

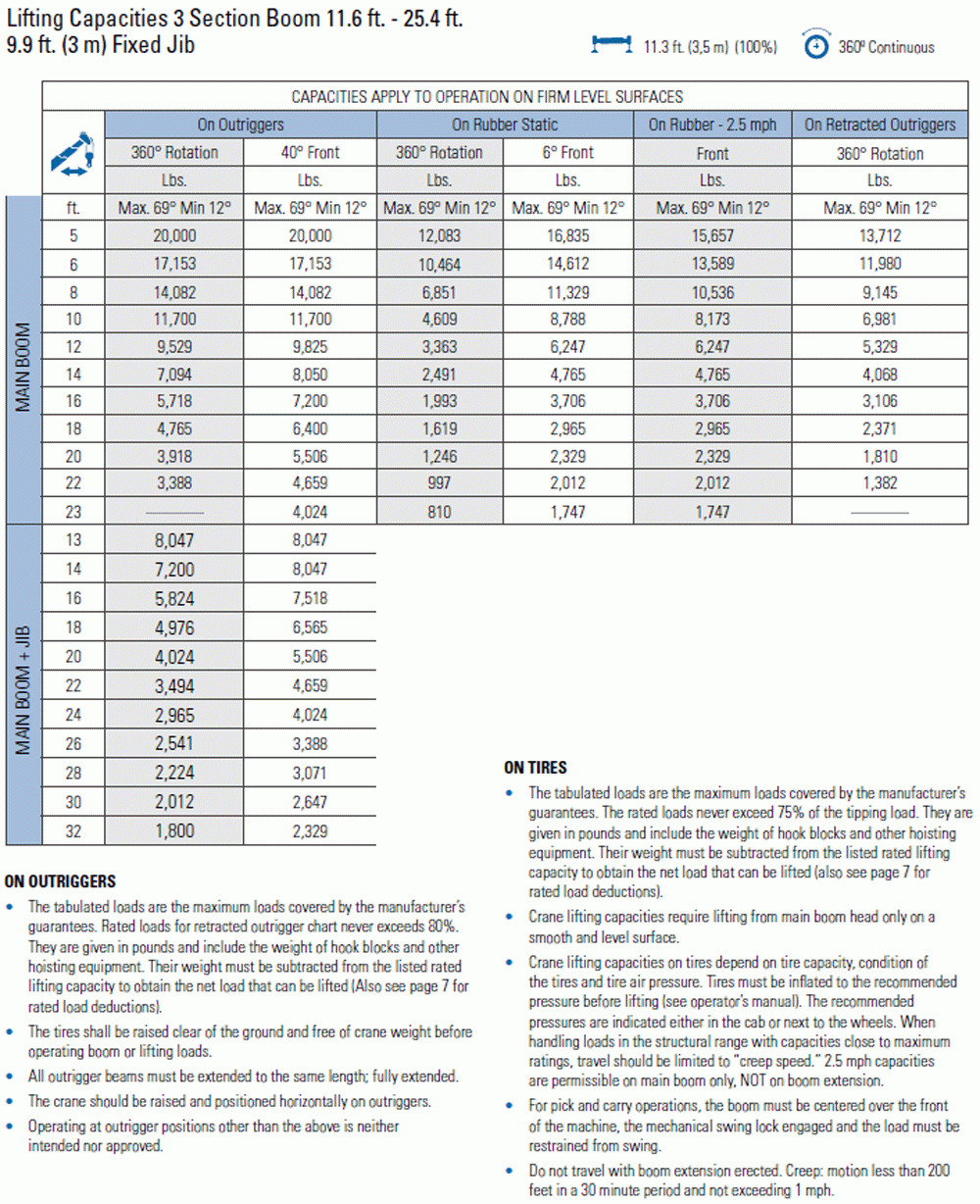

Manitex CD100i - Load Chart

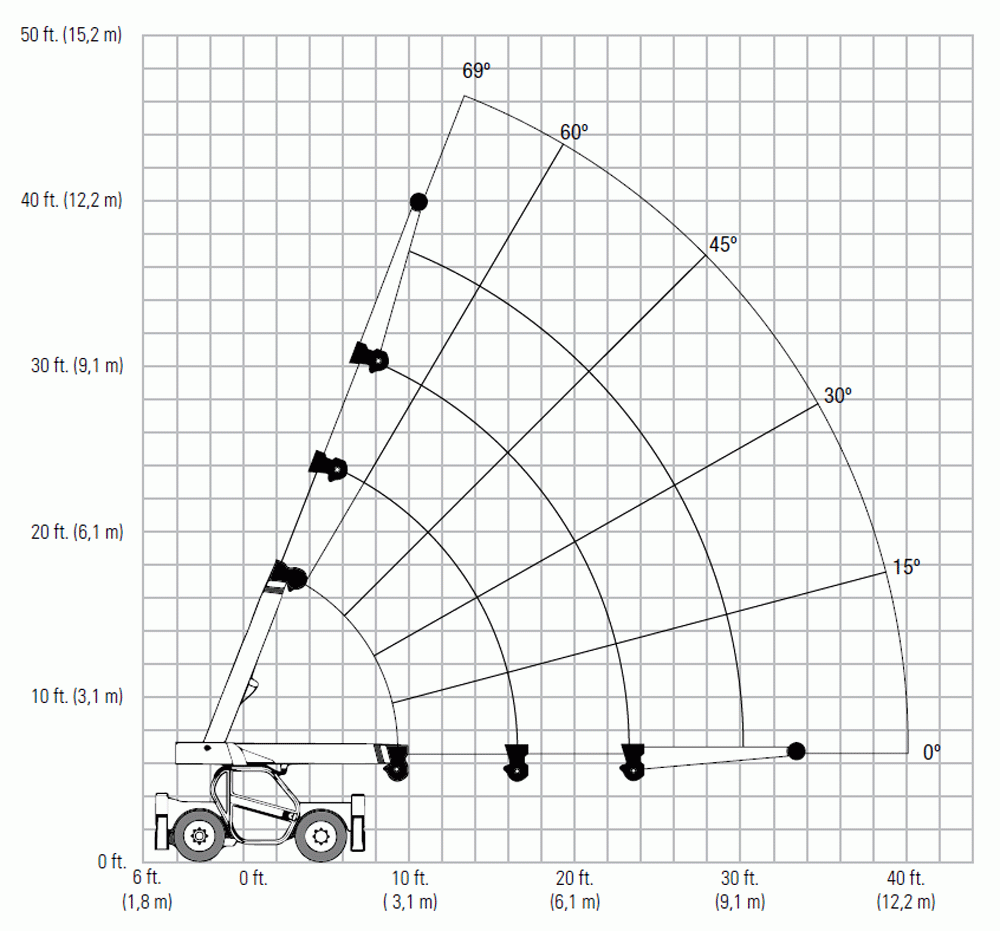

Manitex CD100i - Range Diagram
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
