Model Information
| Model | 9103A |
| Capacity | 26 ton |
| Boom Length | 4 SECTION 30'9" - 102'10" |
| Tip Height | 155' |
Download / Print (PDF)

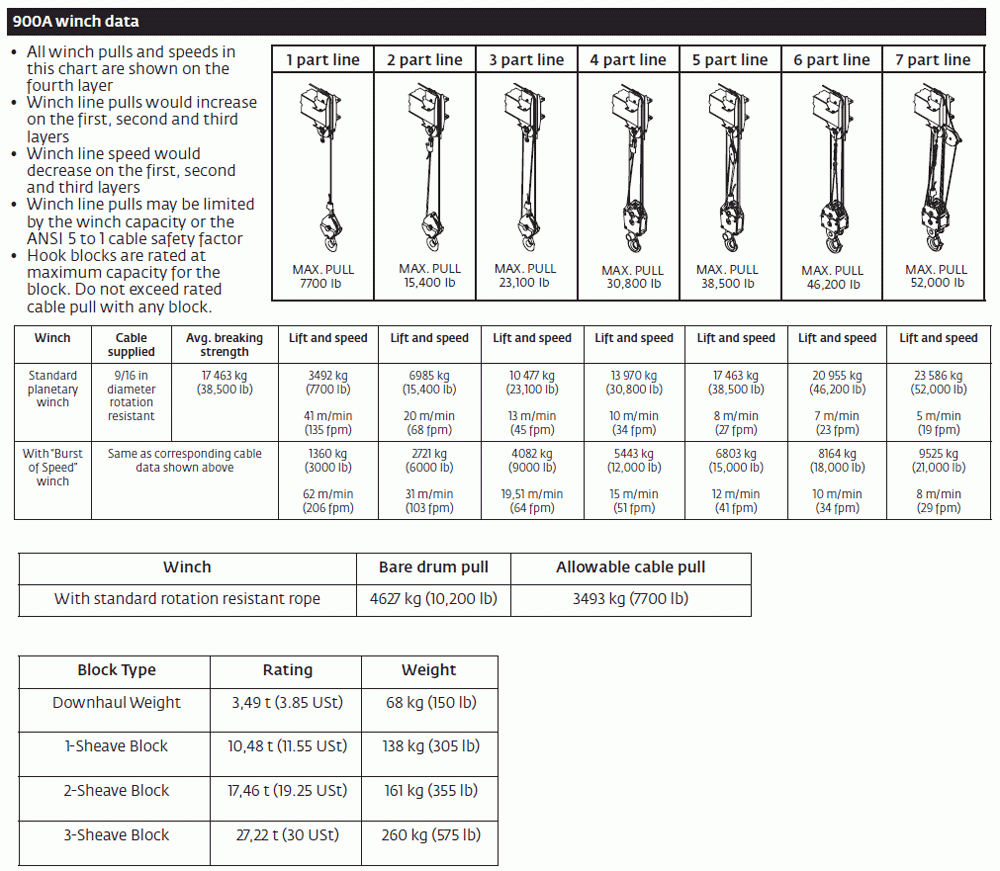

- National-900A-loadchart.pdfNational 9103A - Line Pull Chart

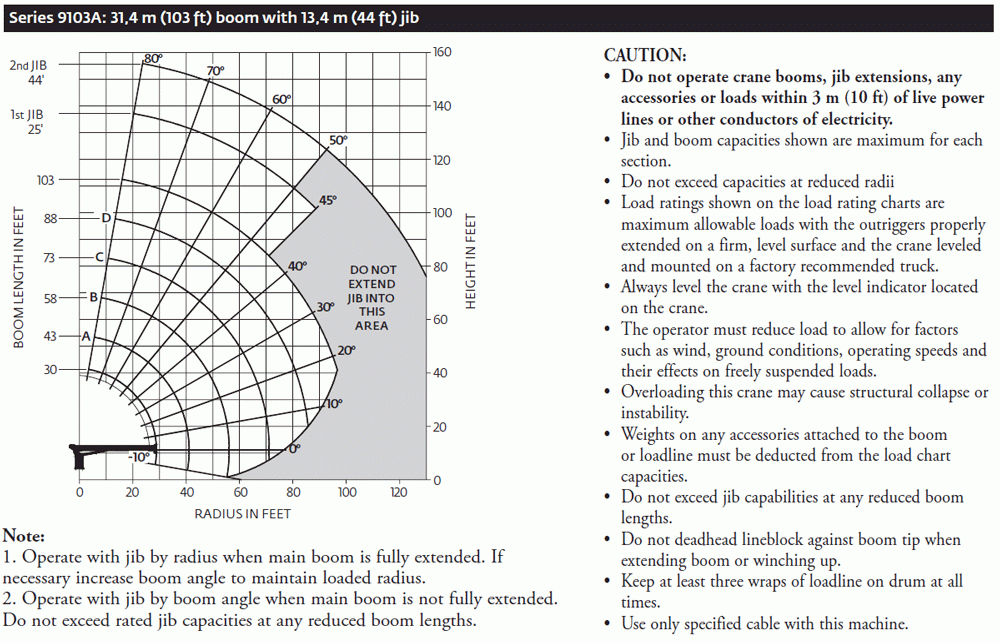

National 9103A - Range Diagram w/ Jib

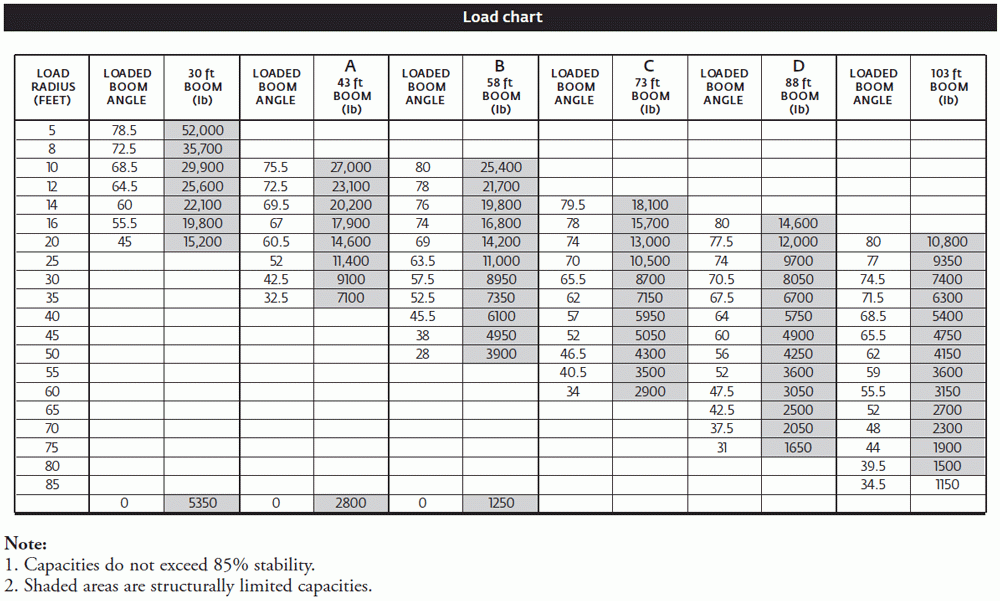

National 9103A - Load Chart

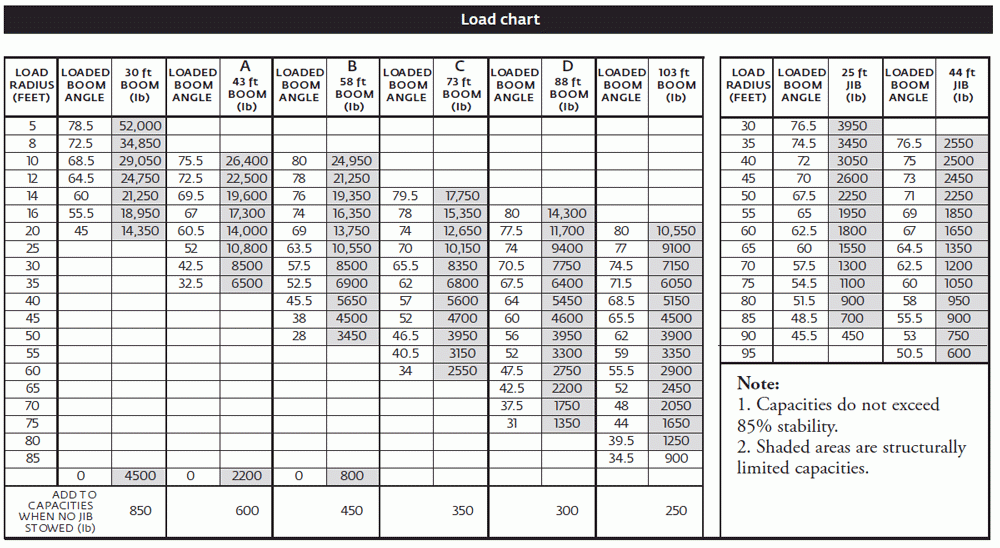

National 9103A - Load Chart w/ Jib

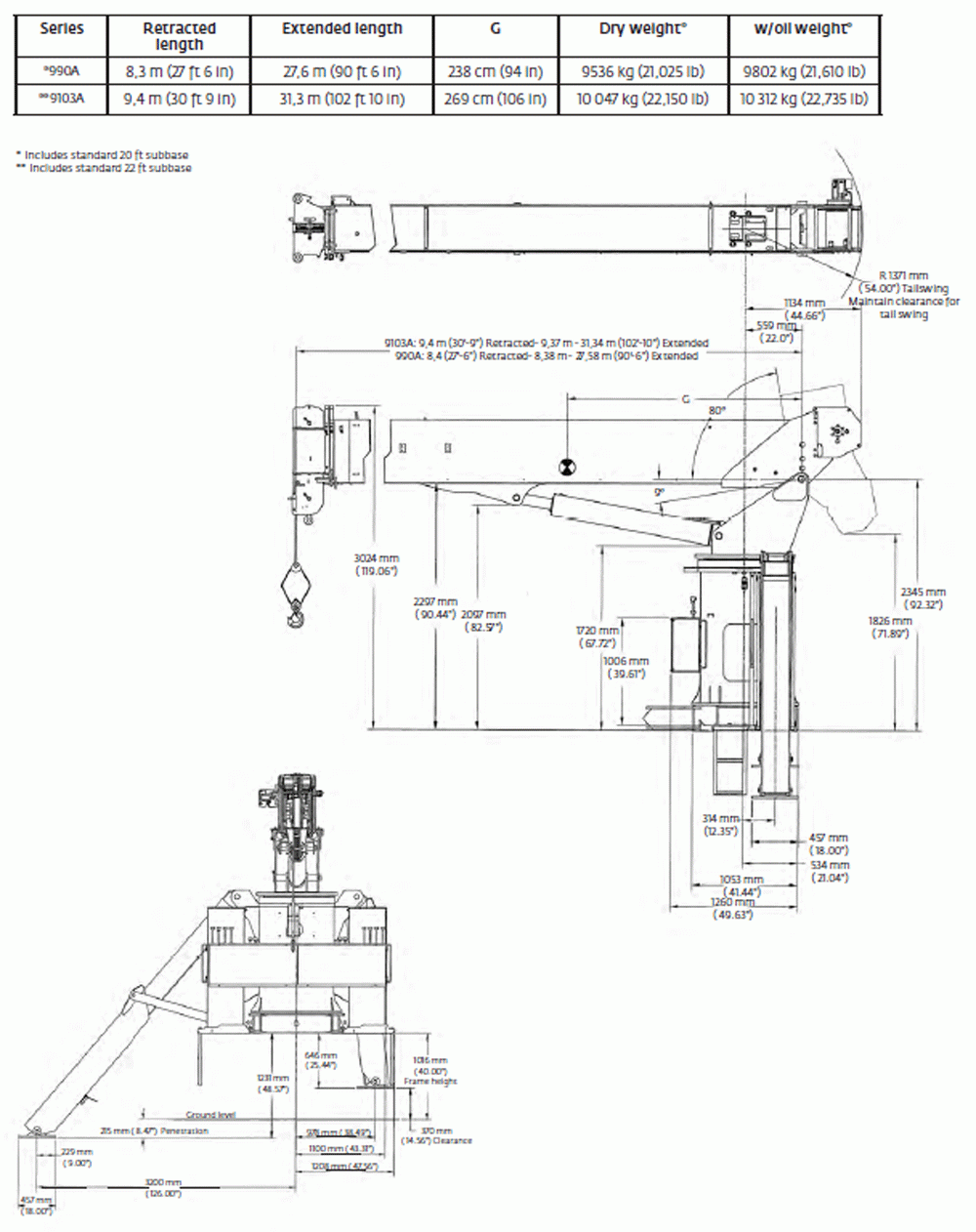

National 9103A - DImensions

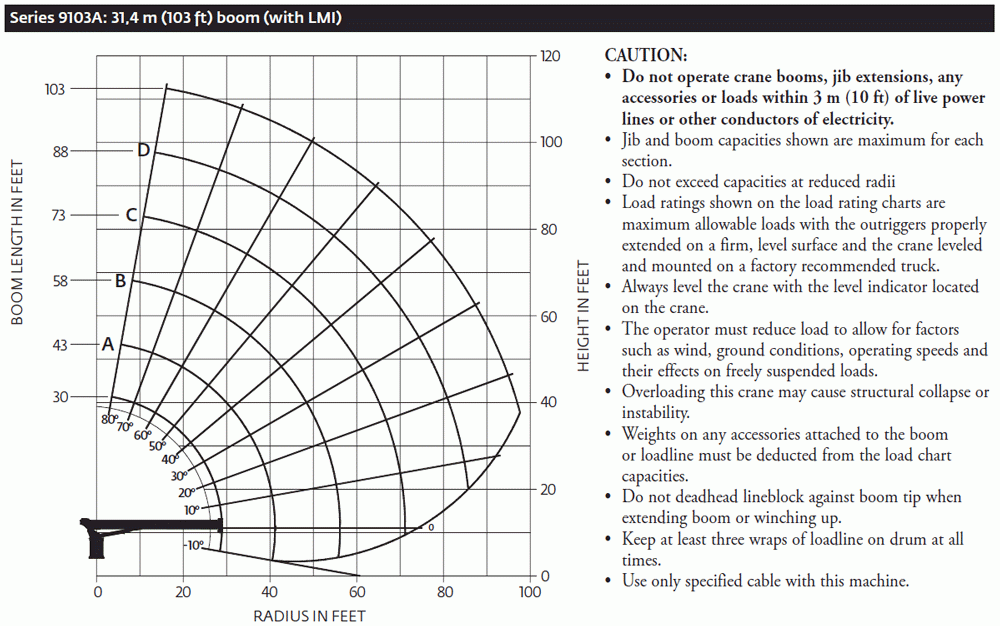

National 9103A - Range Diagram
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
