Model Information
| Model | 990A |
| Capacity | 26 ton |
| Boom Length | 4 SECTION 27'6" - 90'6" |
| Tip Height | 143 |
Download / Print (PDF)

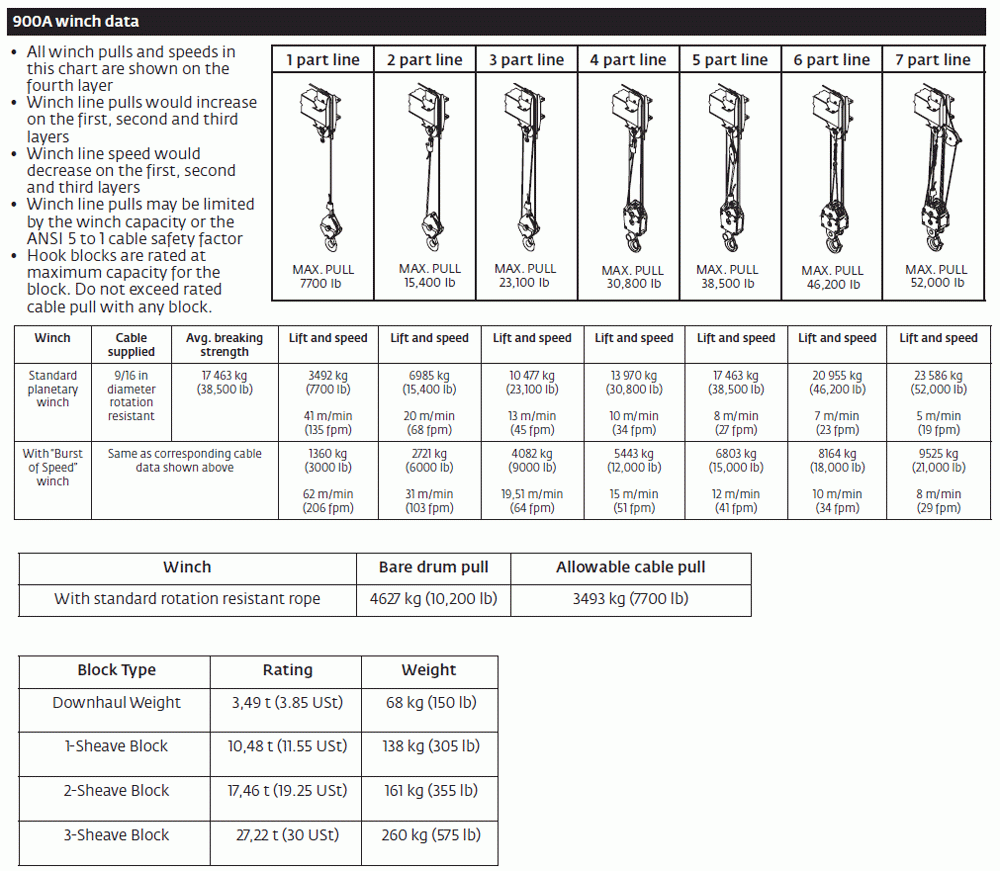

- National-900A-loadchart.pdfNational 990A - Line Pull Chart
National 990A - Load Chart w/ Jib
National 990A - Range Diagram

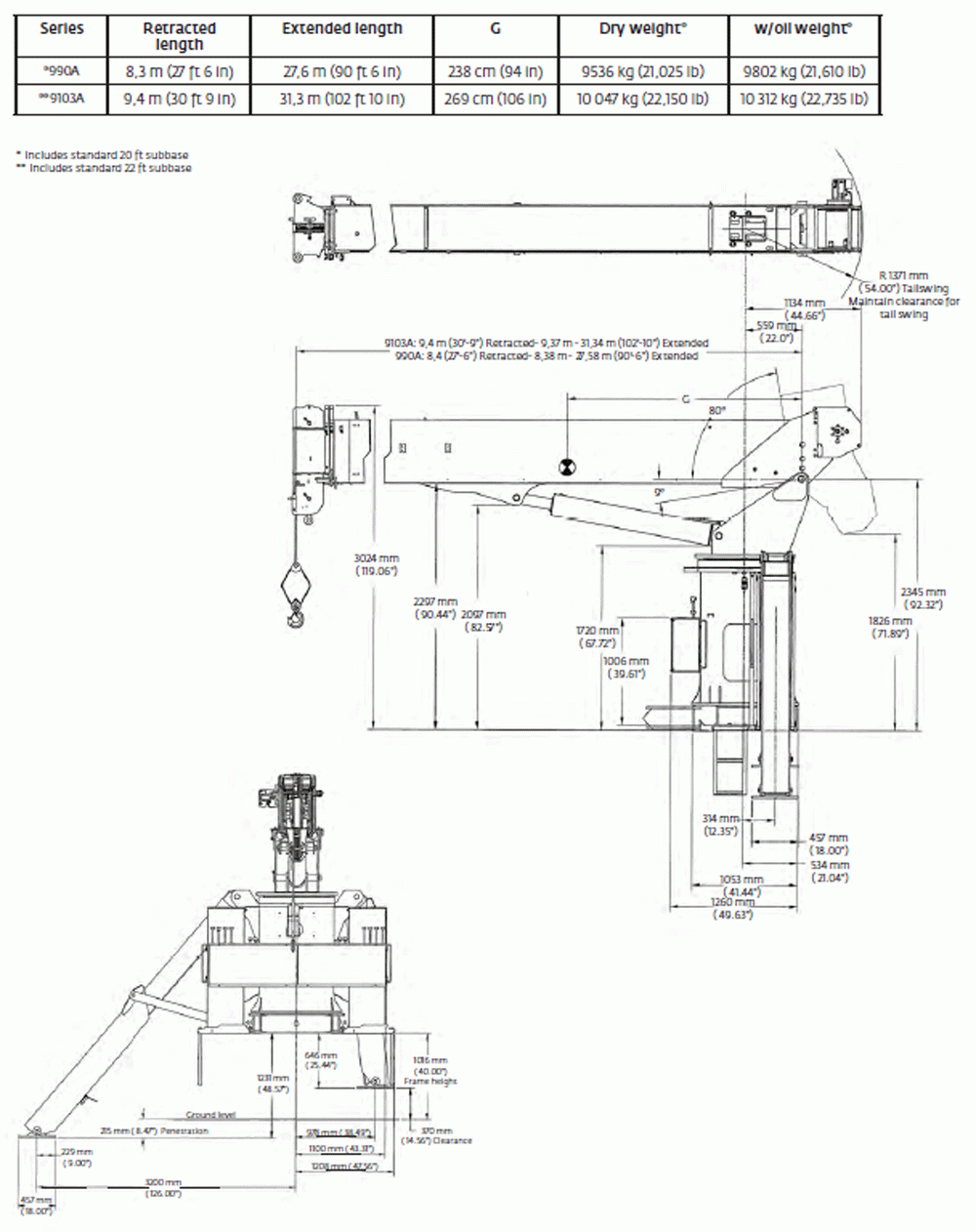

National 990A - Dimensions

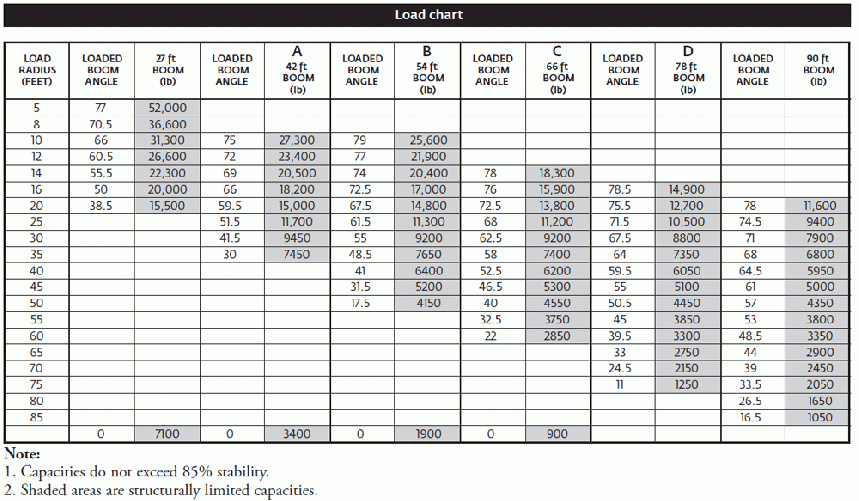

National 990A - Load Chart
National 990A - Range Diagram w/ Jib
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
