Model Information
| Model | NBT30110H-2 |
| Capacity | 30 Ton |
| Boom Length | 4 SECTION 33' - 110' |
| Tip Height | 163' |
Download / Print (PDF)

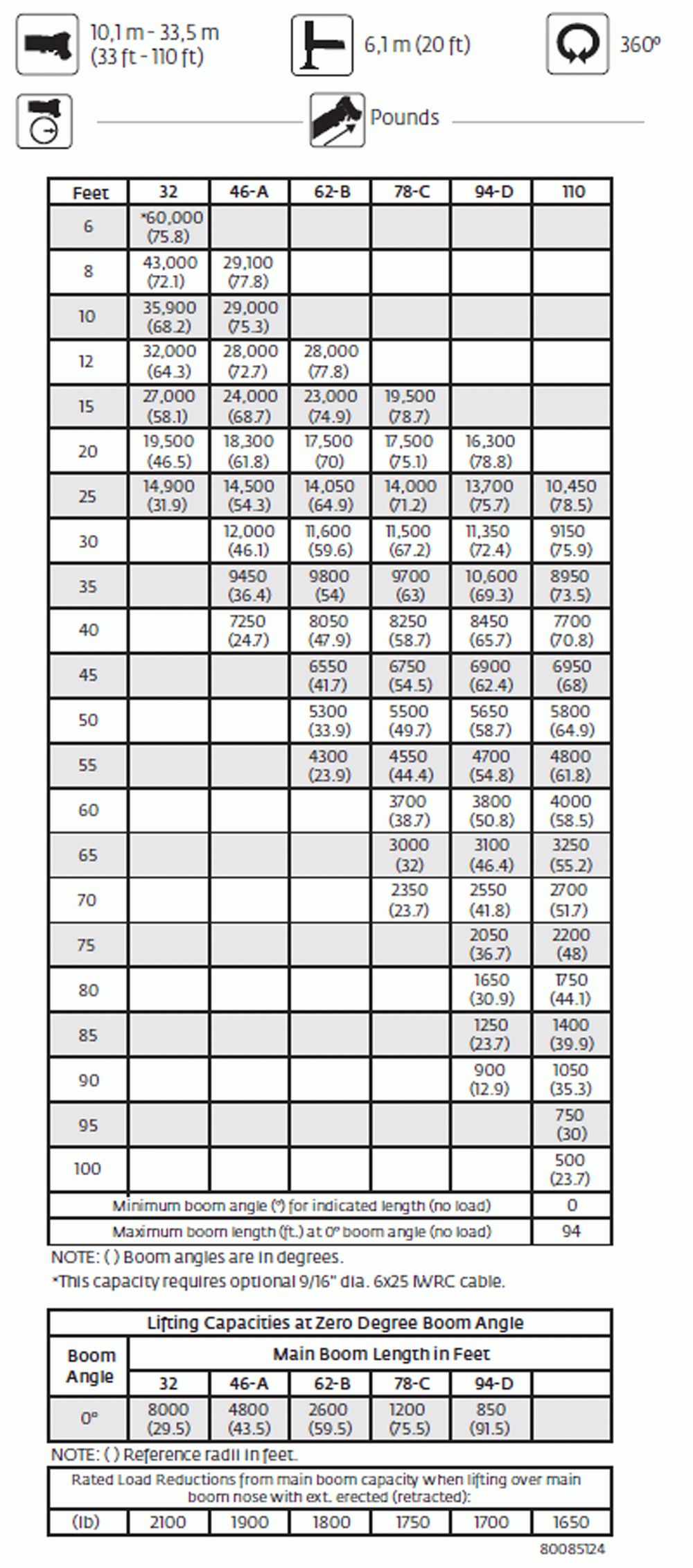

- National-NBT30H2-loadchart.pdfNational NBT30110H-2 - Load Chart

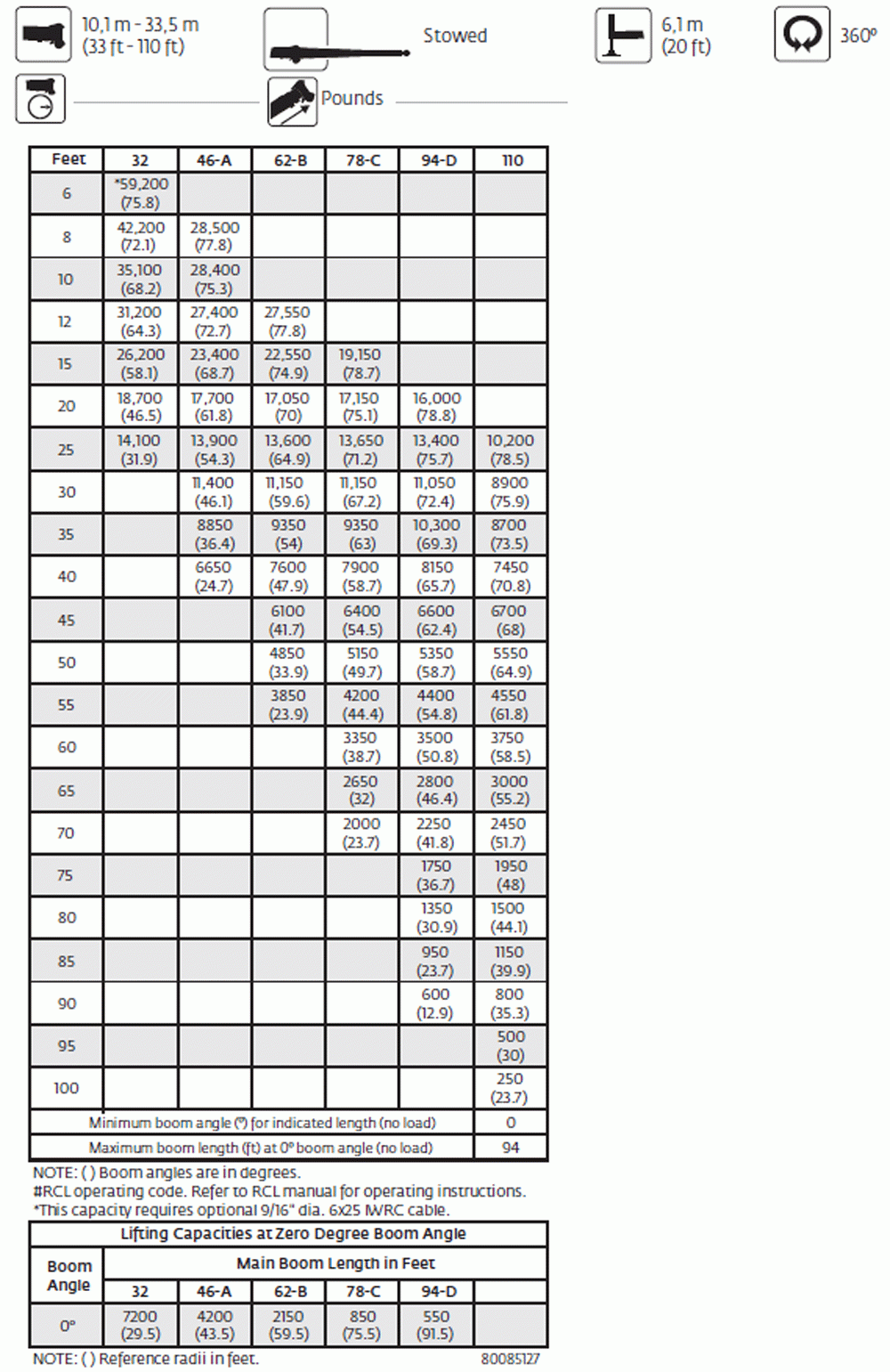

National NBT30110H-2 - Load Chart Jib Stowed

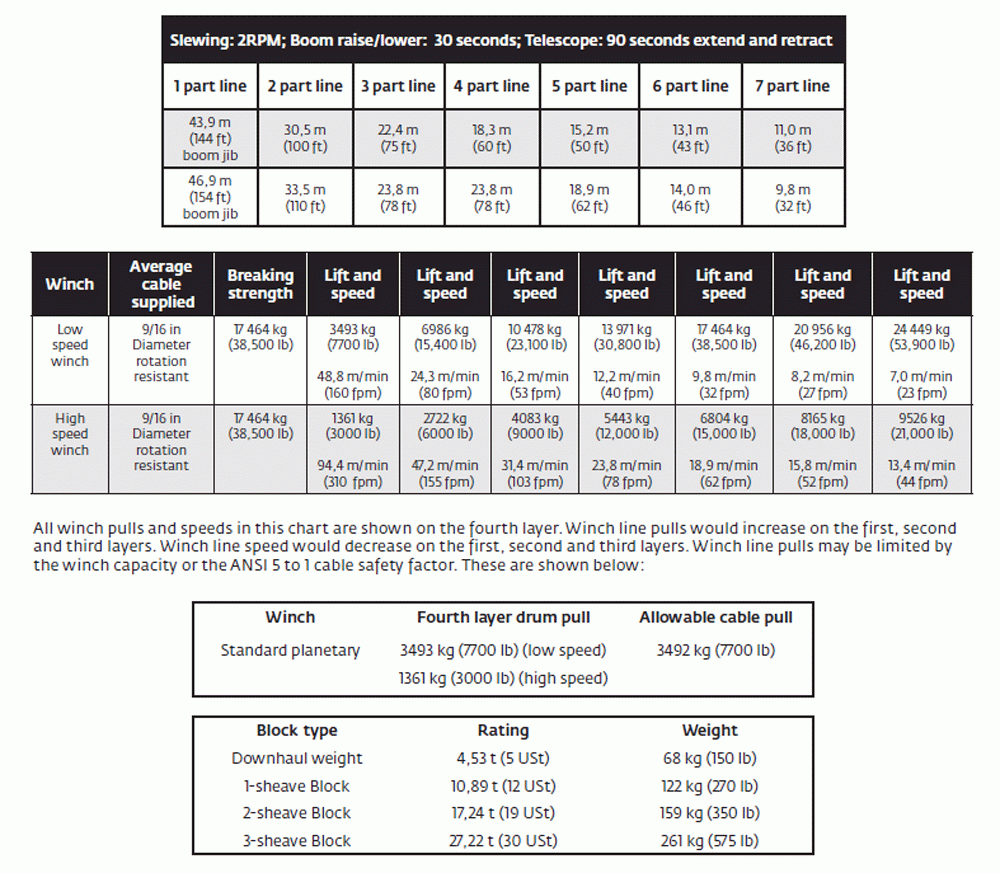

National NBT30110H-2 - Line Pull Chart

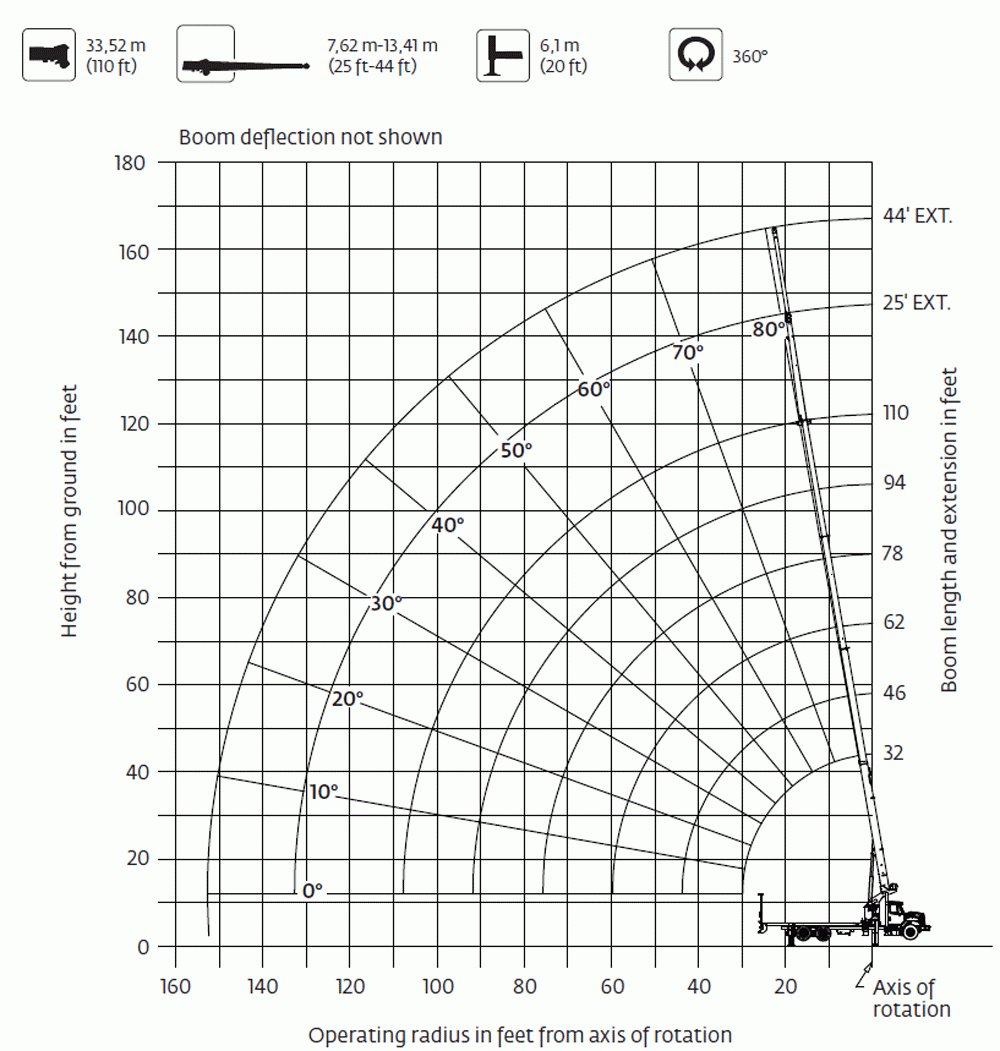

National NBT30110H-2 - Range Diagram

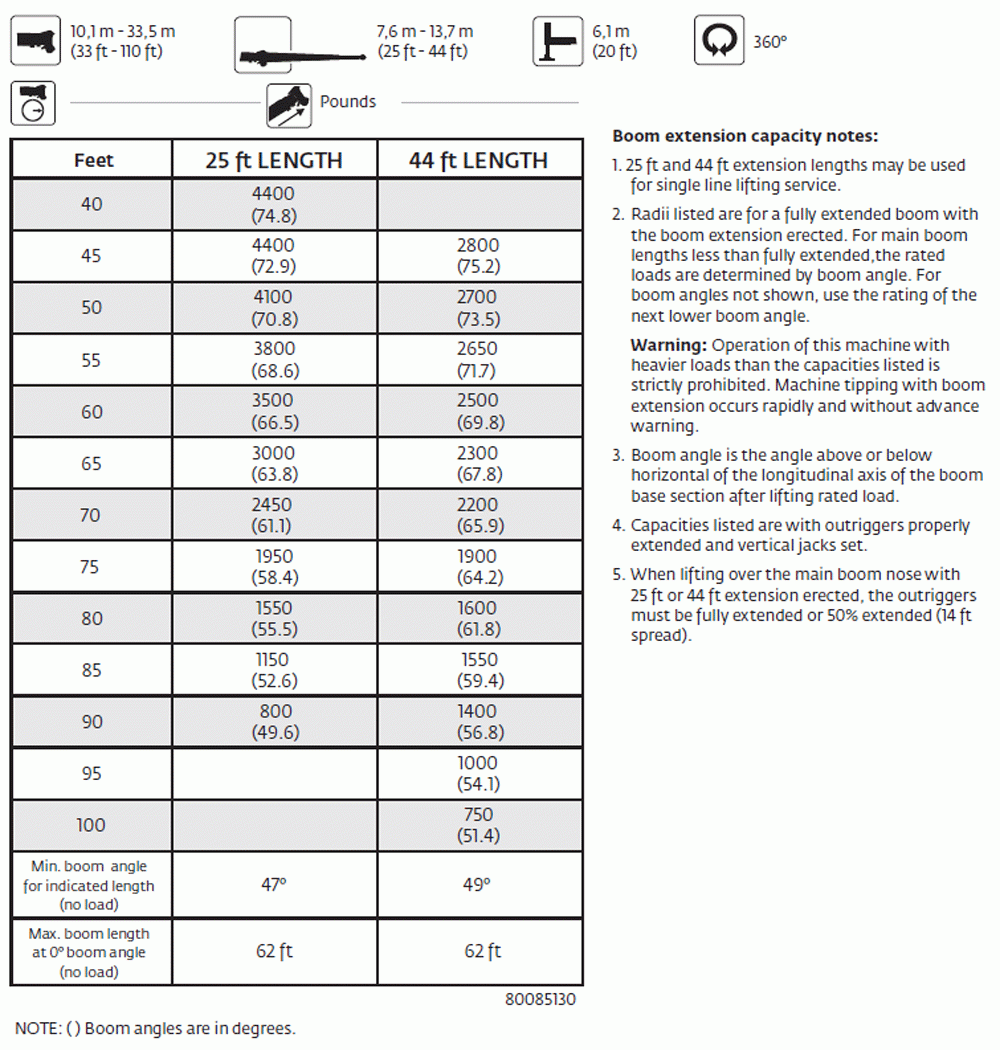

National NBT30110H-2 - Load Chart Jib Extended

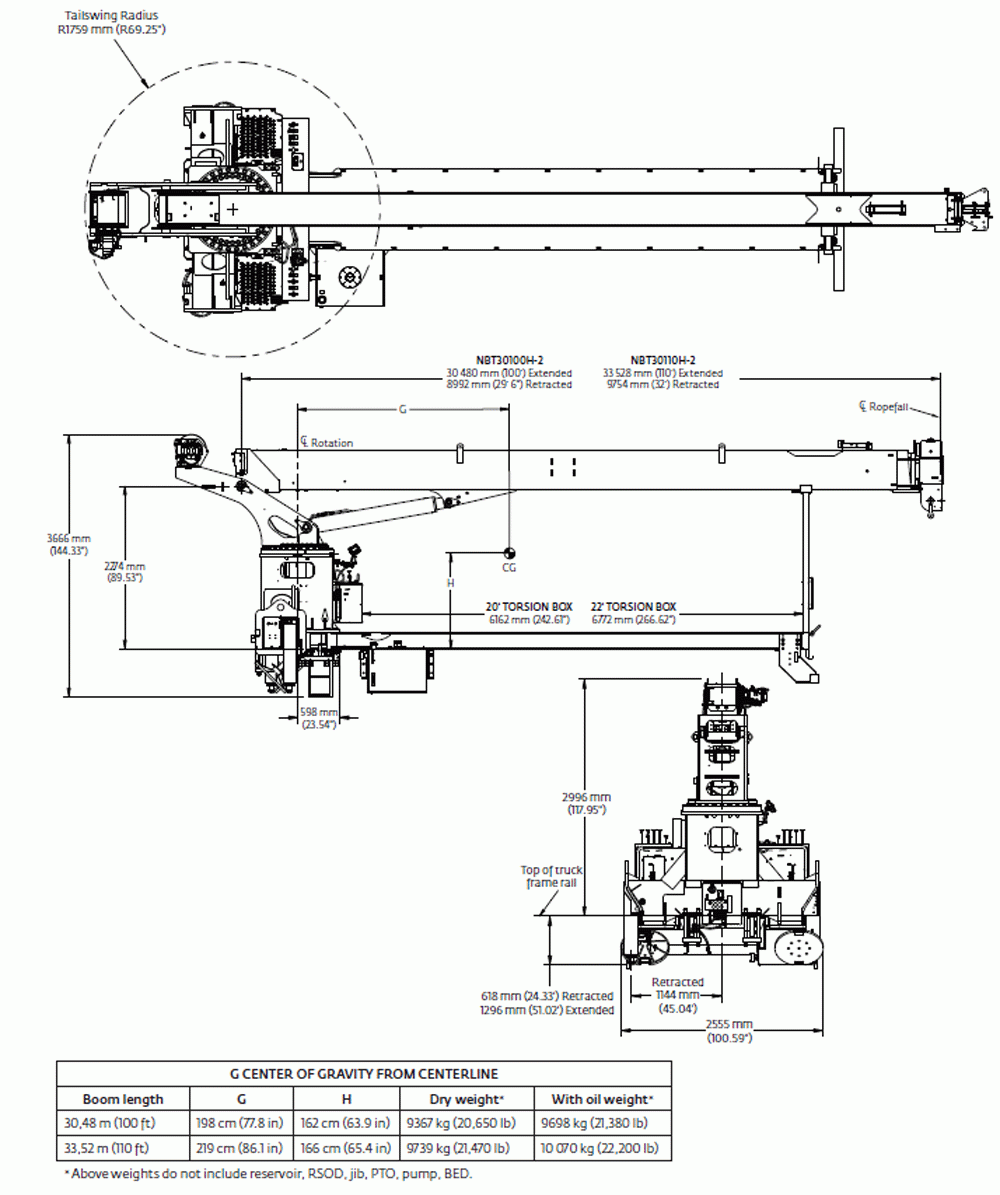

National NBT30110H-2 - Dimensions
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
