Model Information
| Model | NBT36103-1 |
| Capacity | 36 Ton |
| Boom Length | 4 SECTION 31' - 103' |
| Tip Height | 167' |
Download / Print (PDF)

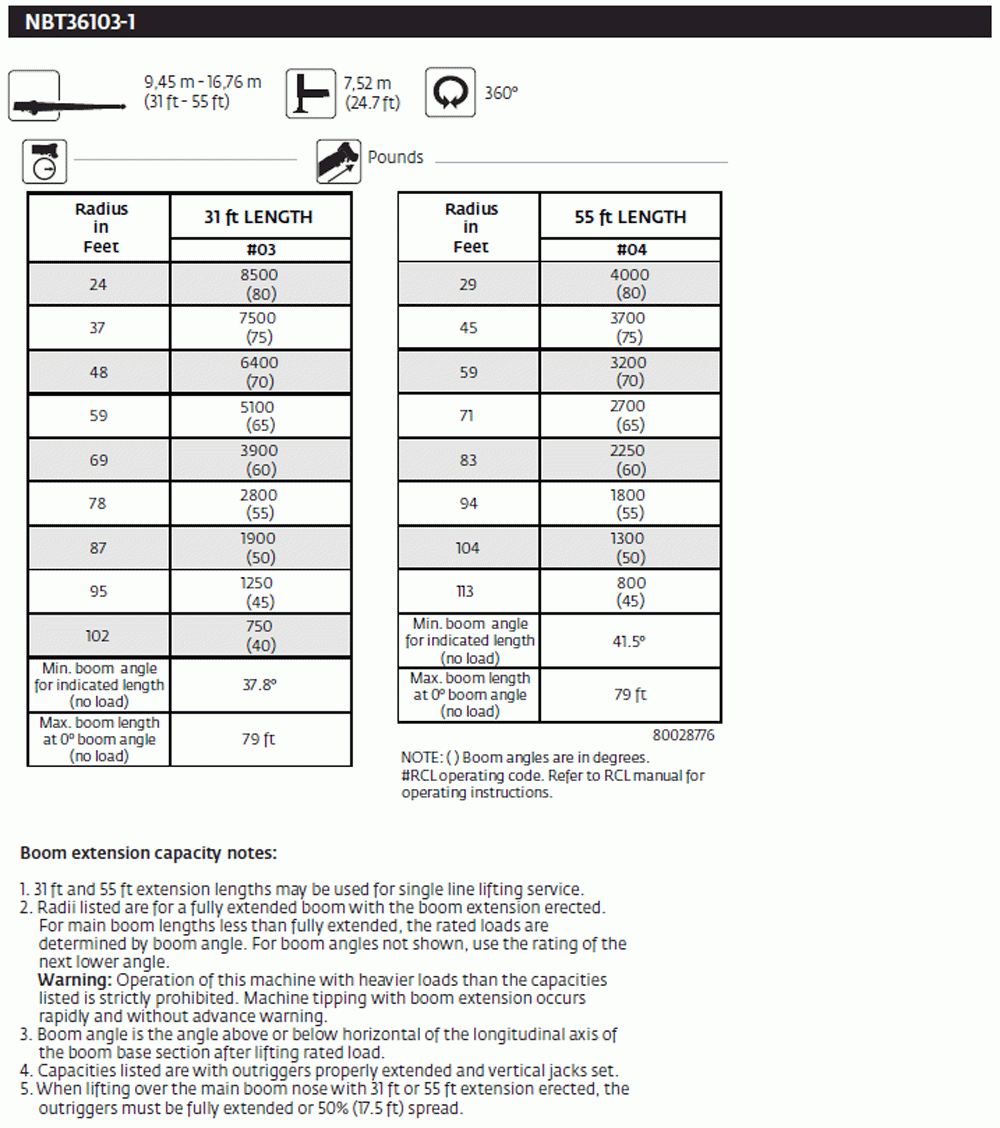

- National-NBT40-loadchart.pdfNational NBT36103-1 - Load Chart Jib Extended

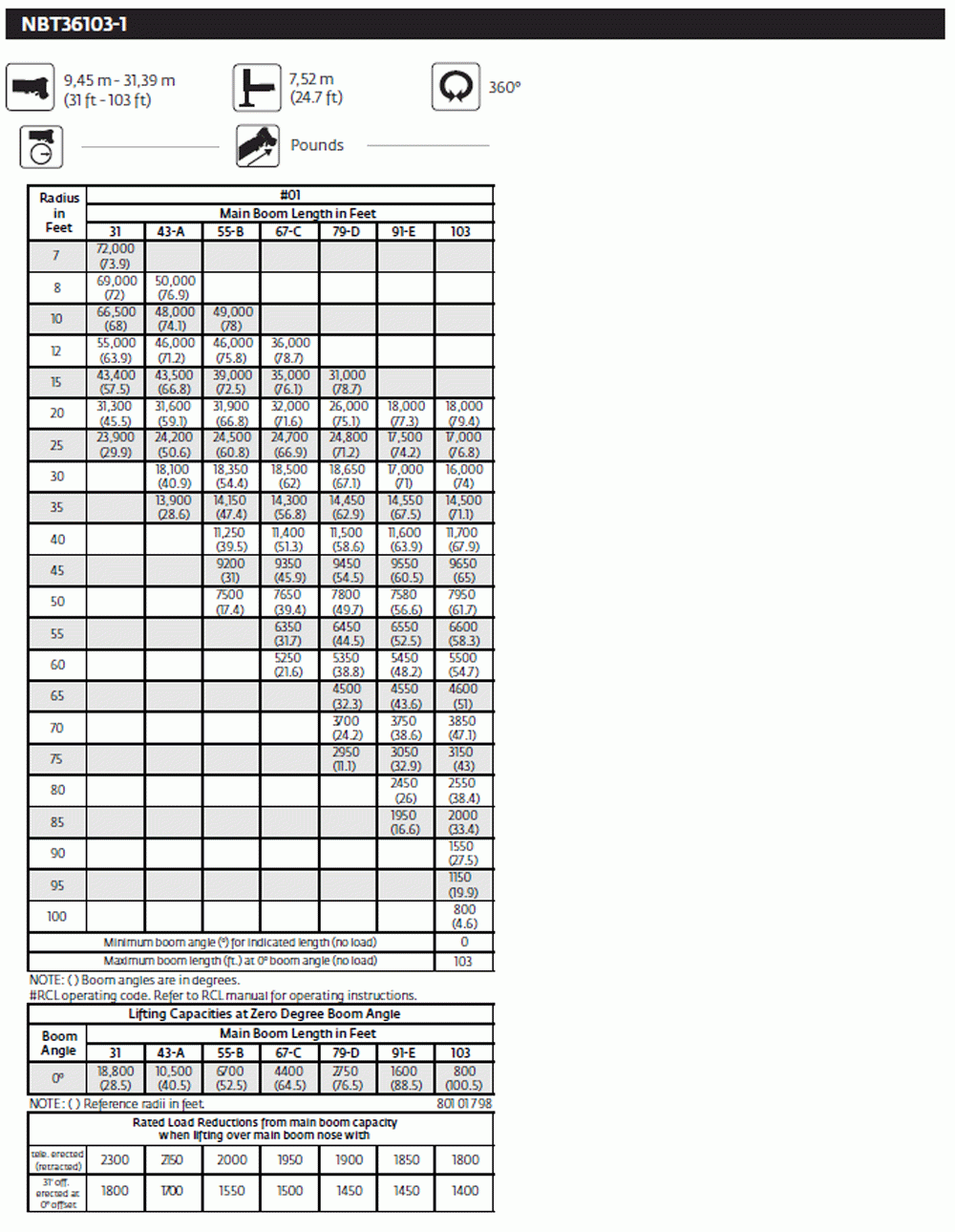

National NBT36103-1 - Load Chart

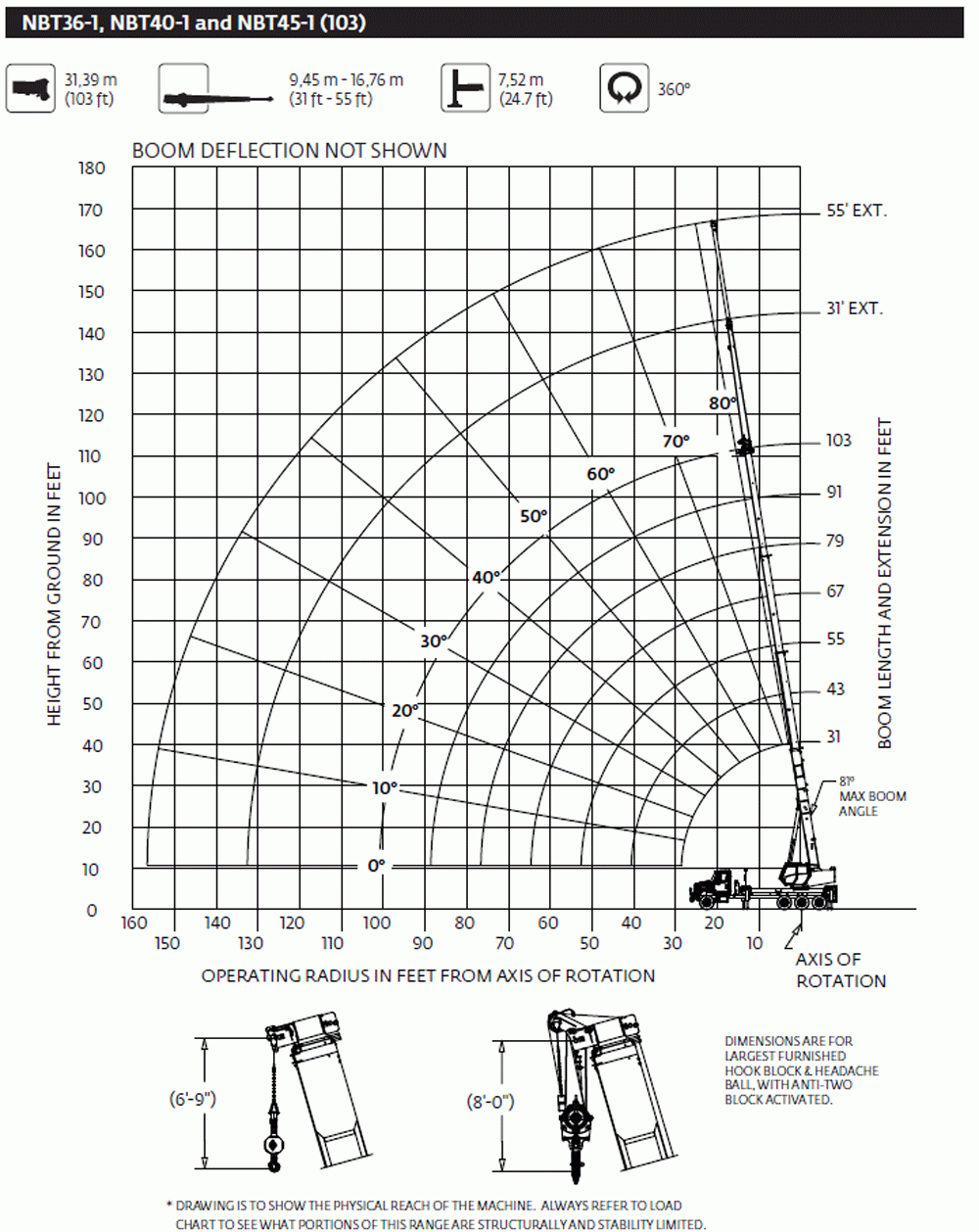

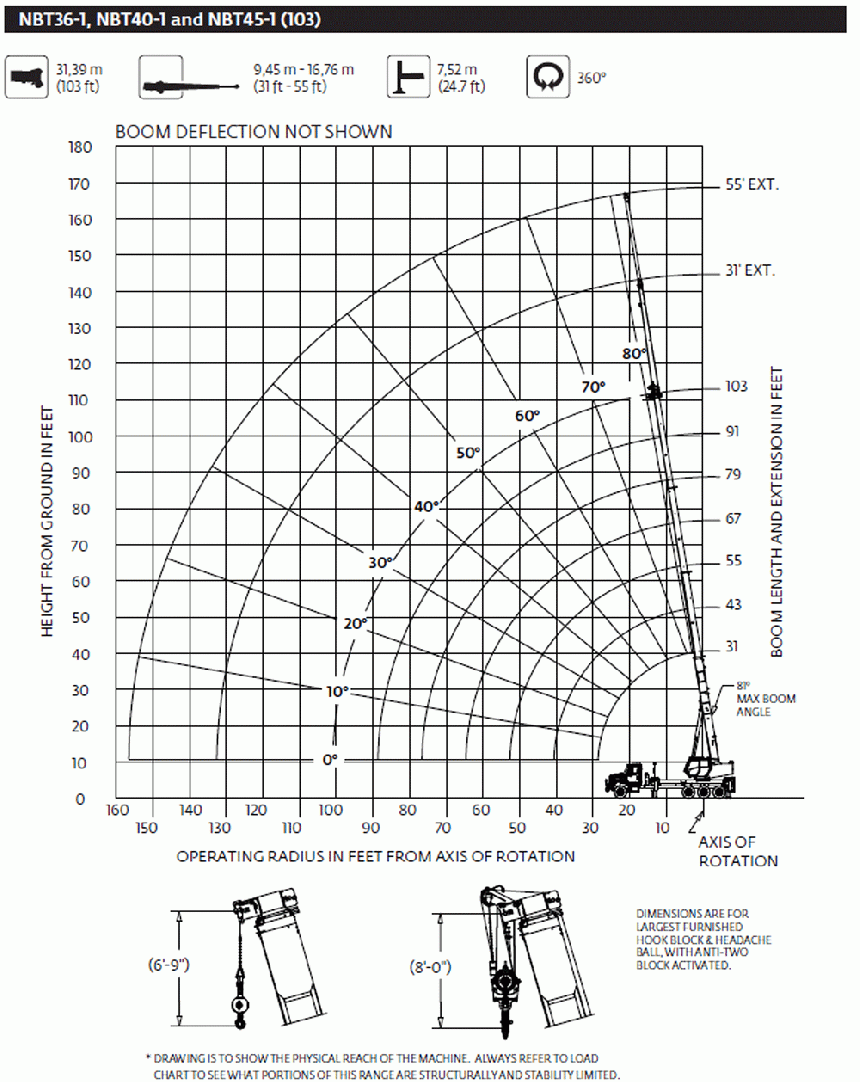

National NBT36103-1 - Range Diagram
National NBT36103-1 - Line Pull Chart

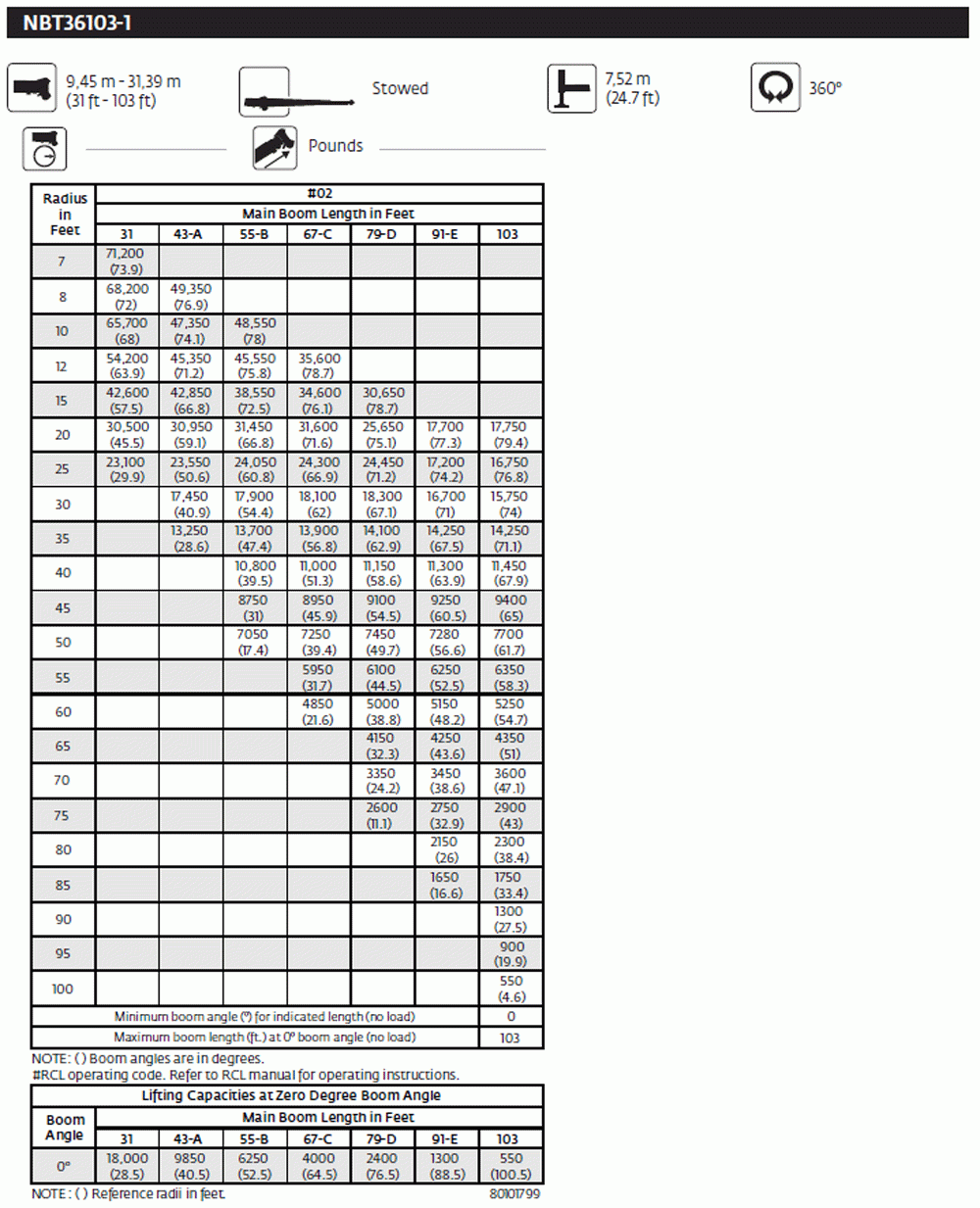

National NBT36103-1 - Load Chart Jib Stowed
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
