Model Information
| Model | NBT45103 |
| Capacity | 45 Ton |
| Boom Length | 4 SECTION 31' - 103' |
| Tip Height | 167' |
Download / Print (PDF)

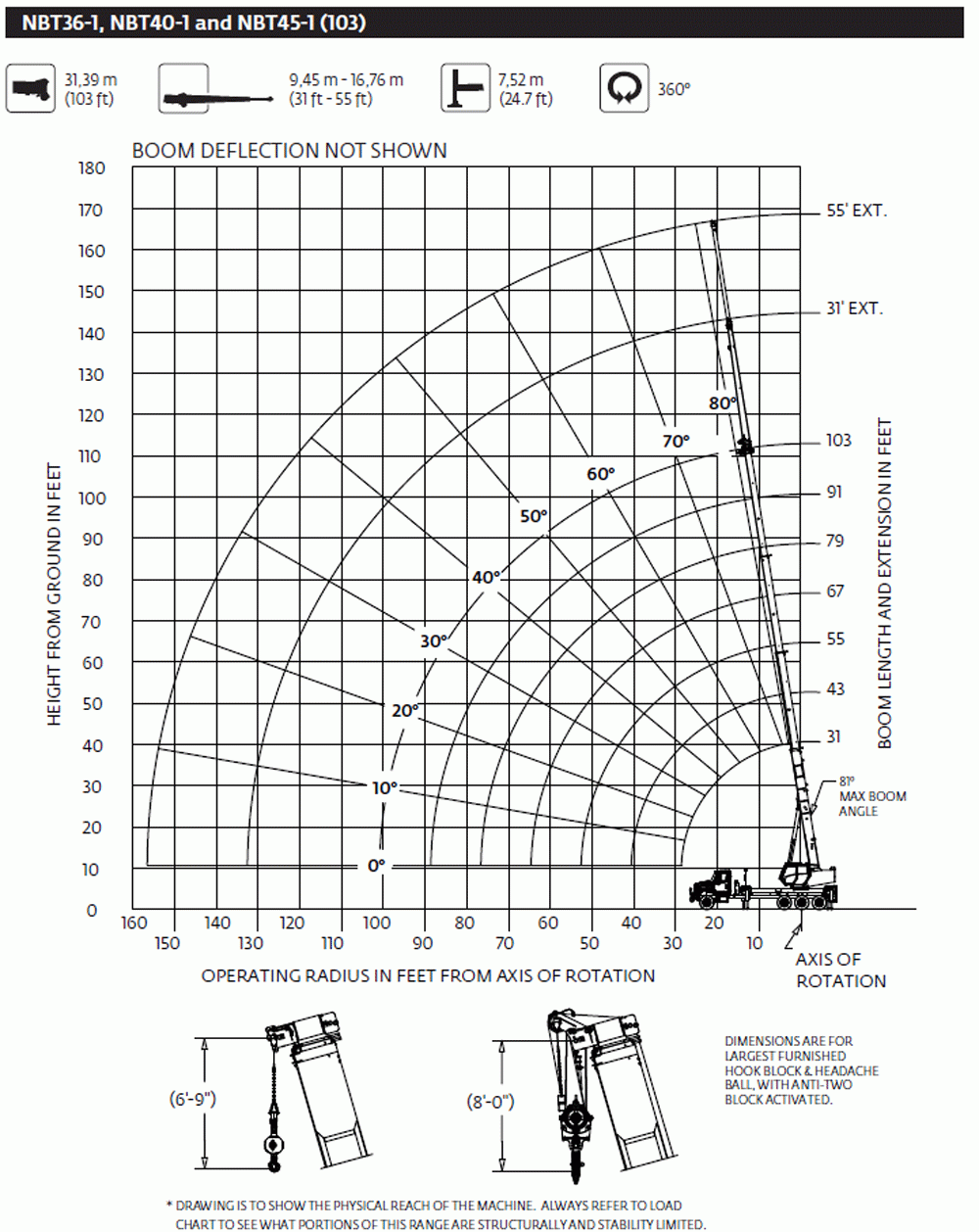

- National-NBT40-loadchart.pdfNational NBT45103-1 - Range Diagram

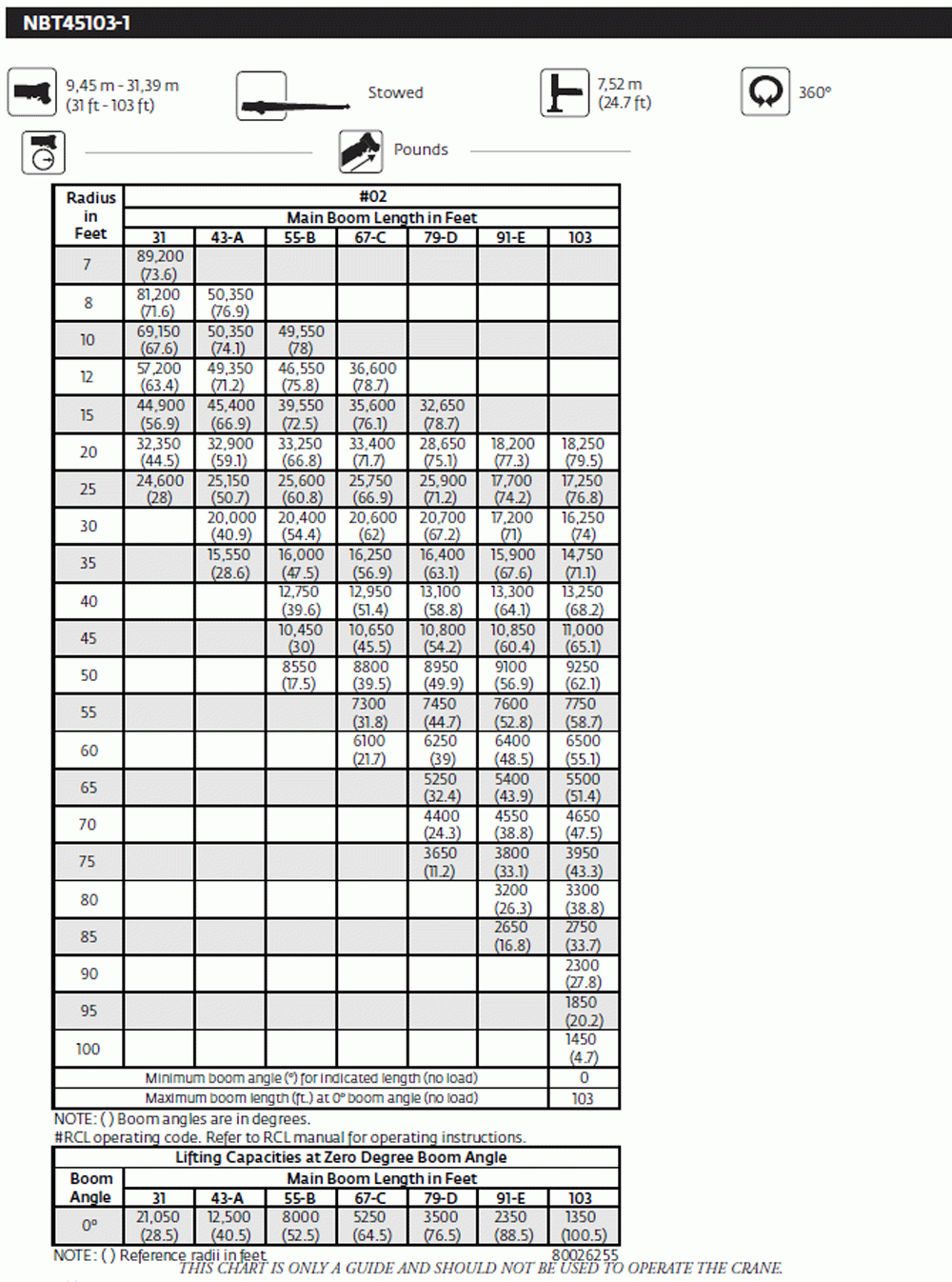

National NBT45103-1 - Load Chart Jib Stowed

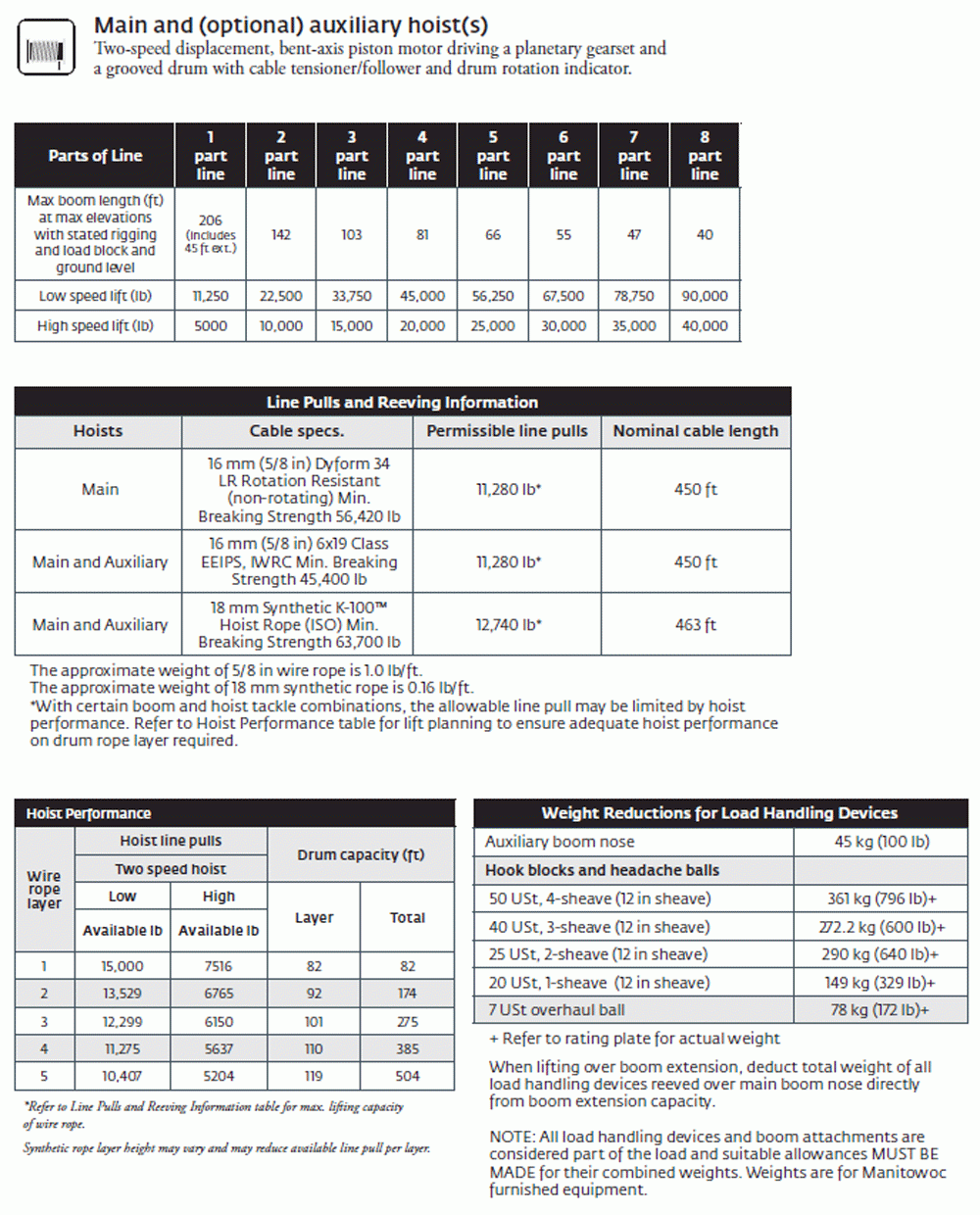

National NBT45103-1 - Line Pull Chart

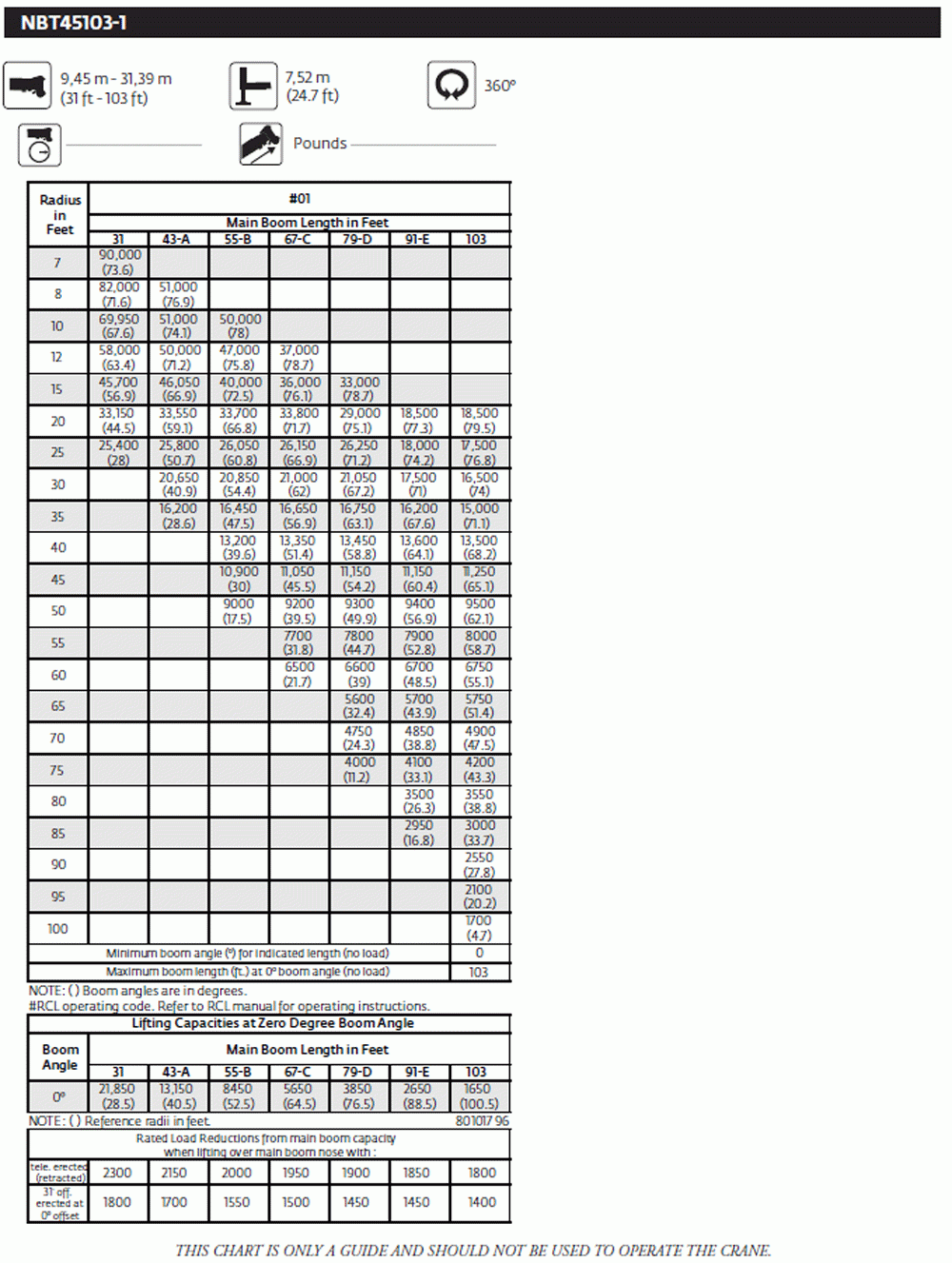

National NBT45103-1 - Load Chart

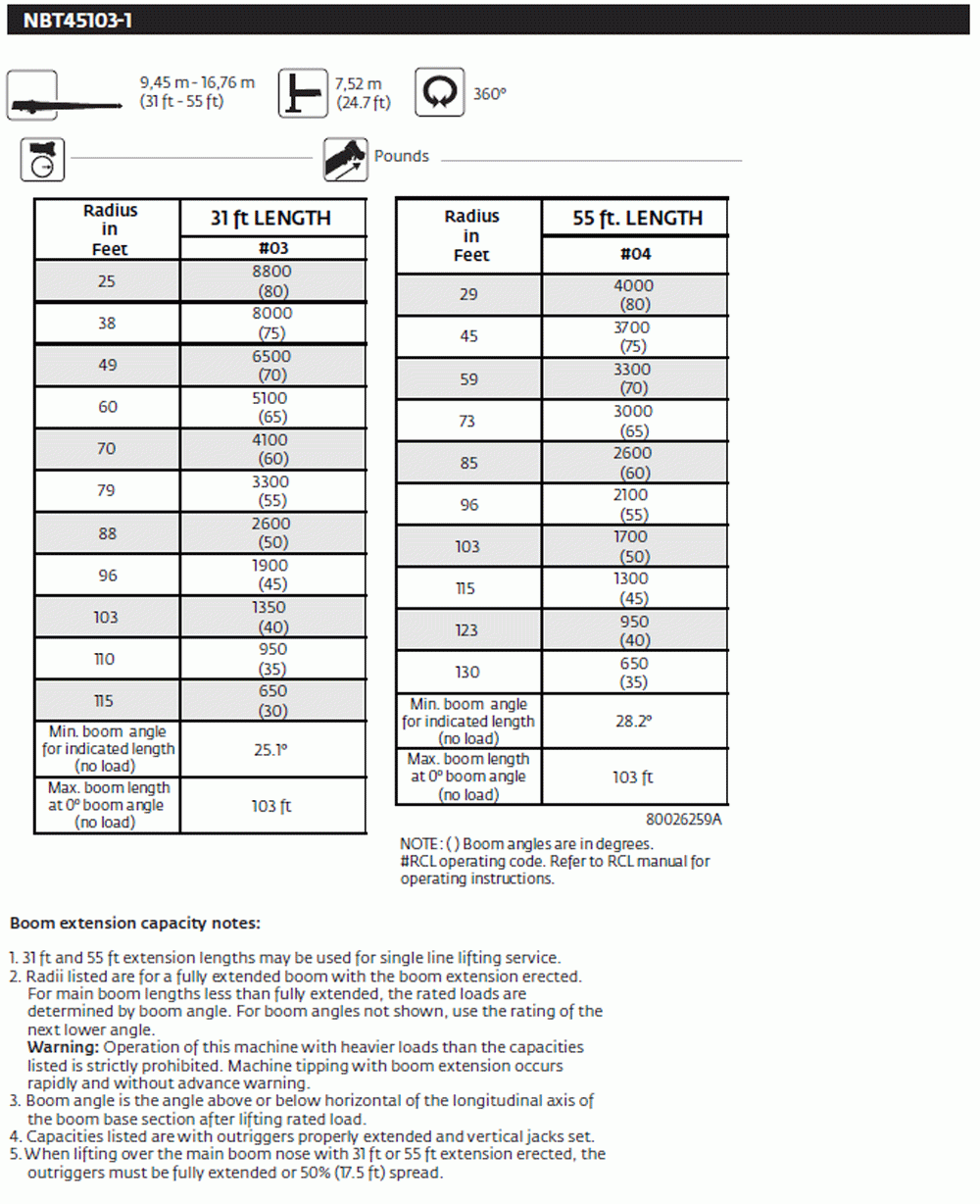

National NBT45103-1 - Load Chart Jib Extended
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
