Model Information
| Model | NBT45142-1 |
| Capacity | 45 Ton |
| Boom Length | 5 SECTION 34' - 142' |
| Tip Height | 204' |
Download / Print (PDF)

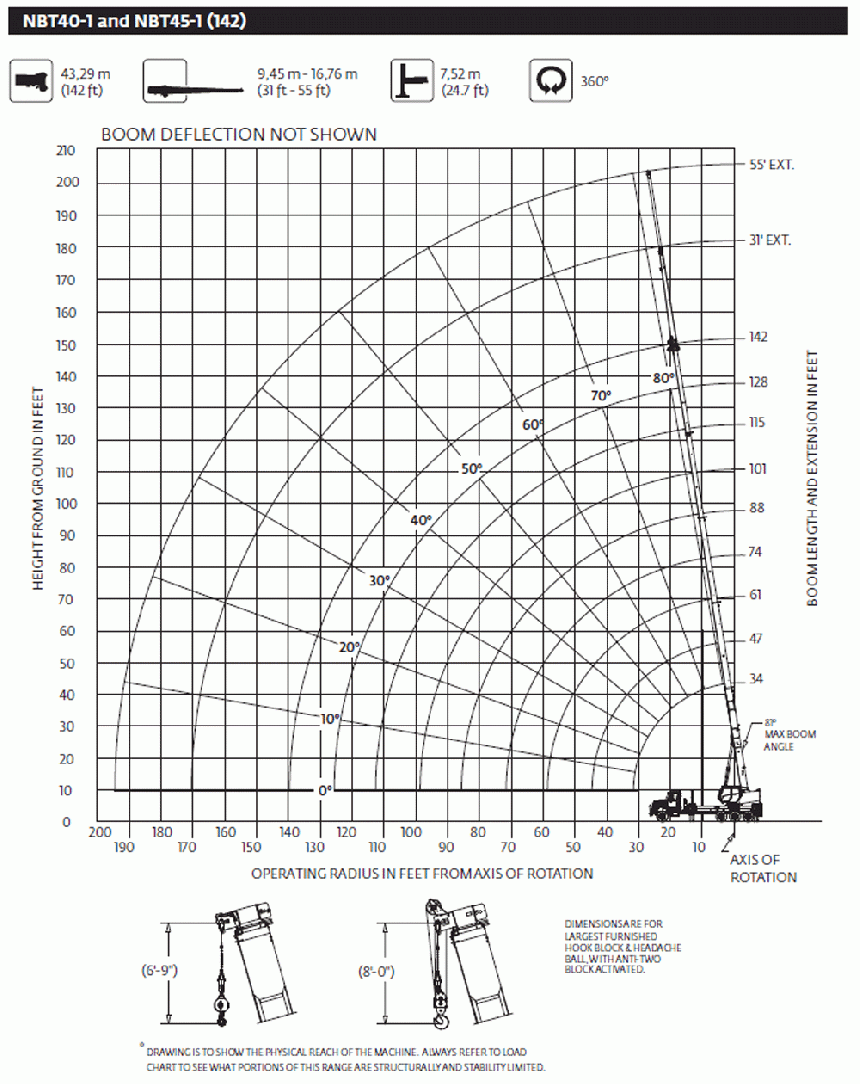

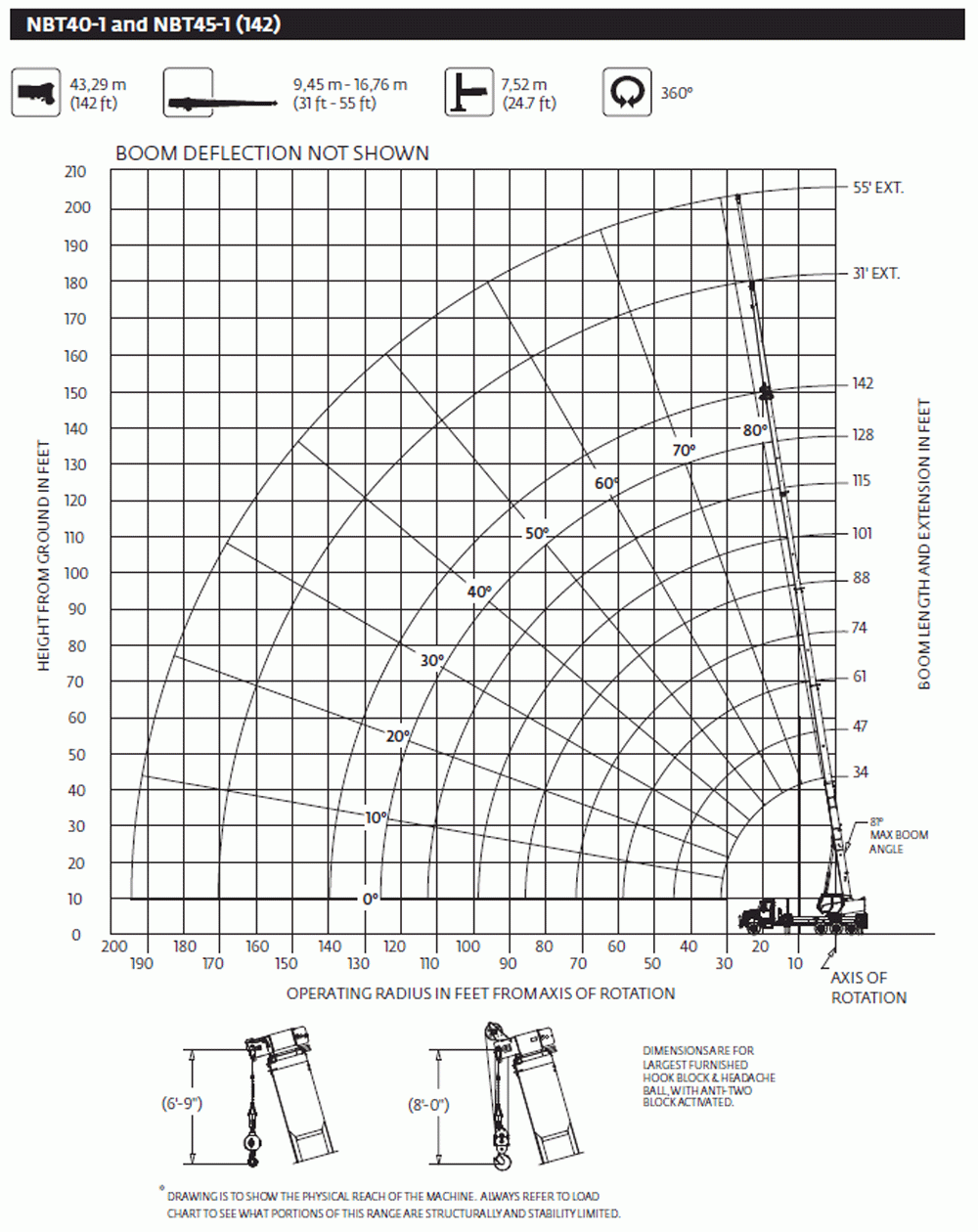

- National-NBT40-loadchart.pdfNBT45142-1 - Range Diagram

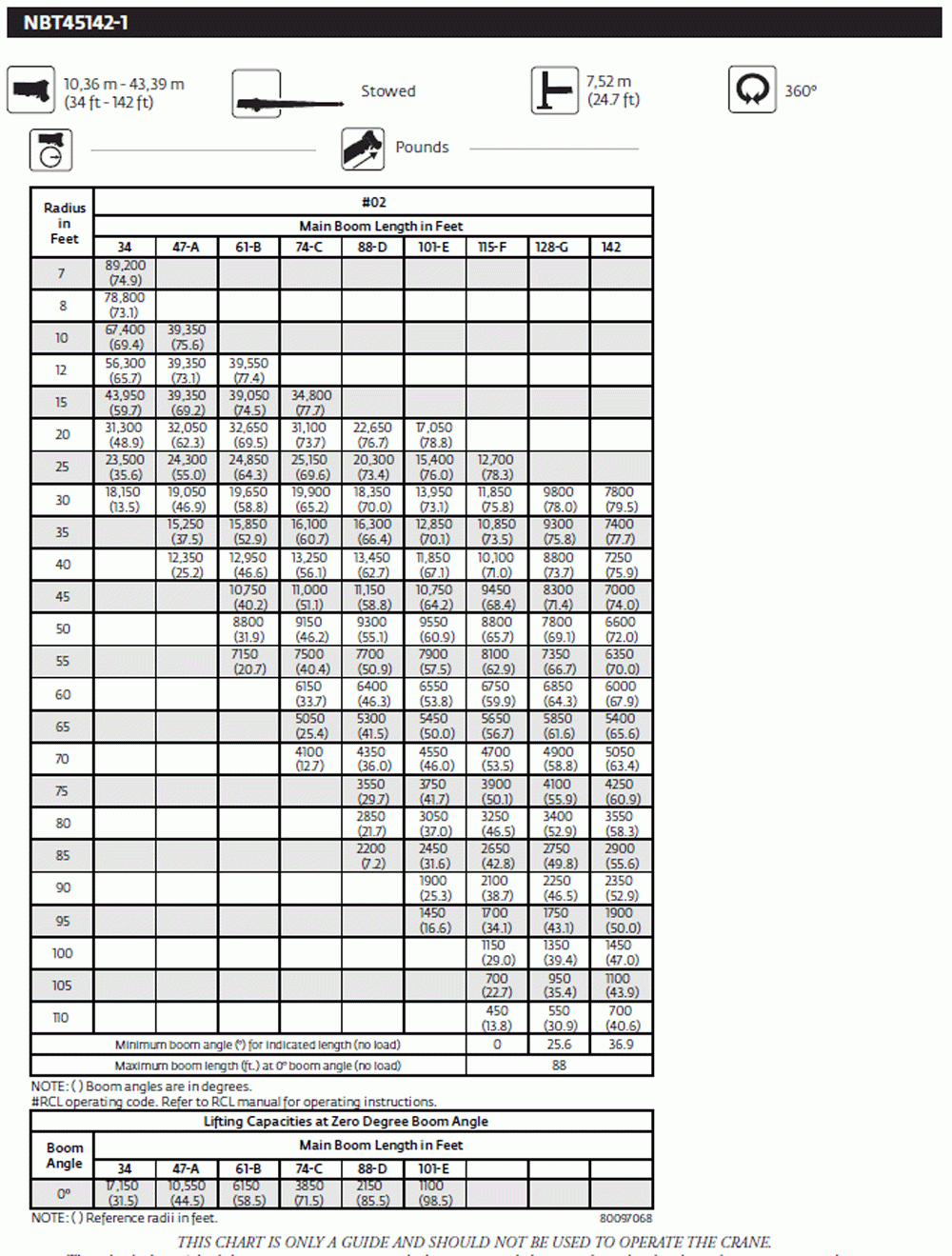

NBT45142-1 - Load Chart Jib Stowed

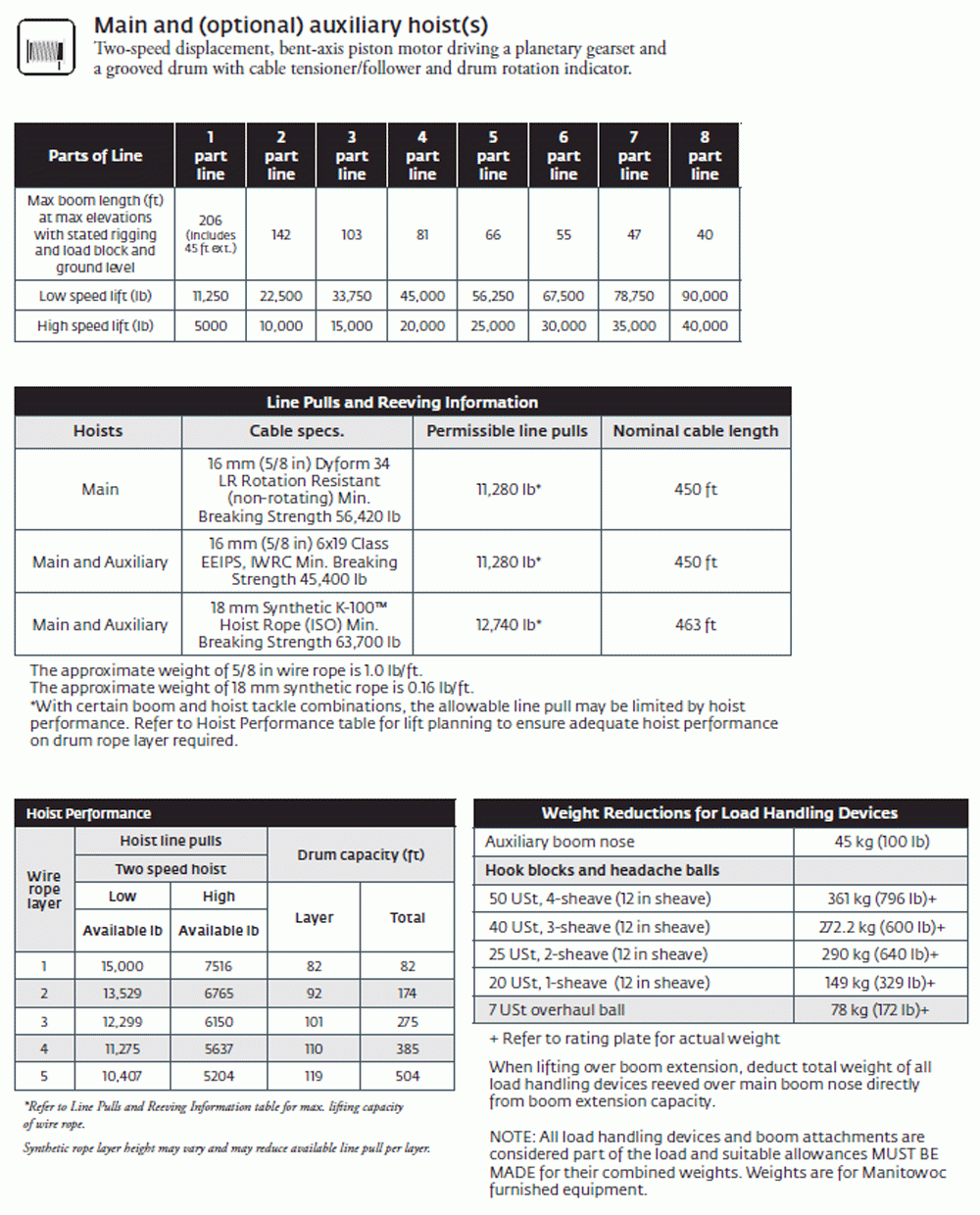

NBT45142-1 - Line Pull Chart

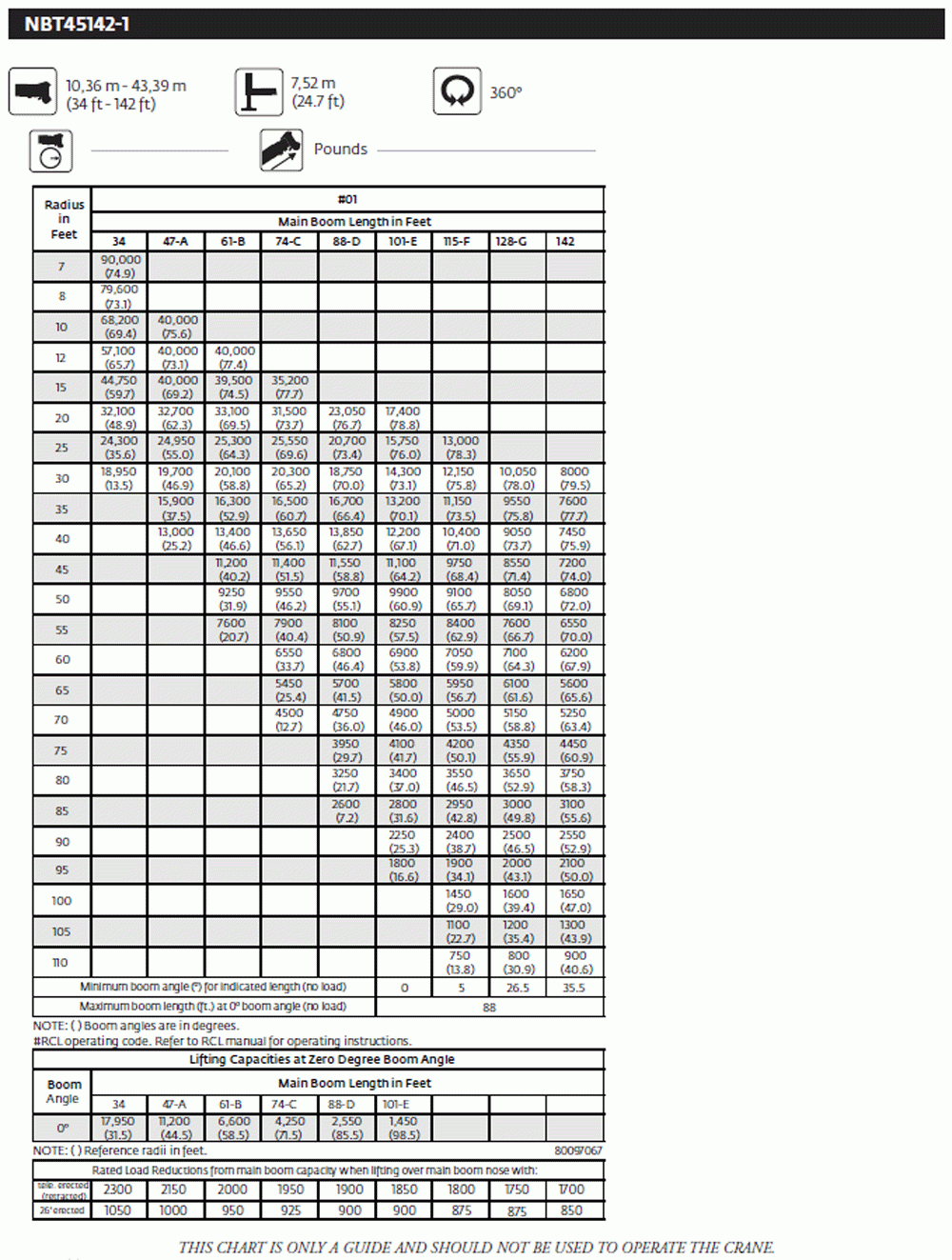

NBT45142-1 - Load Chart

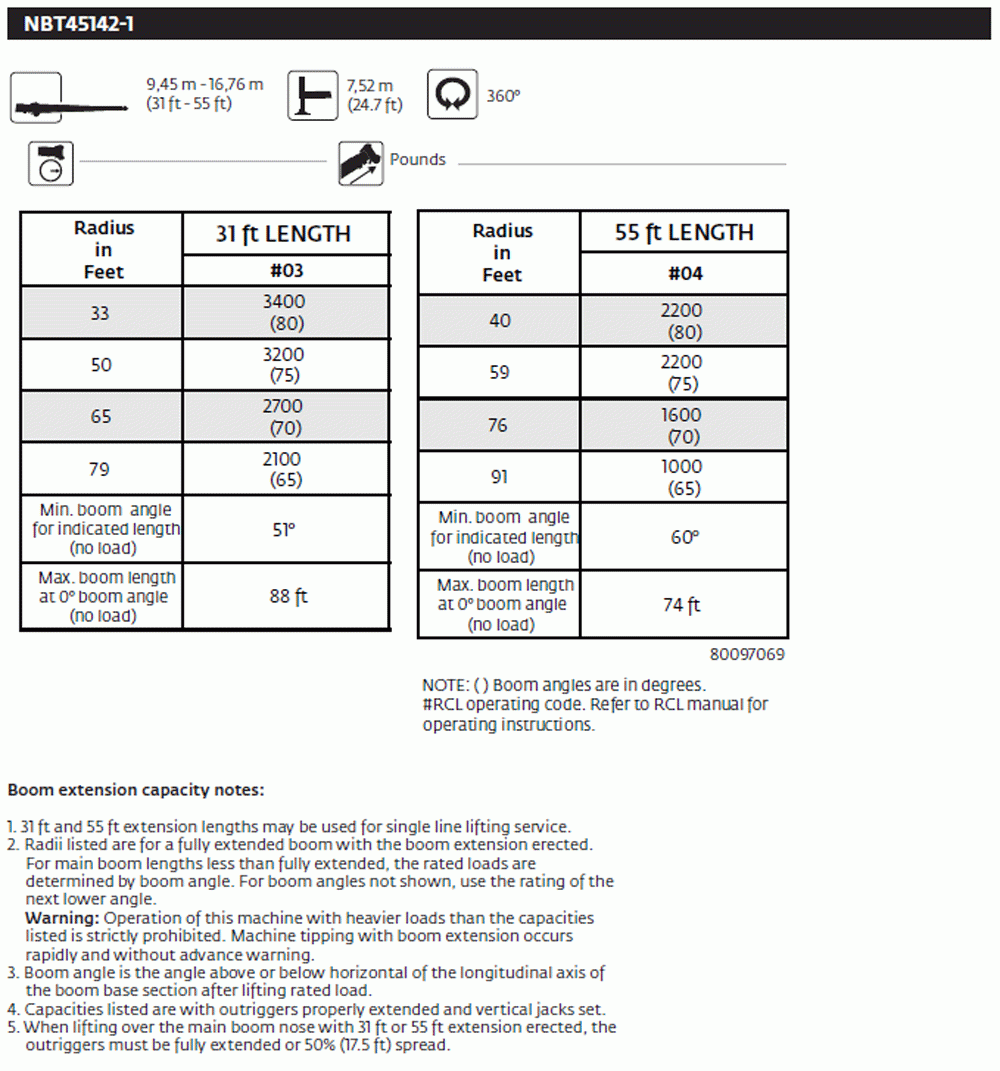

NBT45142-1 - Load Chart Jib Extended

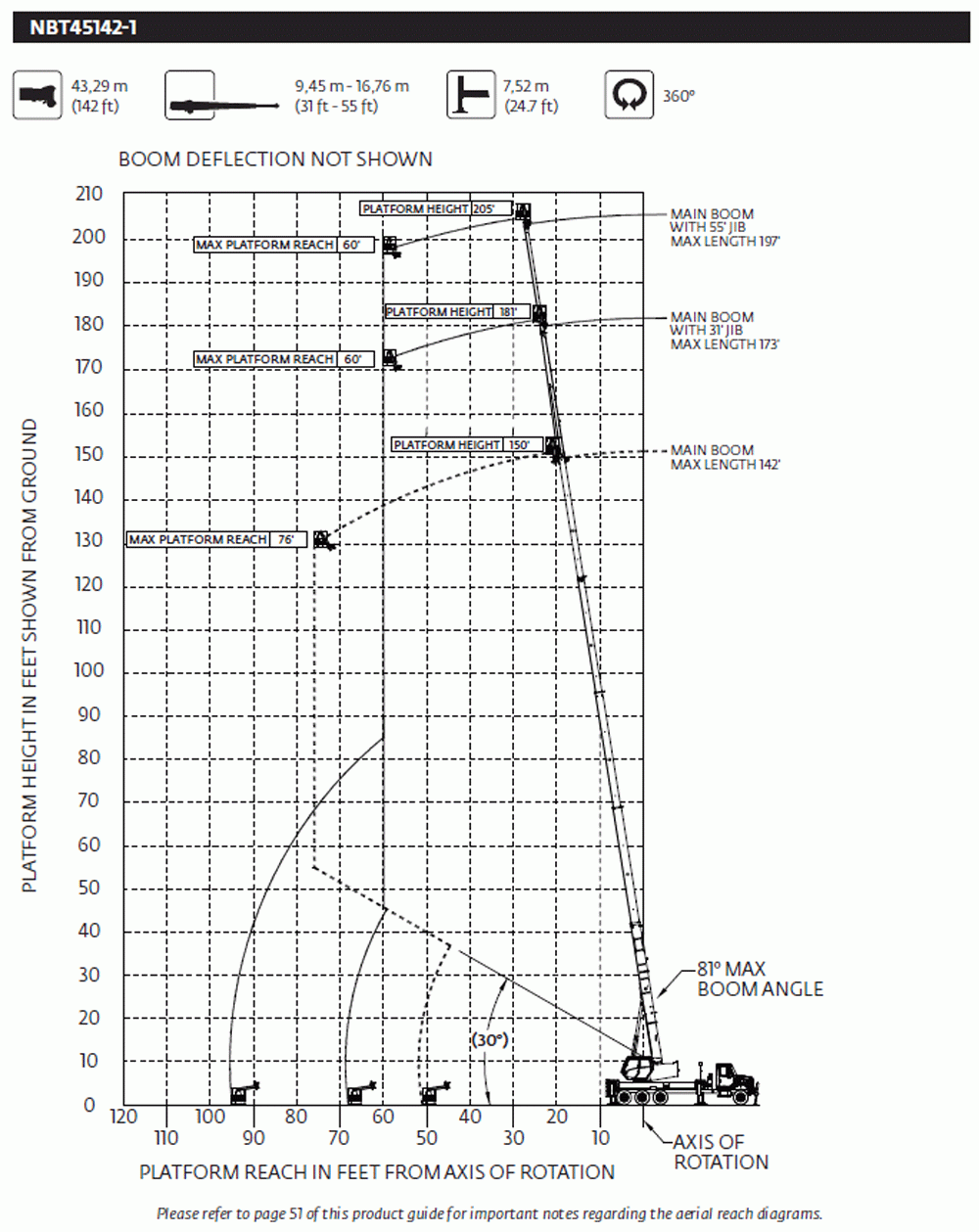

NBT45142-1 - Aerial Range Chart
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
