Model Information
| Model | NBT50102 |
| Capacity | 50 Ton |
| Boom Length | 4 SECTION 31'2" - 102' |
| Tip Height | 154' |
Download / Print (PDF)

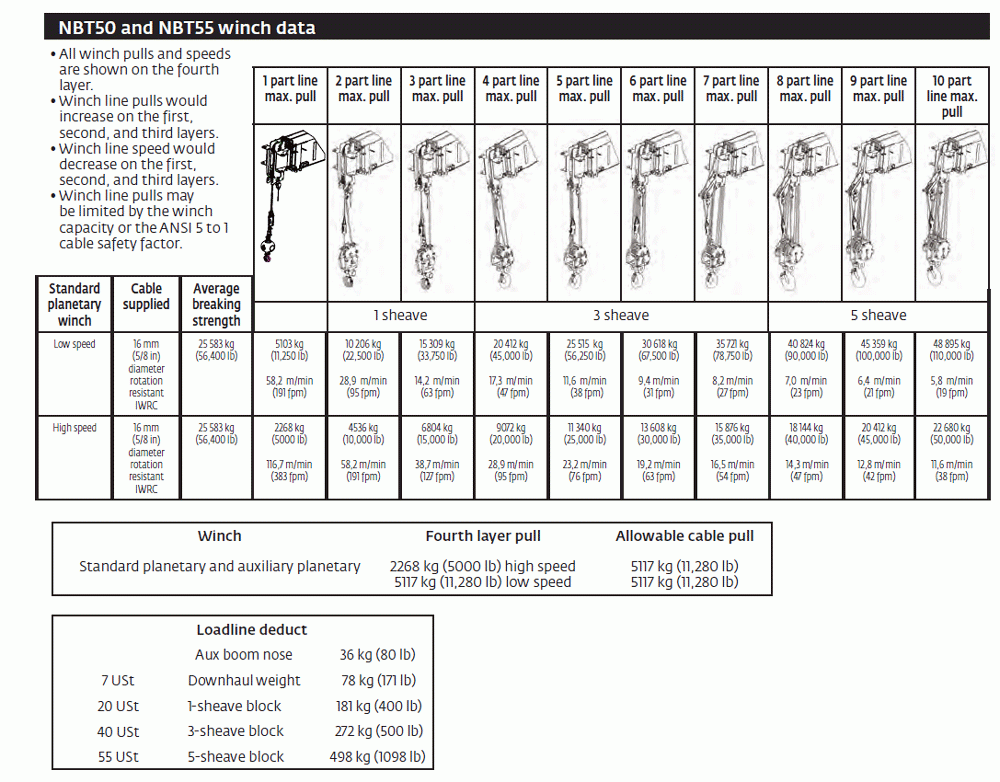

- National-NBT50-loadchart.pdfNational NBT50102 - Line Pull Chart
National NBT50102 - Load Chart - No Counterweight - Jib Stowed - 360 Degree

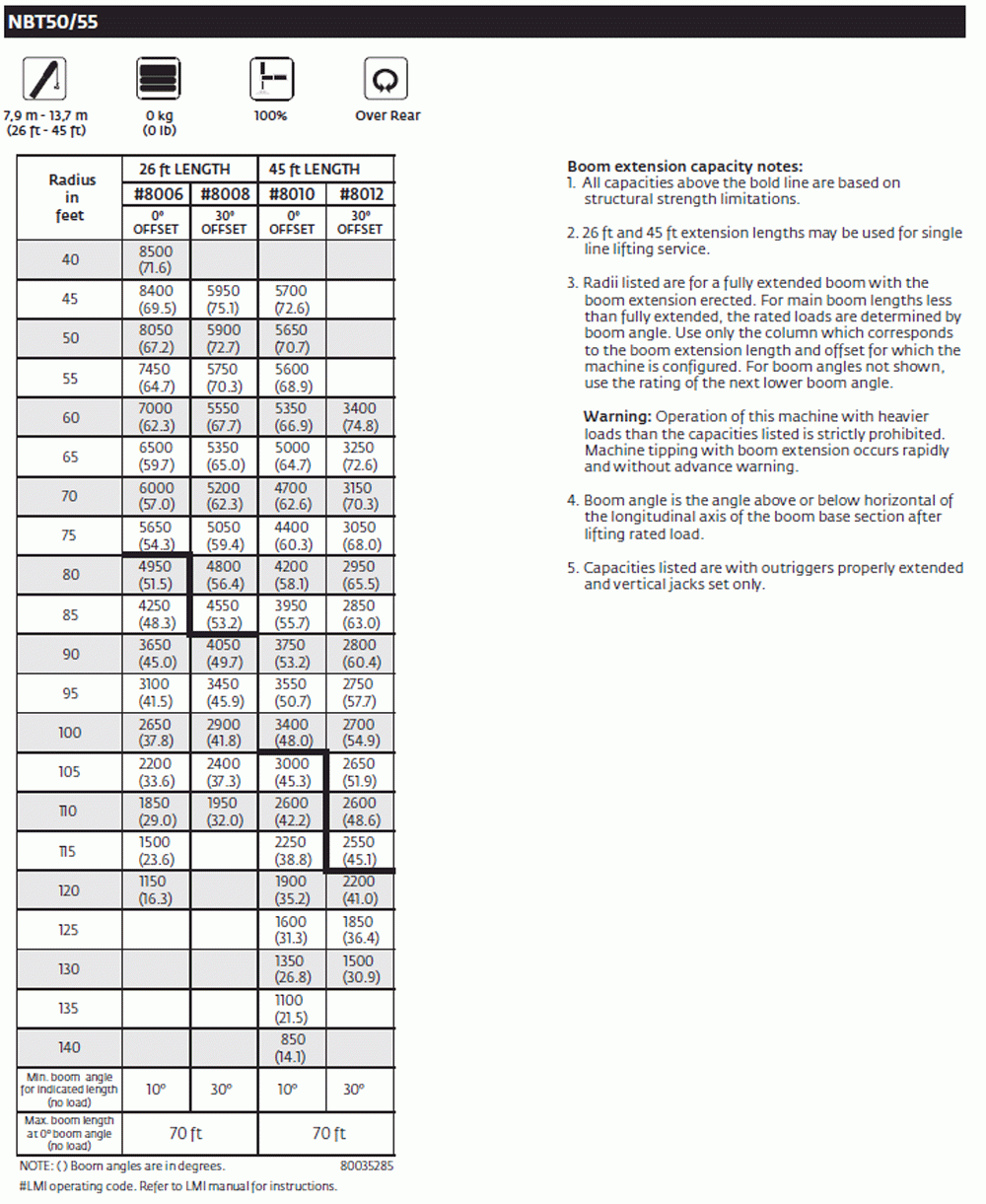

National NBT50102 - Load Chart - No Counterweight - Jib Extended - Over Rear

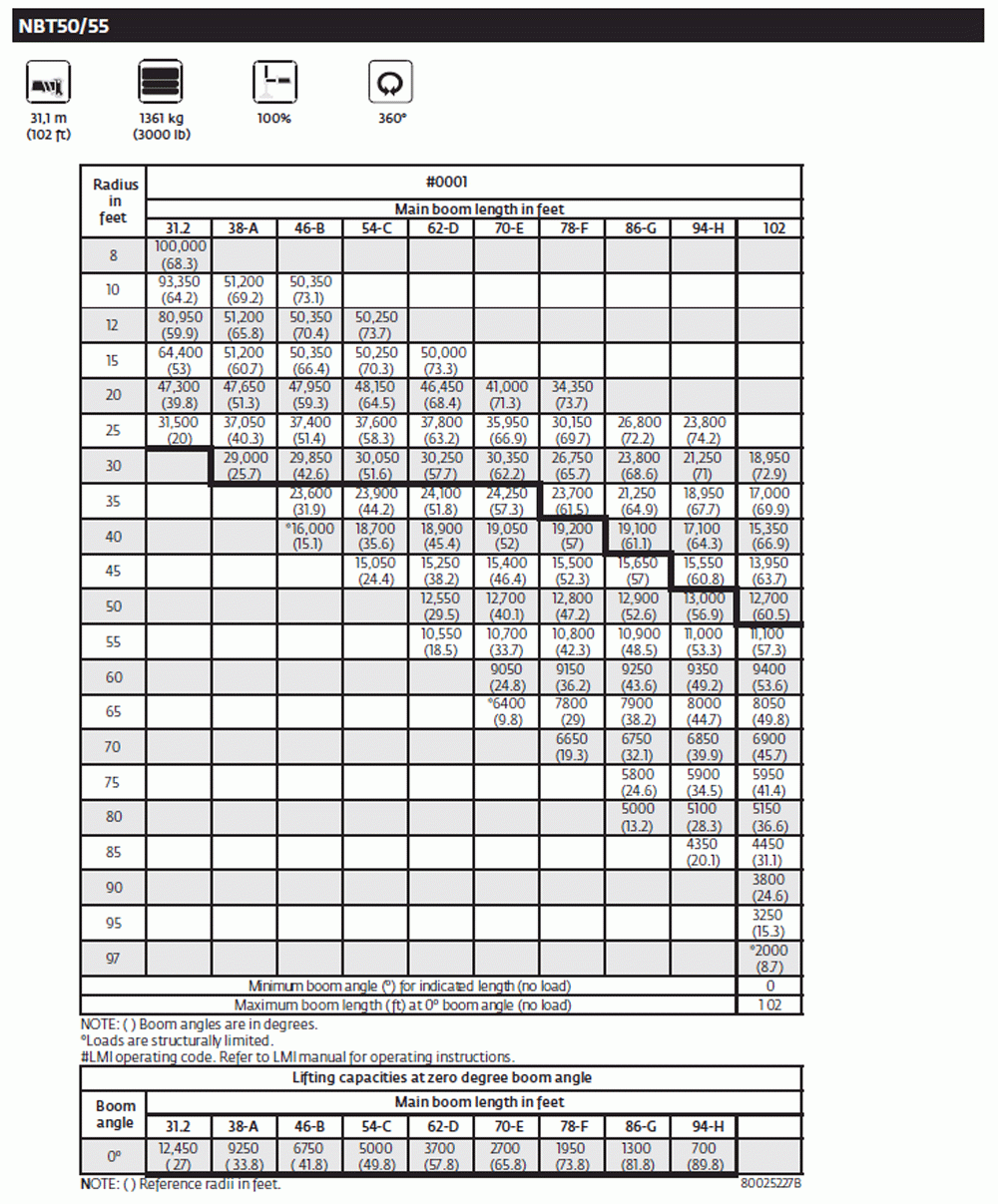

National NBT50102 - 3K Counterweight - 360 Degree

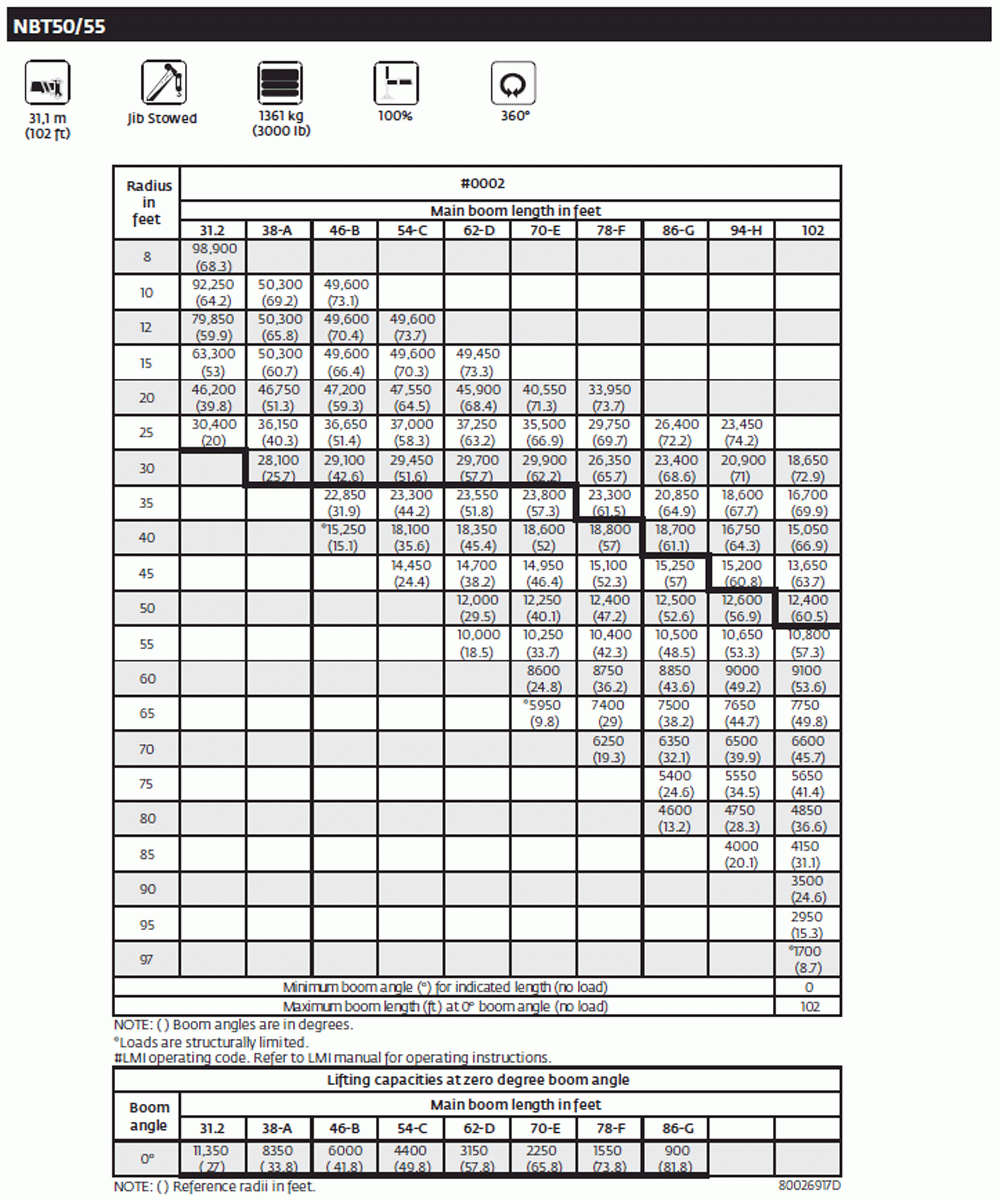

National NBT50102 - Load Chart - 3K Counterweight - Jib Stowed - 360 Degree

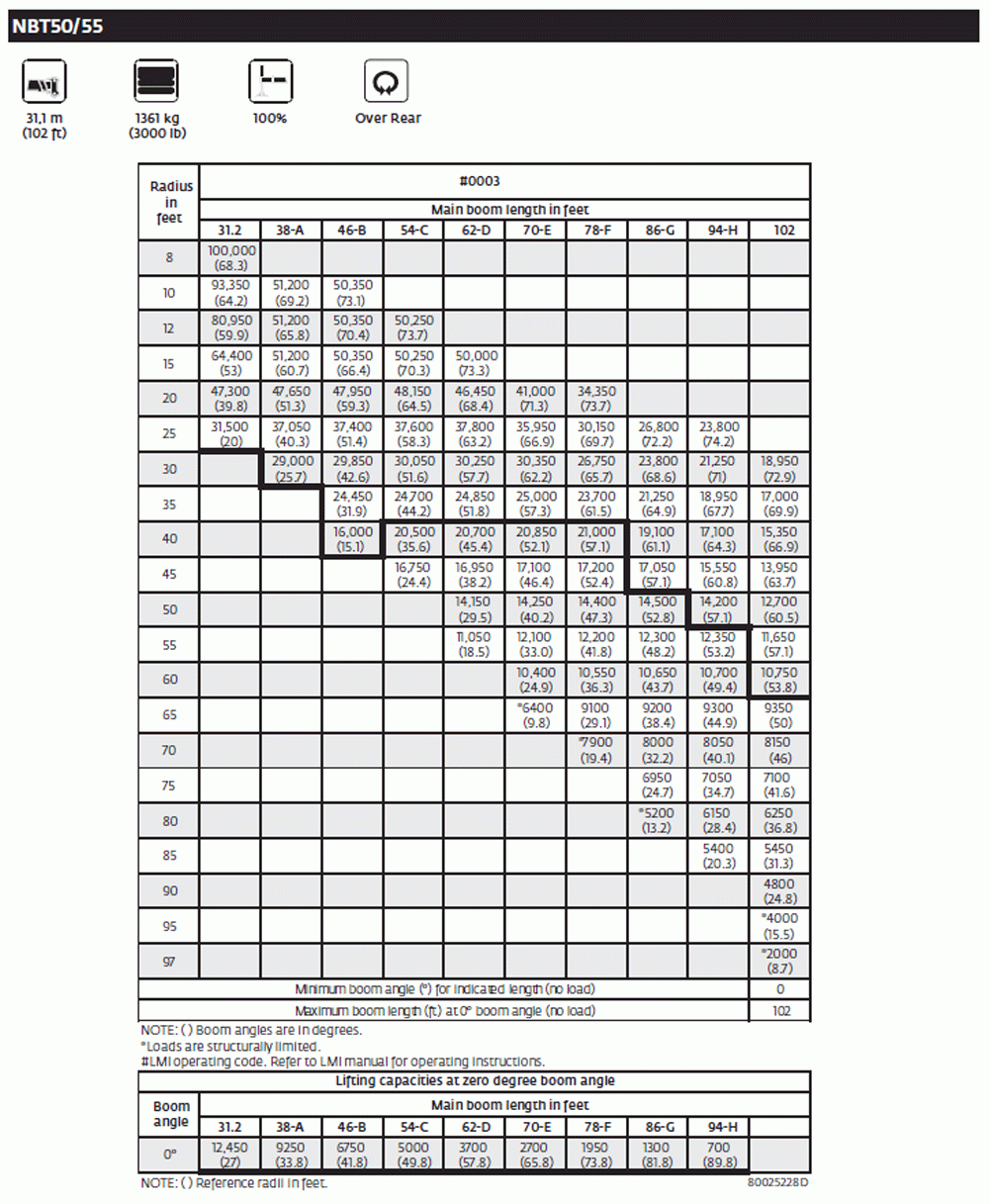

National NBT50102 - Load Chart - 3K Counterweight - Over Rear

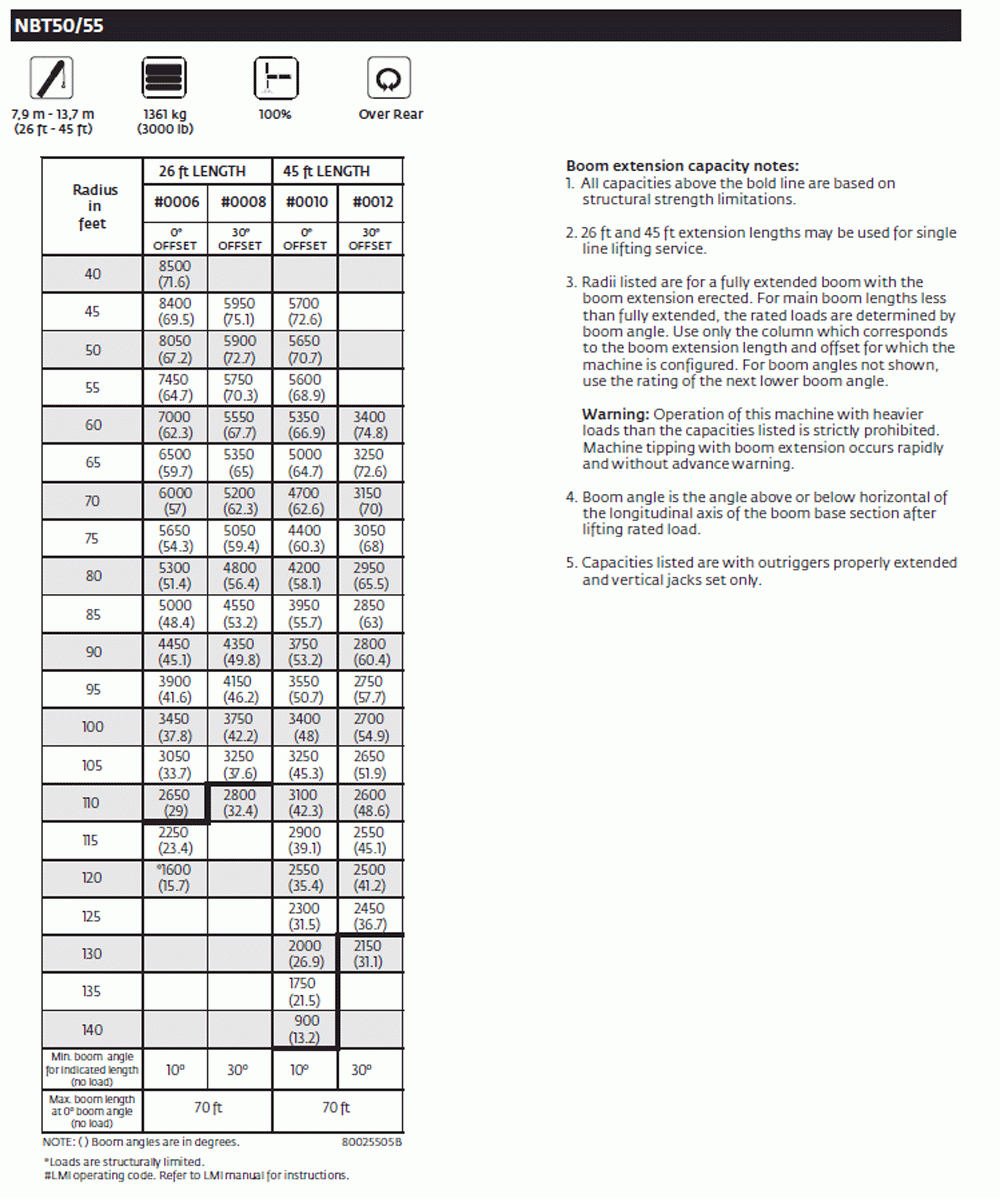

National NBT50102 - Load Chart - 3K Counterweight - Jib Extended - Over Rear

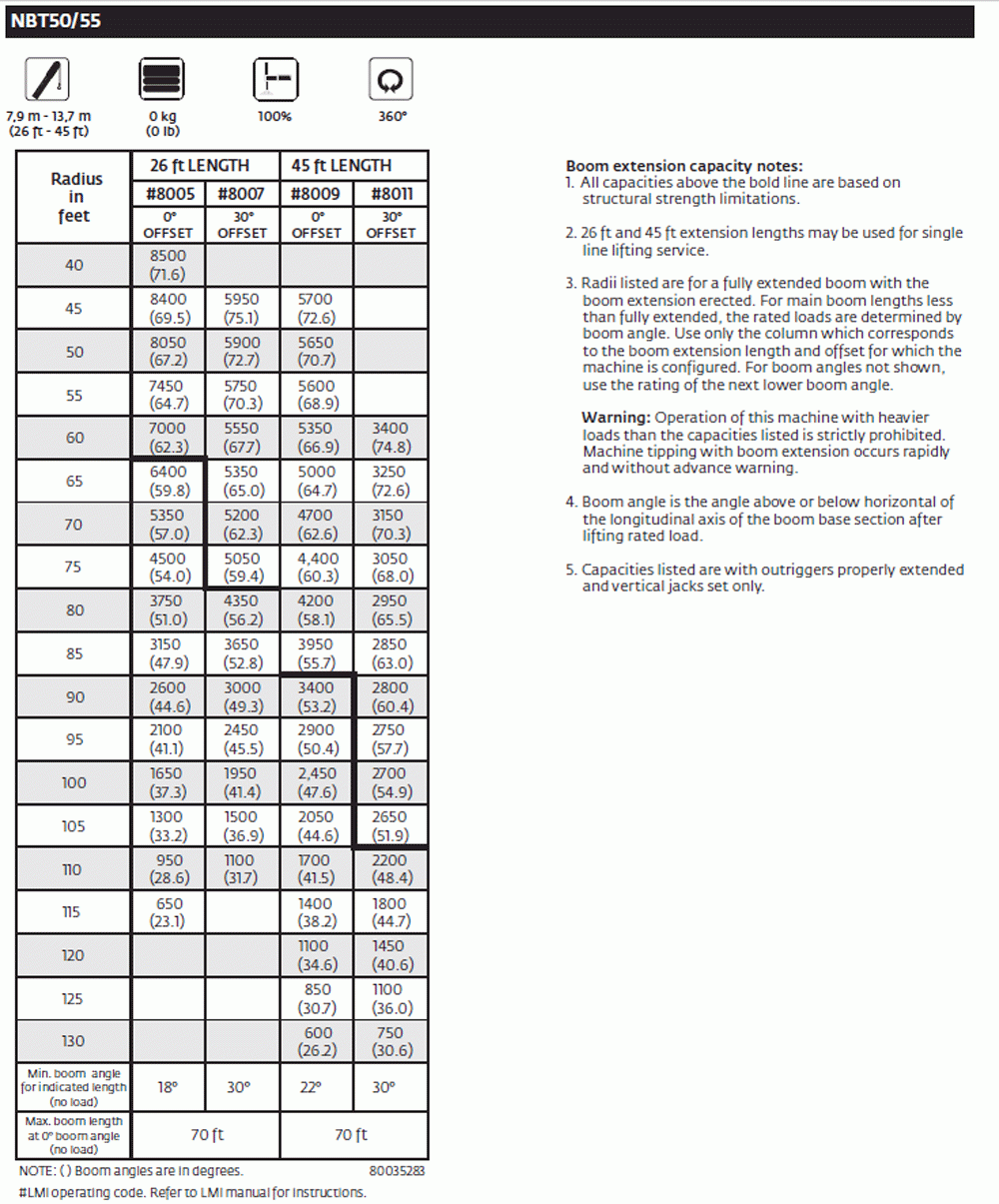

National NBT50102 - Load Chart - No Counterweight - Jib Extended - 360 Degree

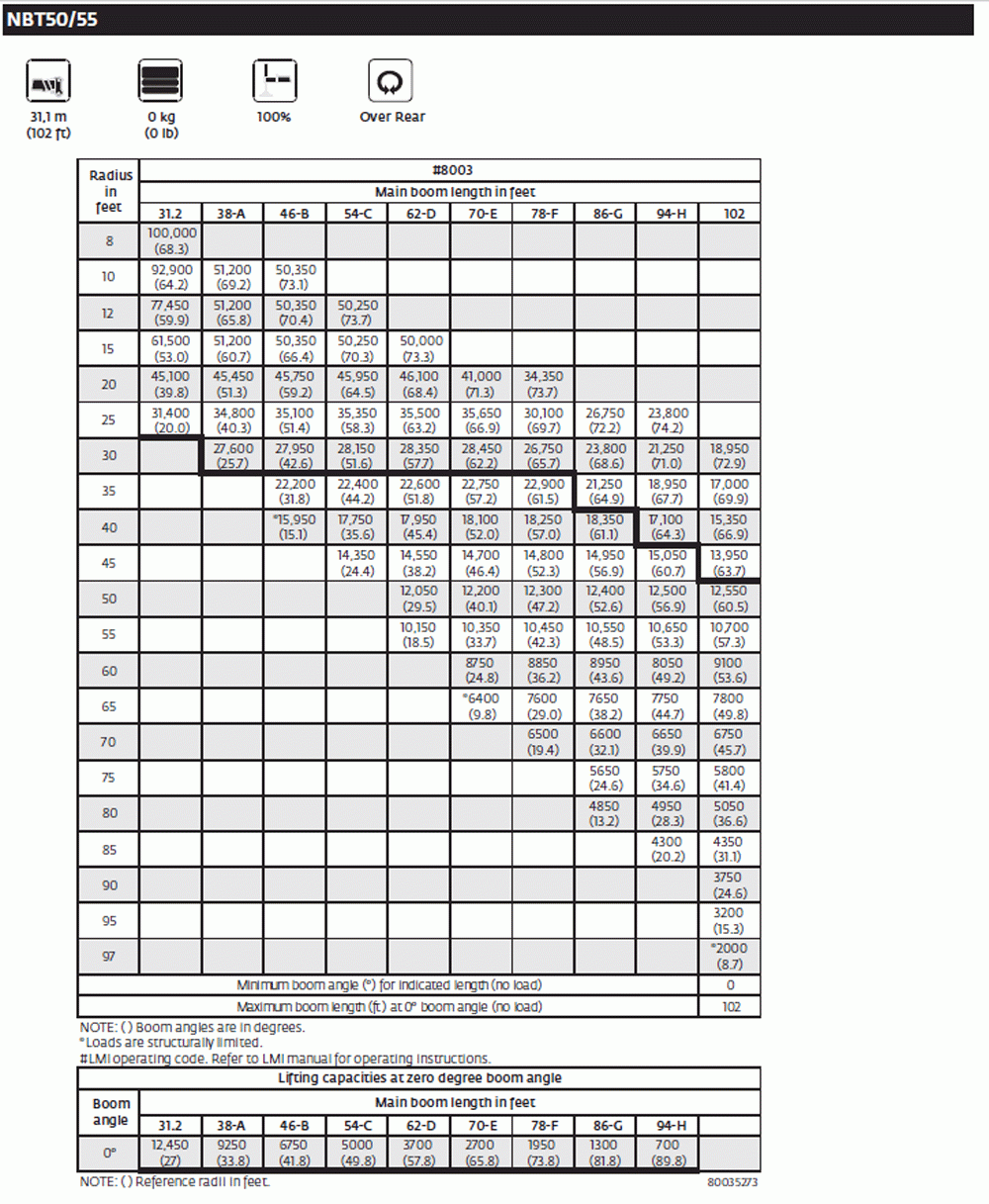

National NBT50102 - Load Chart - No Counterweight - Over Rear

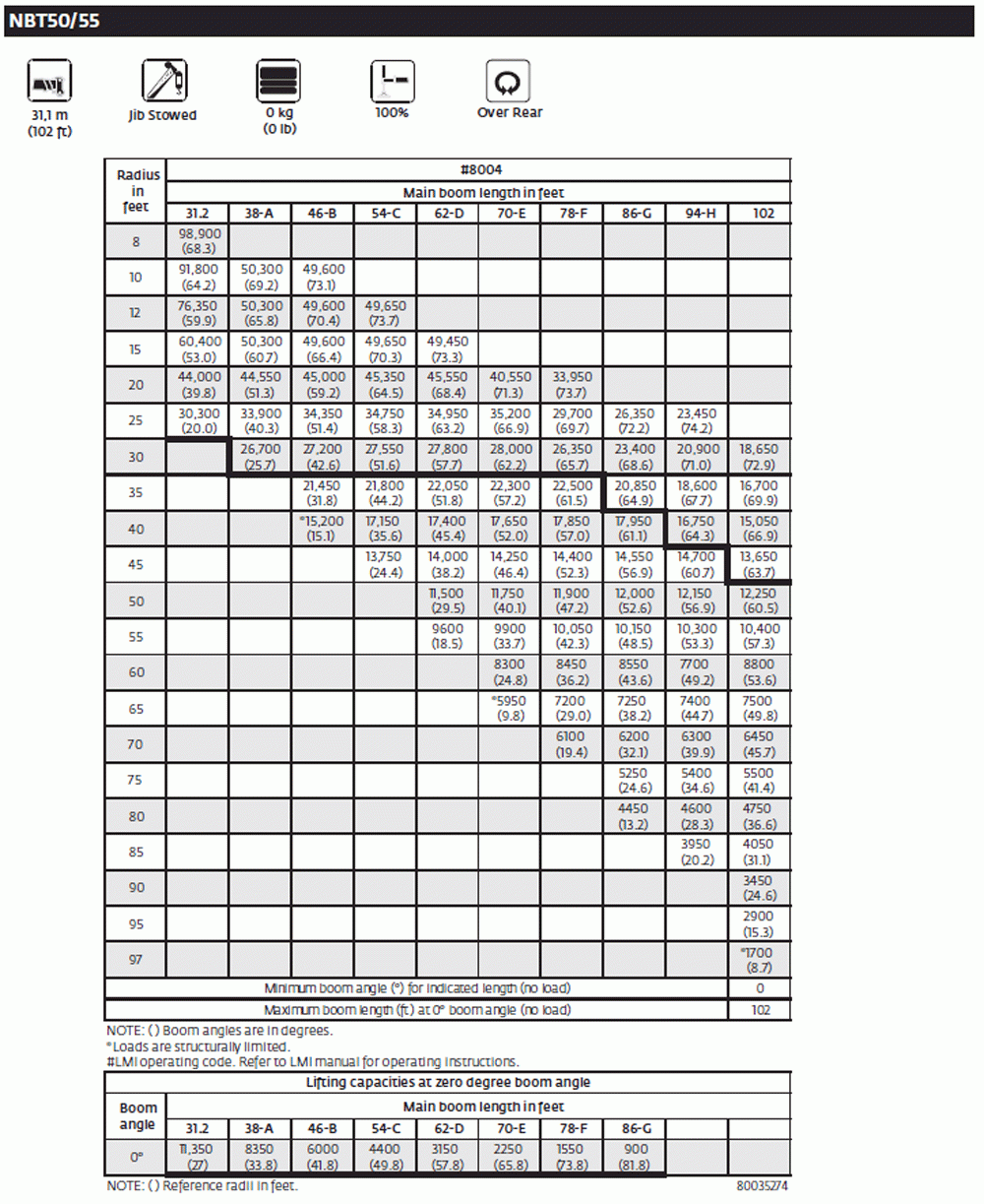

National NBT50102 - Load Chart - No Counterweight - Jib Stowed - Over Rear

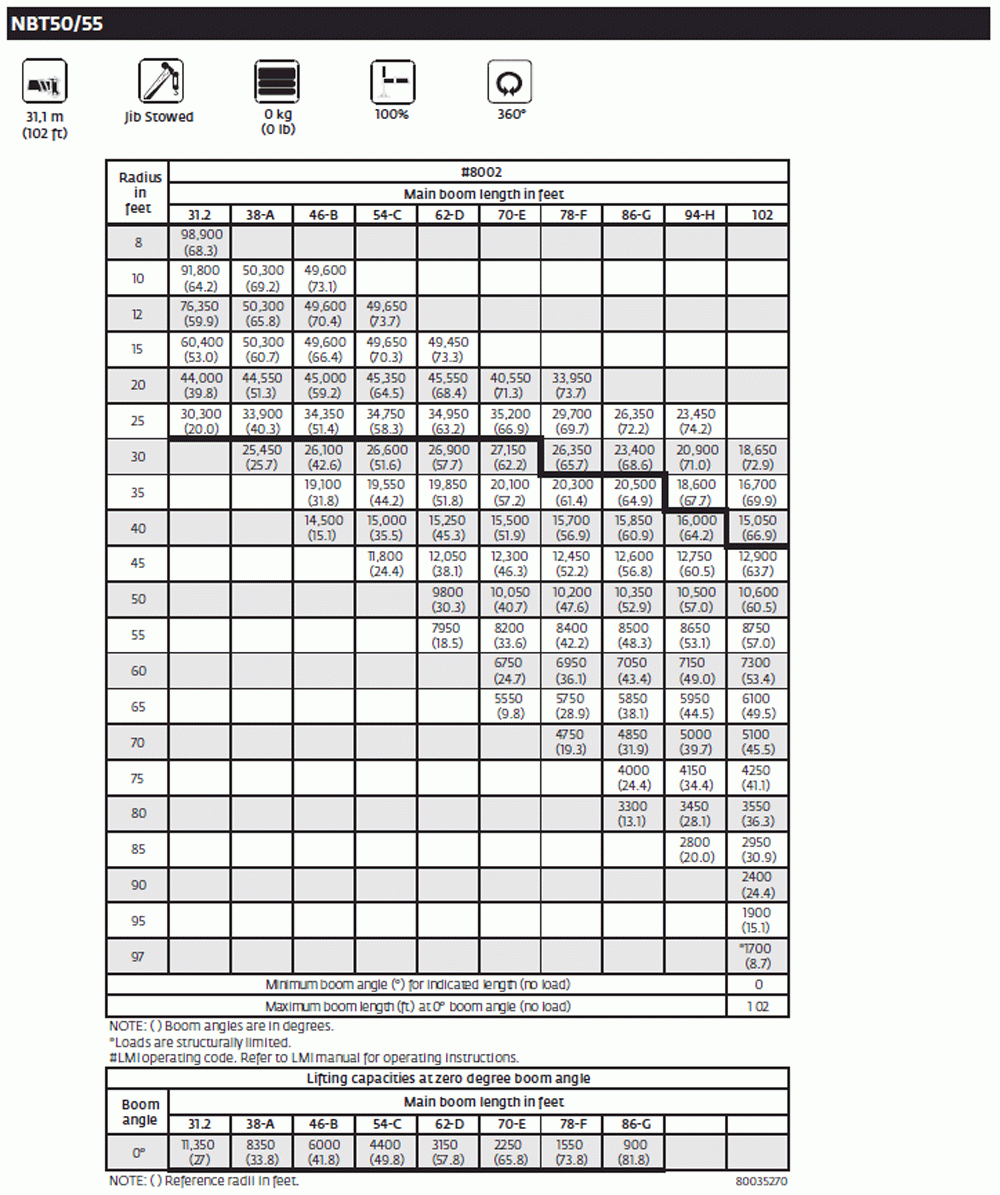

National NBT50102 - Load Chart - No Counterweight - Jib Stowed - 360 Degree

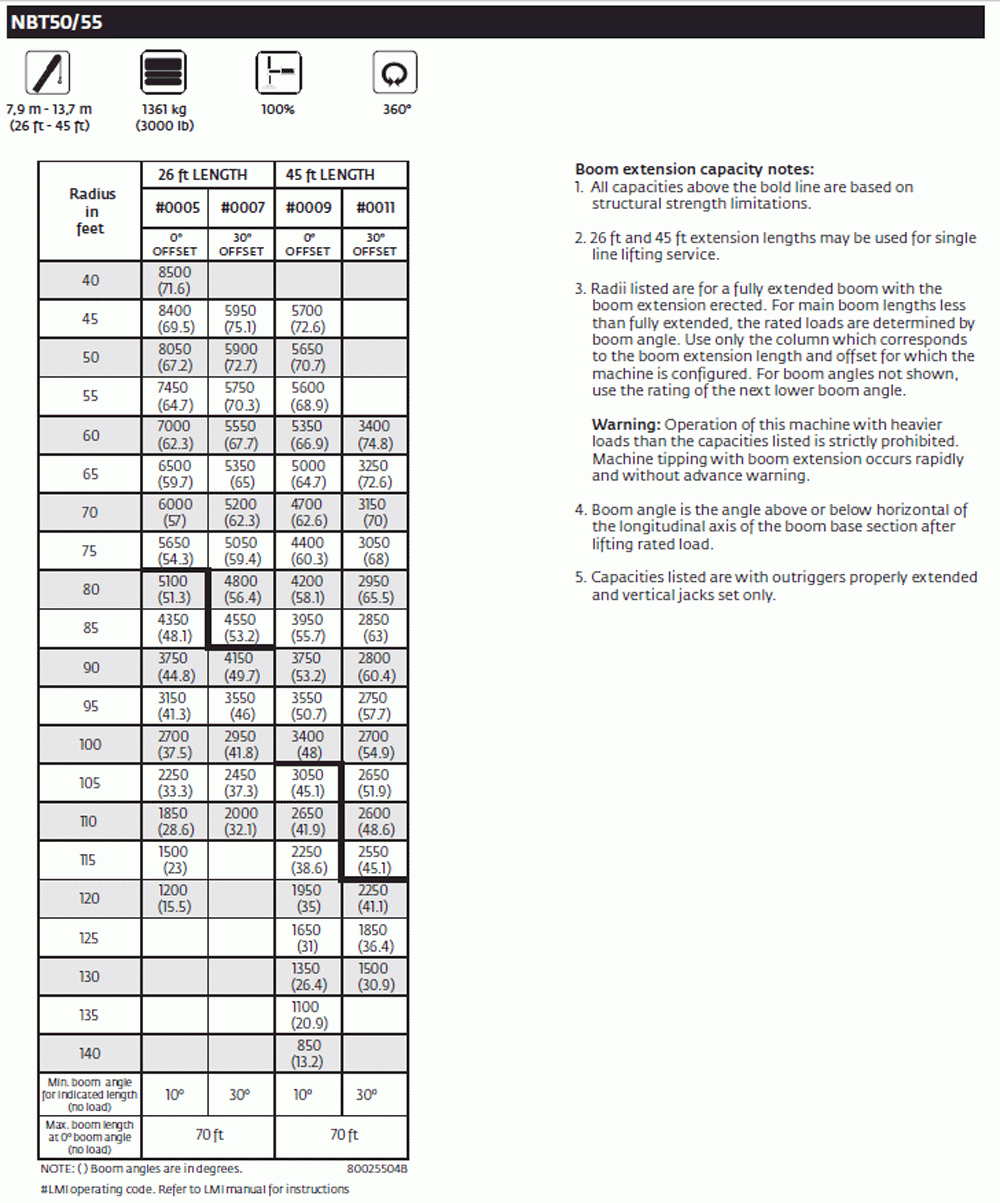

National NBT50102 - Load Chart - 3K Counterweight - Jib Extended - 360 Degree

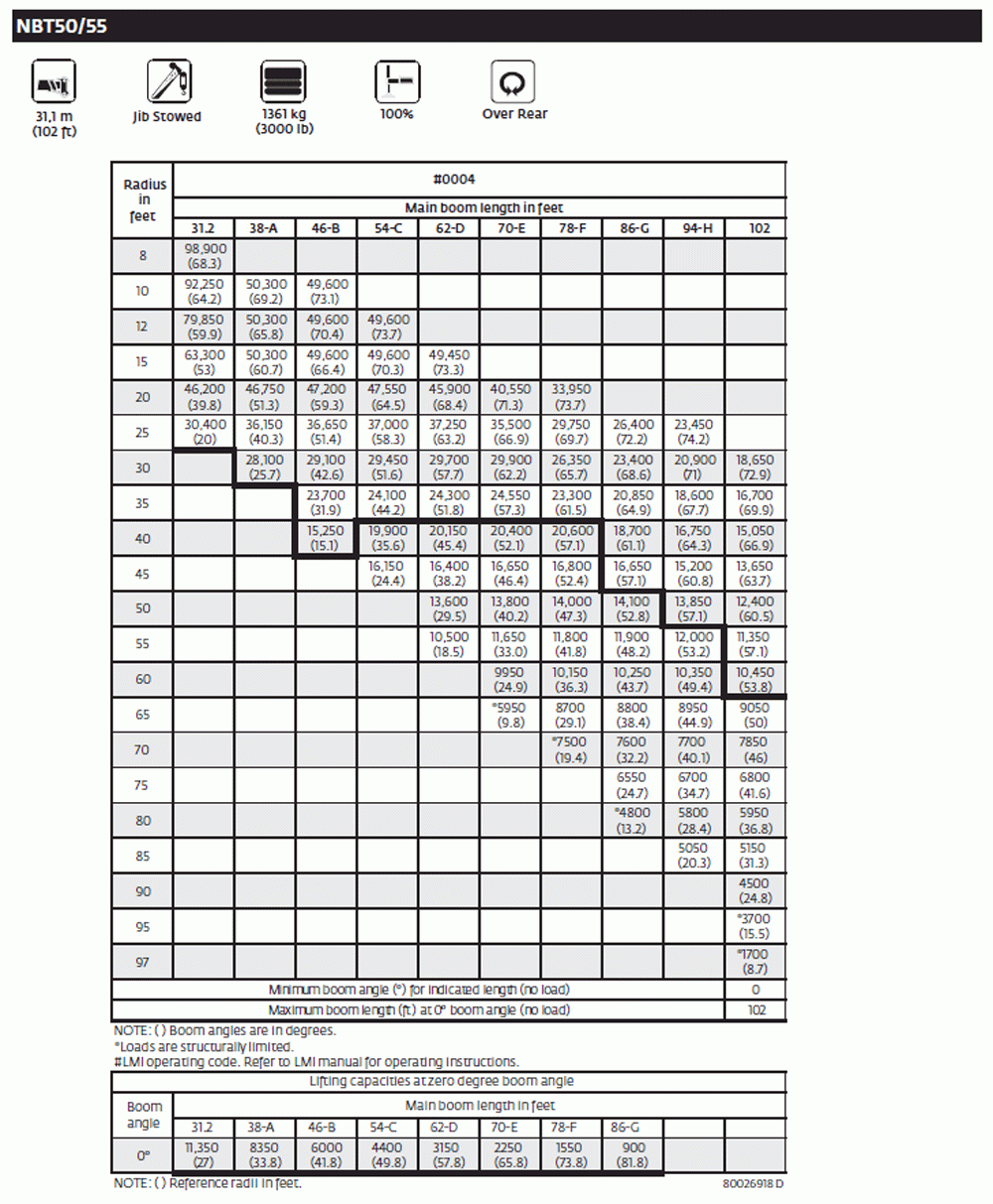

National NBT50102 - Load Chart - 3K Counterweight - Jib Stowed - Over Rear

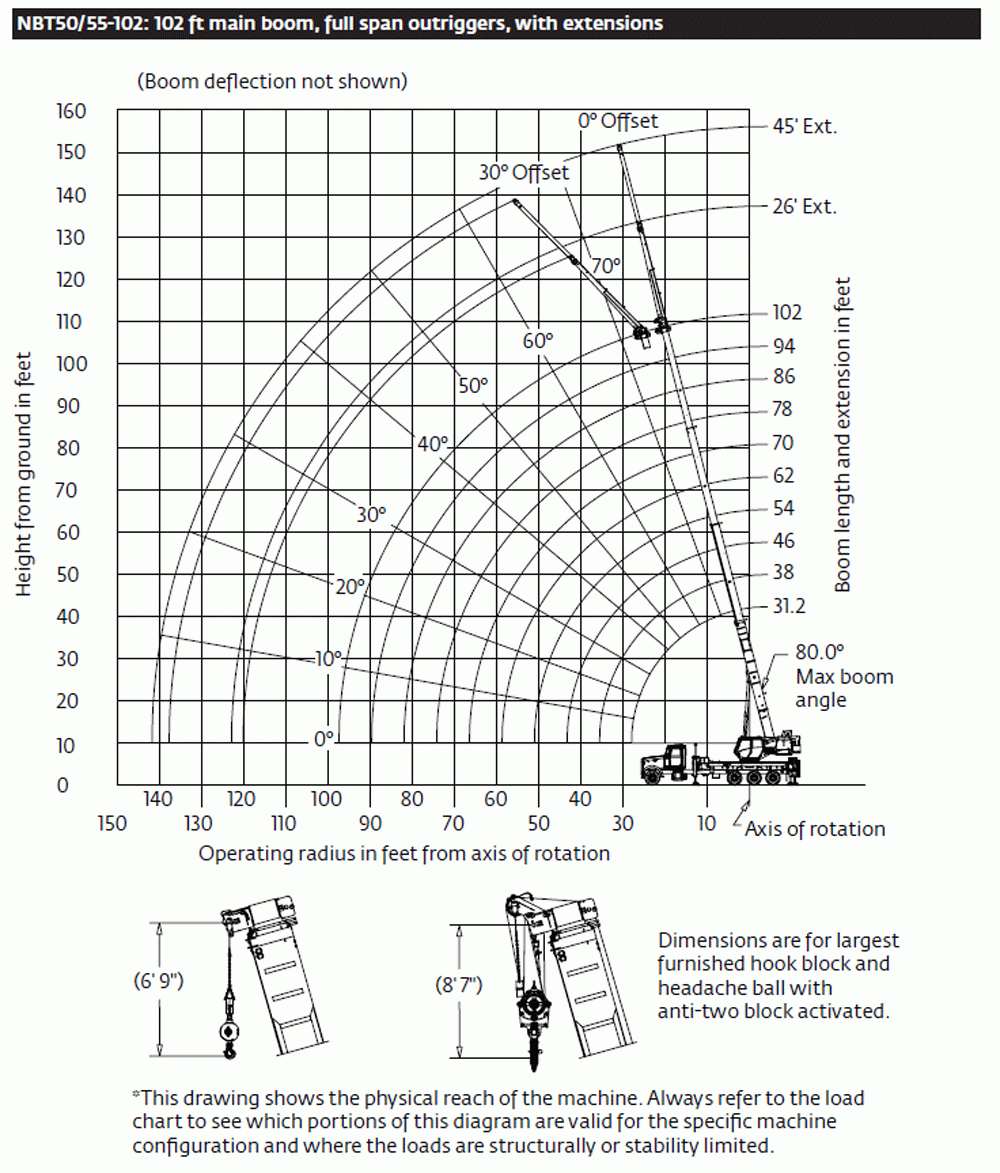

National NBT50102 - Range Diagram
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
