Model Information
| Model | NTC55128 |
| Capacity | 55 Ton |
| Boom Length | 5 SECTION 31'8" - 128' |
| Tip Height | 179' |
Download / Print (PDF)

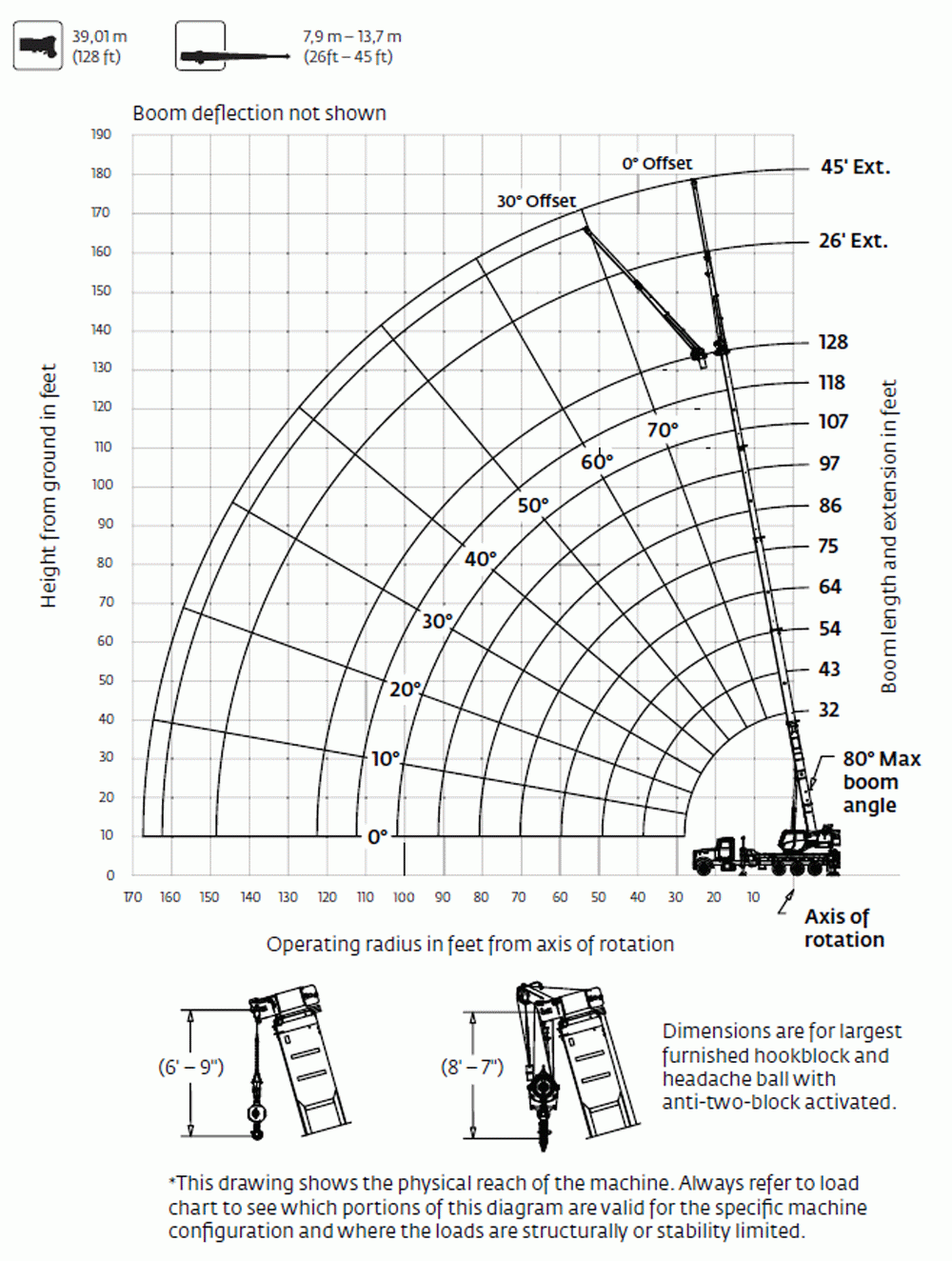

- National-NTC55-loadchart.pdfNational NTC55128 - Range Diagram

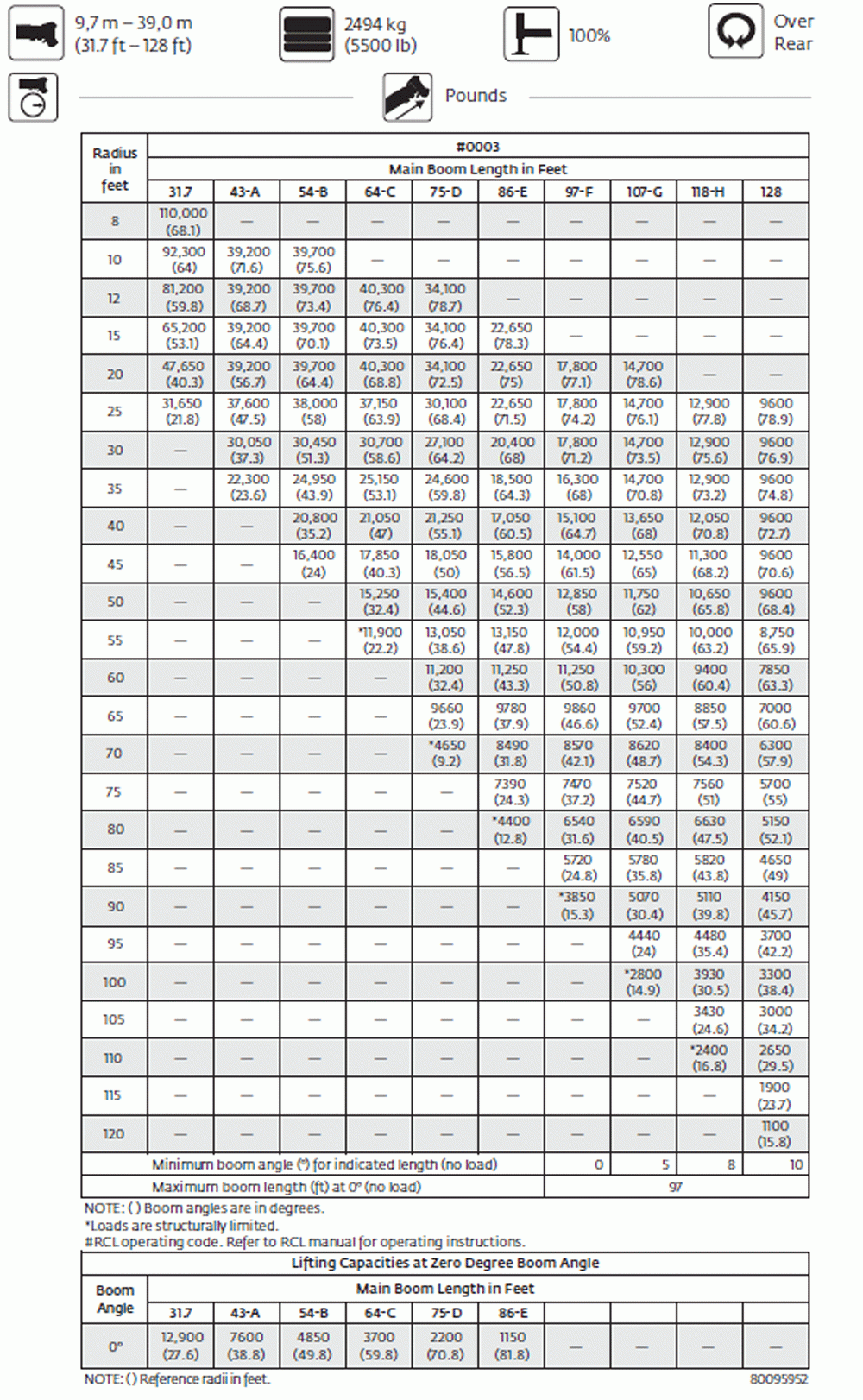

National NTC55128 - Load Chart - Over Rear

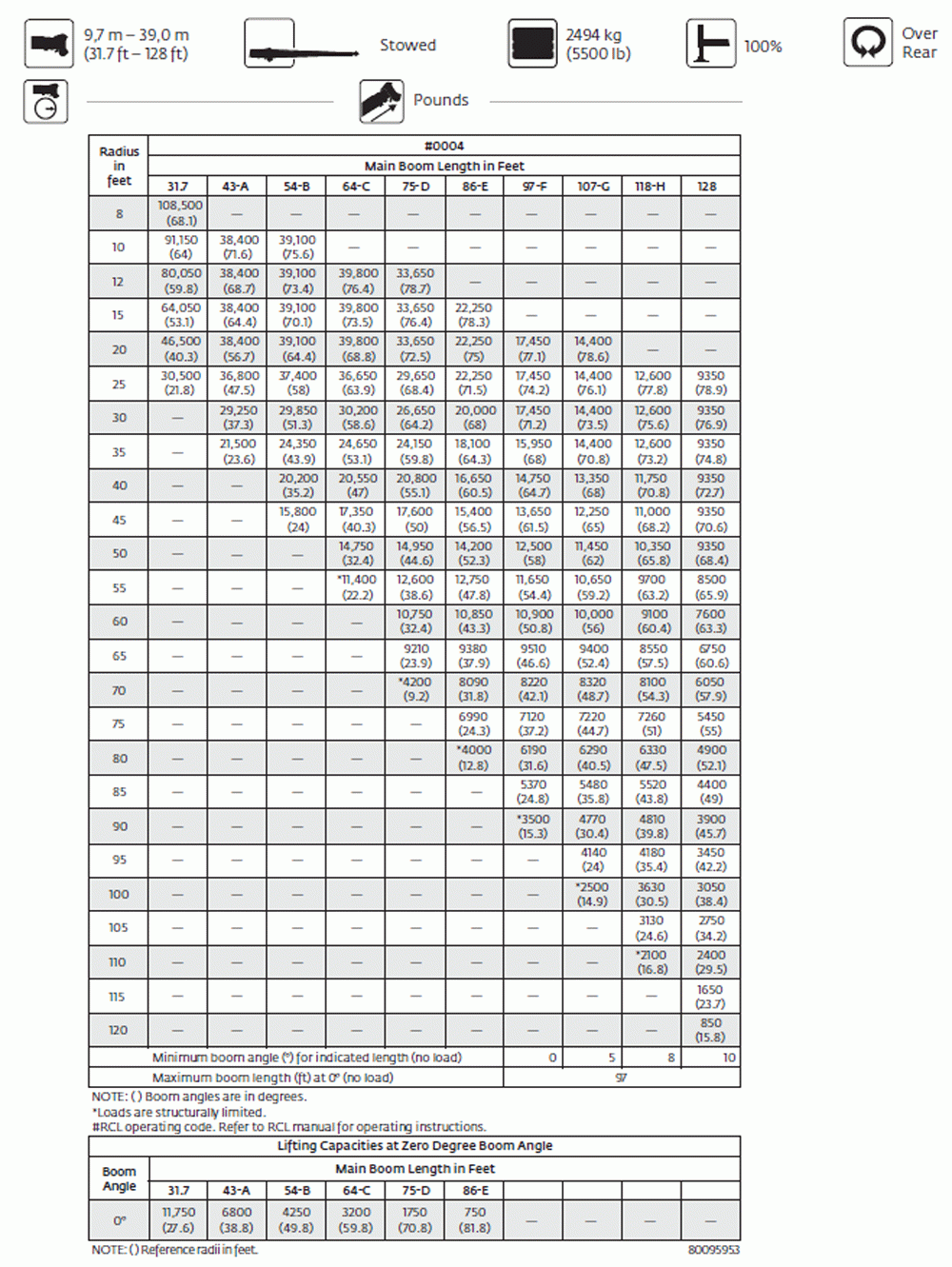

National NTC55128 - Load Chart - Jib Stowed - Over Rear

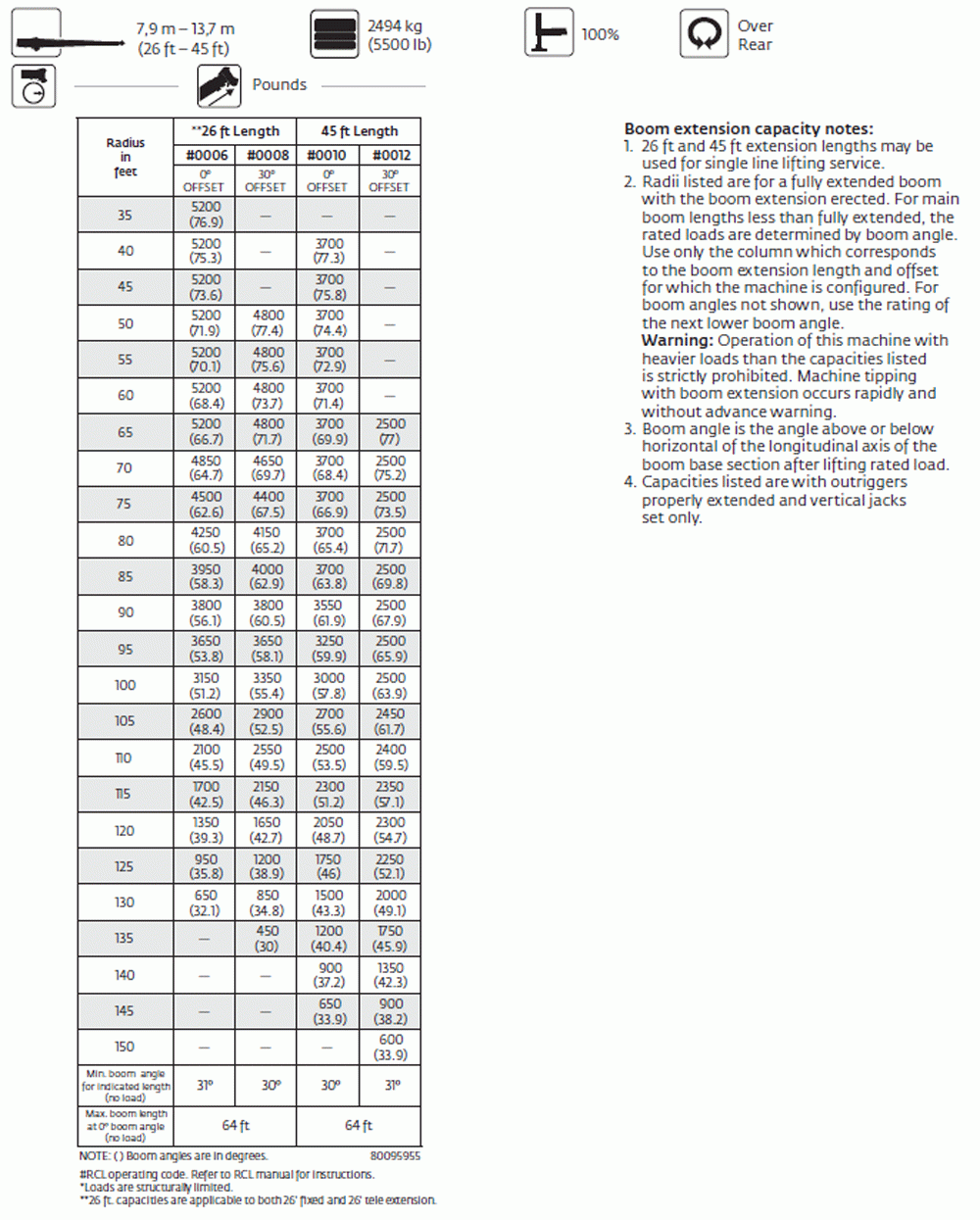

National NTC55128 - Load Chart - Jib Extended - Over Rear

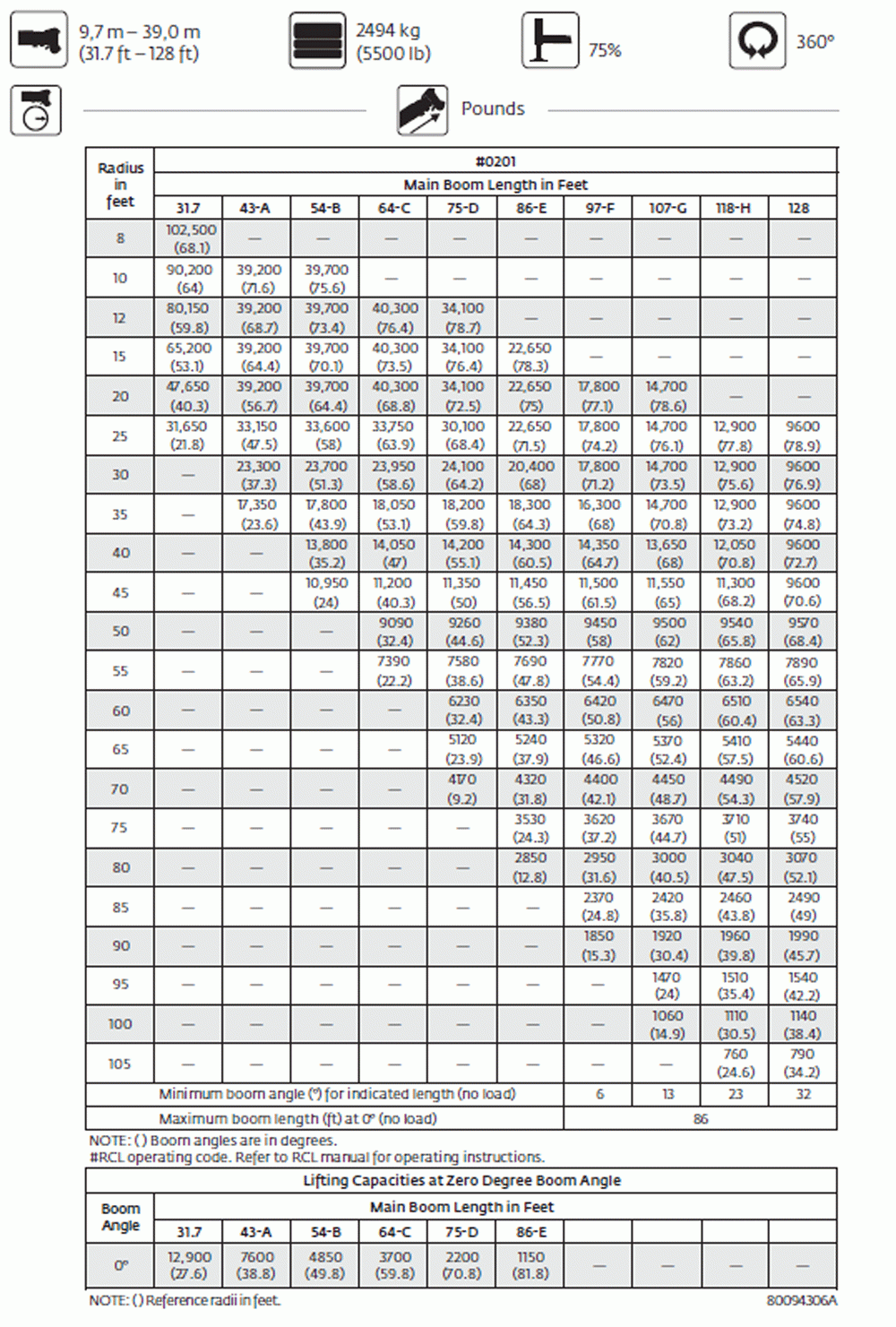

National NTC55128 - Load Chart - 75% outriggers - 360 Degrees

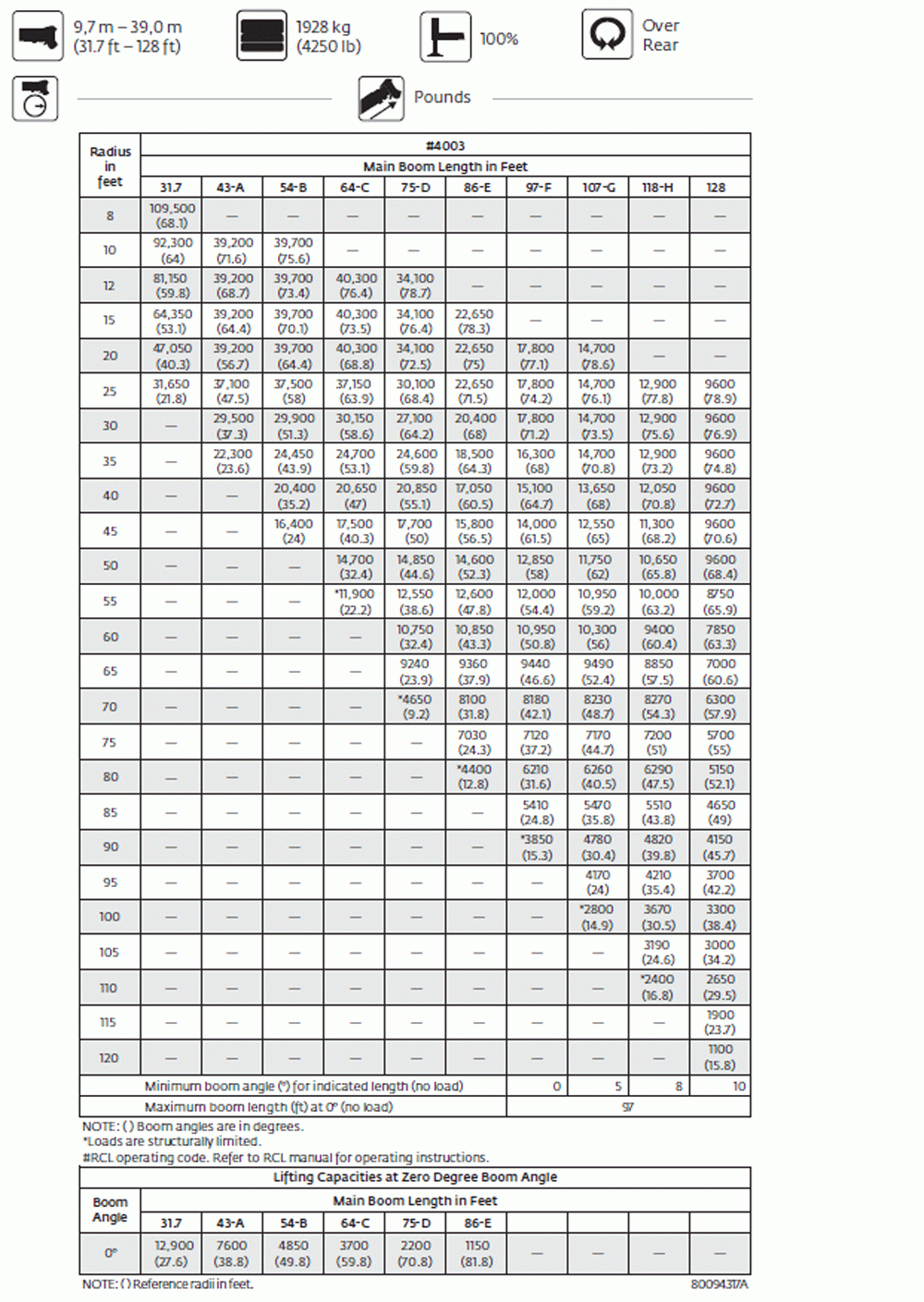

National NTC55128 - Load Chart - 4,200 LB Counterweight - Over Rear

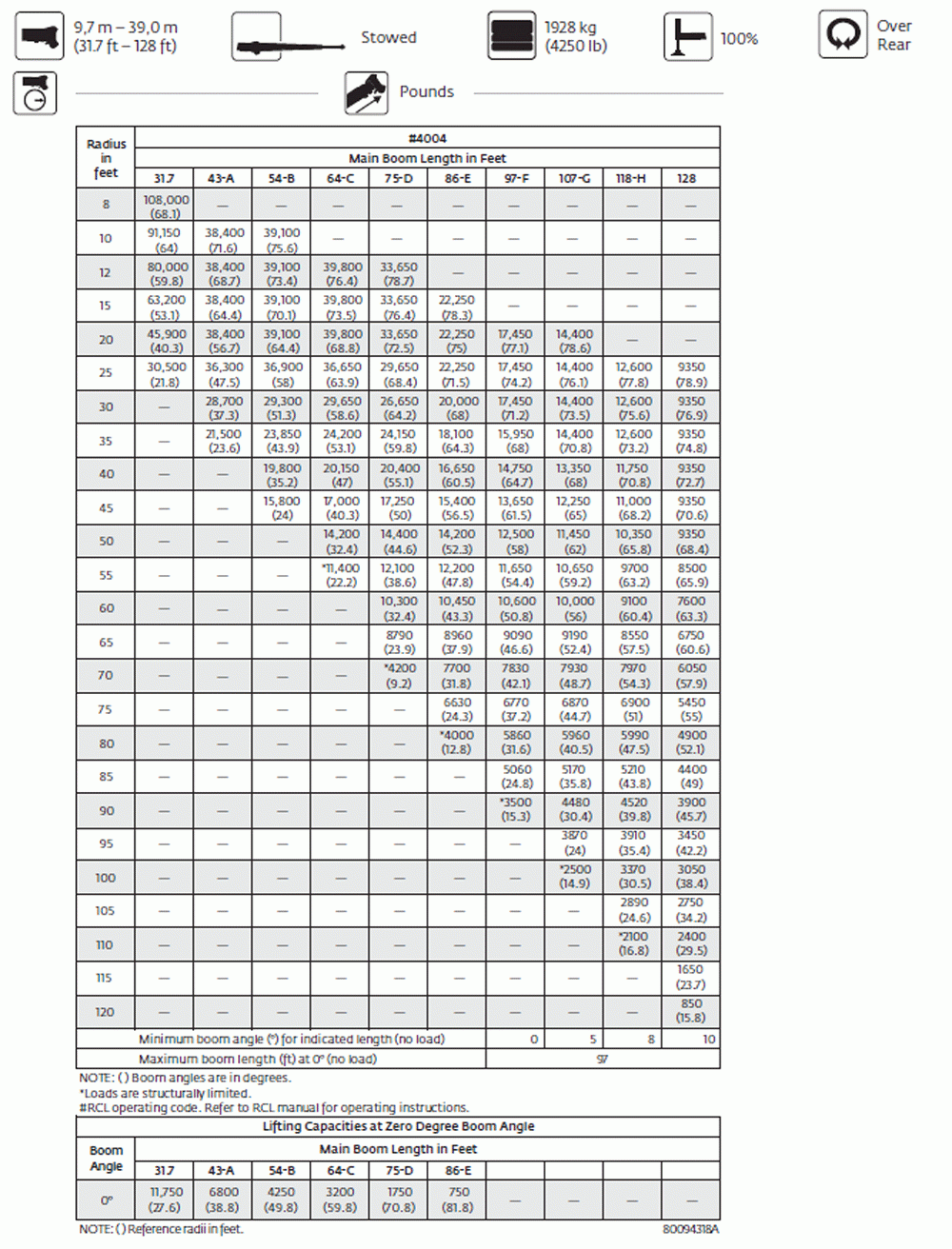

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Stowed - Over Rear

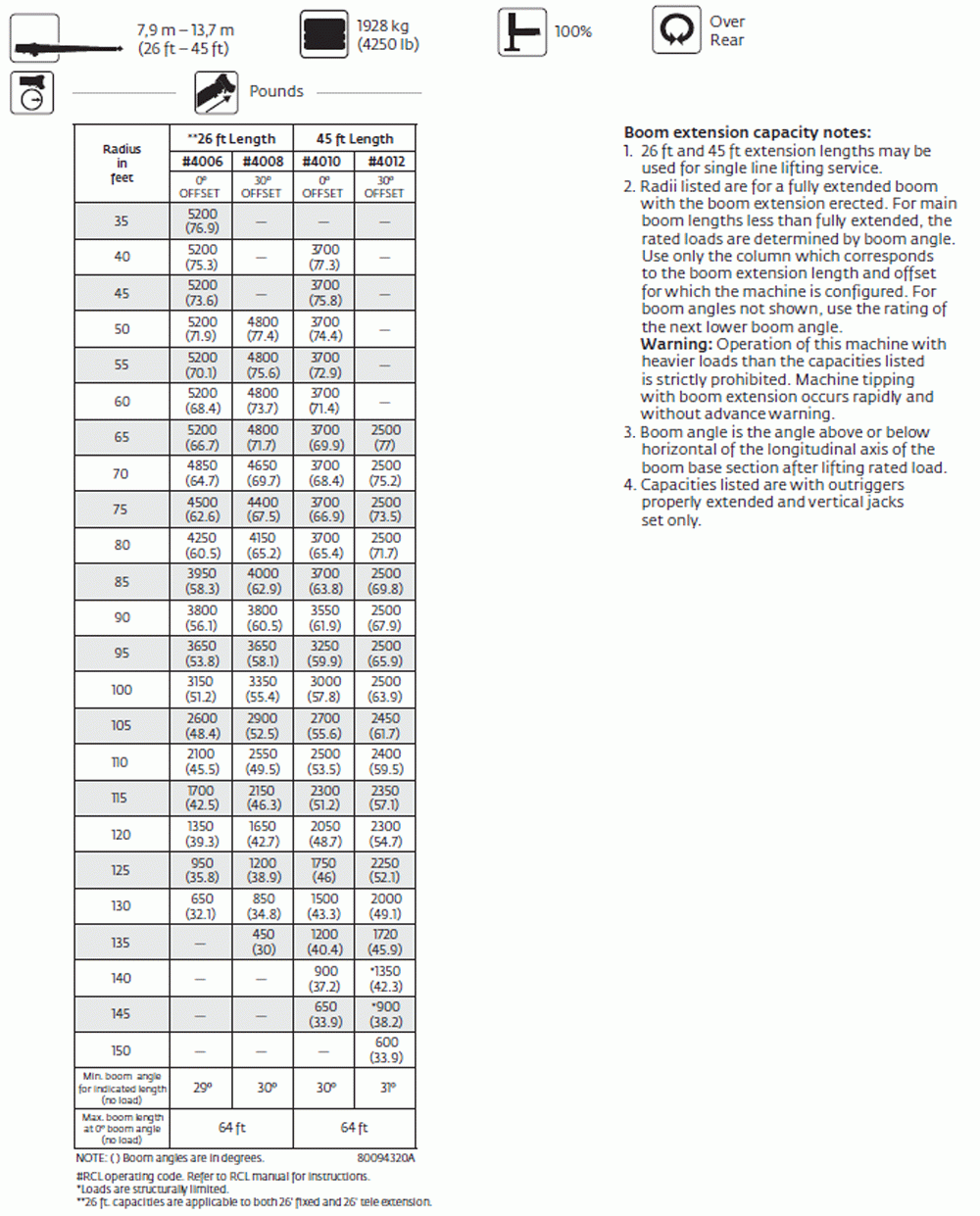

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Extended - Over Rear

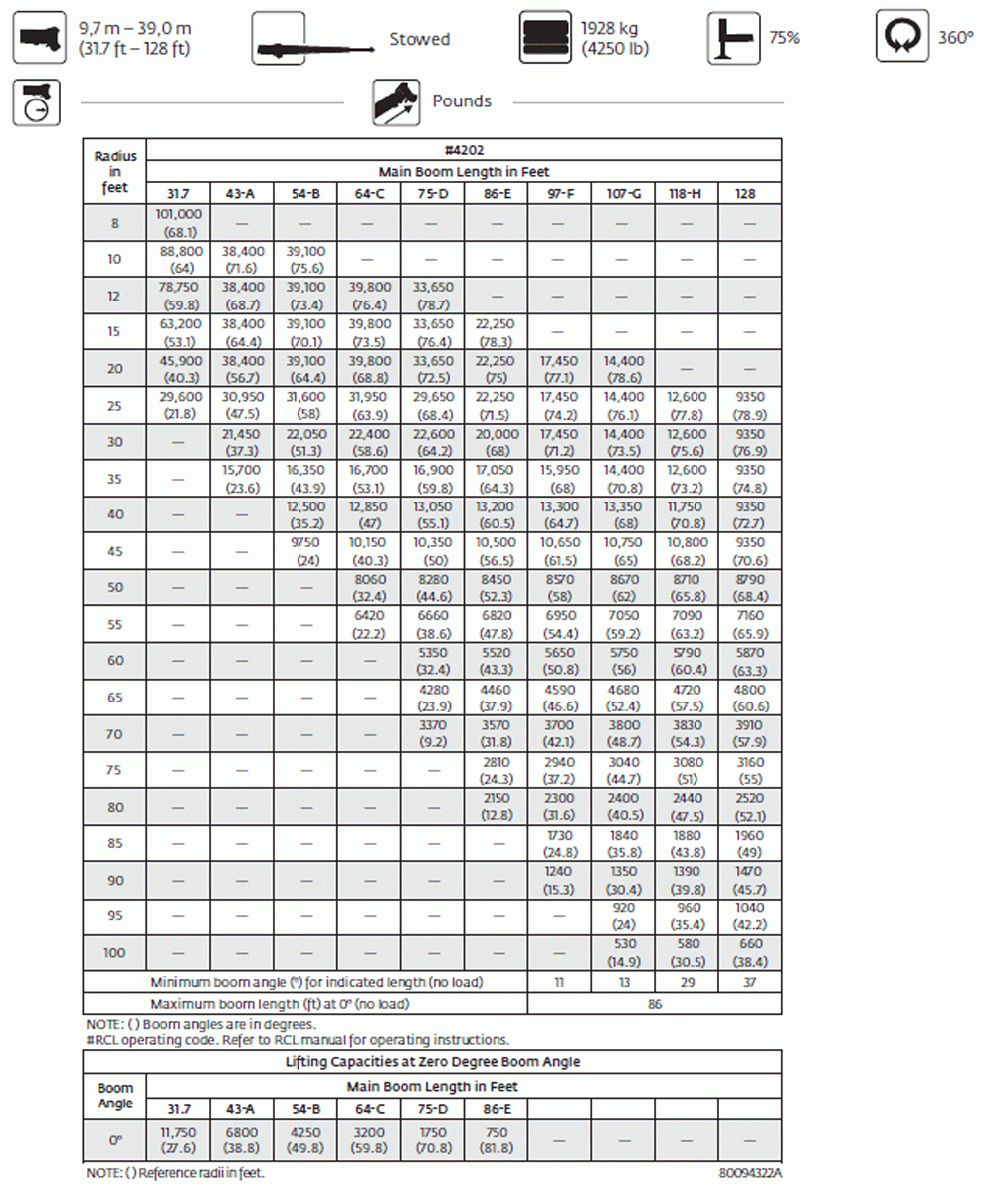

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Stowed - 75% outriggers - 360 Degrees

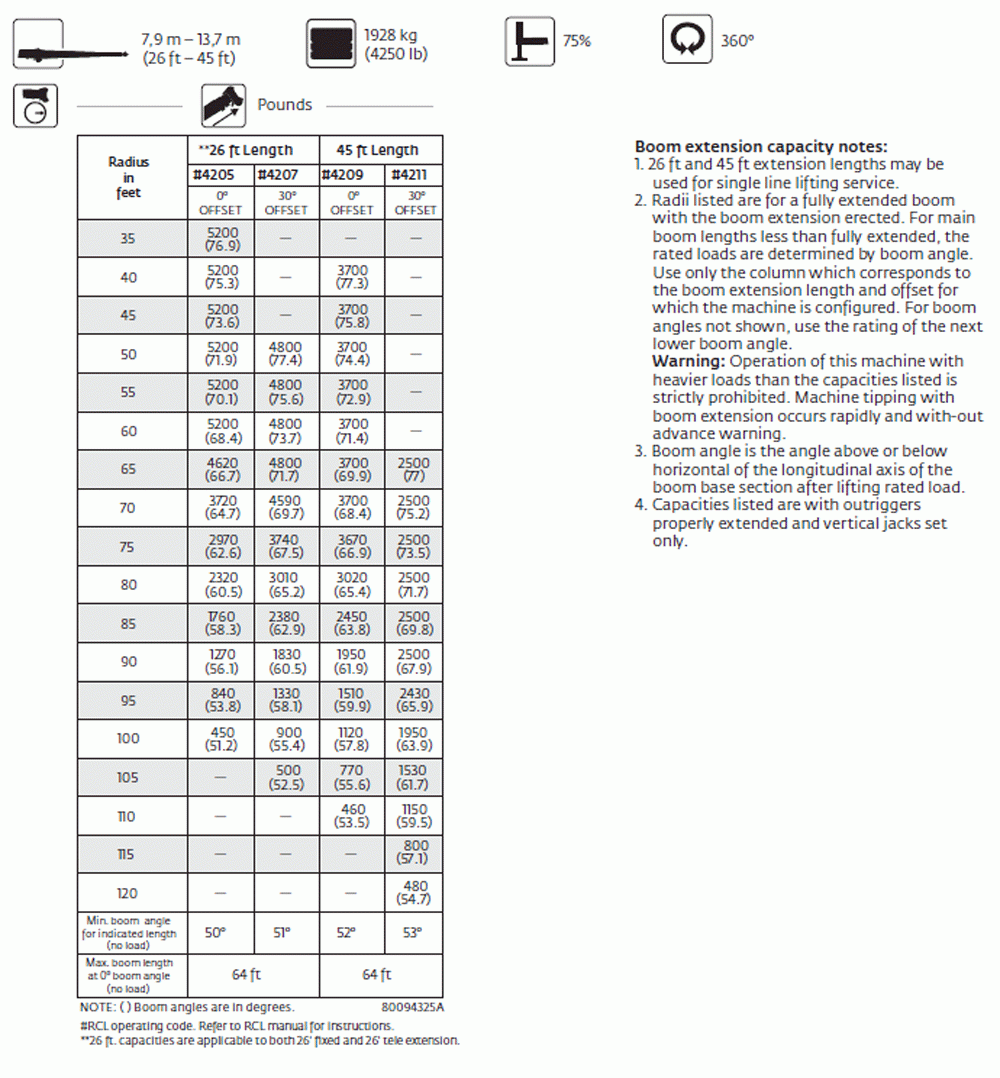

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Extended - 75% Outriggers - 360 Degrees

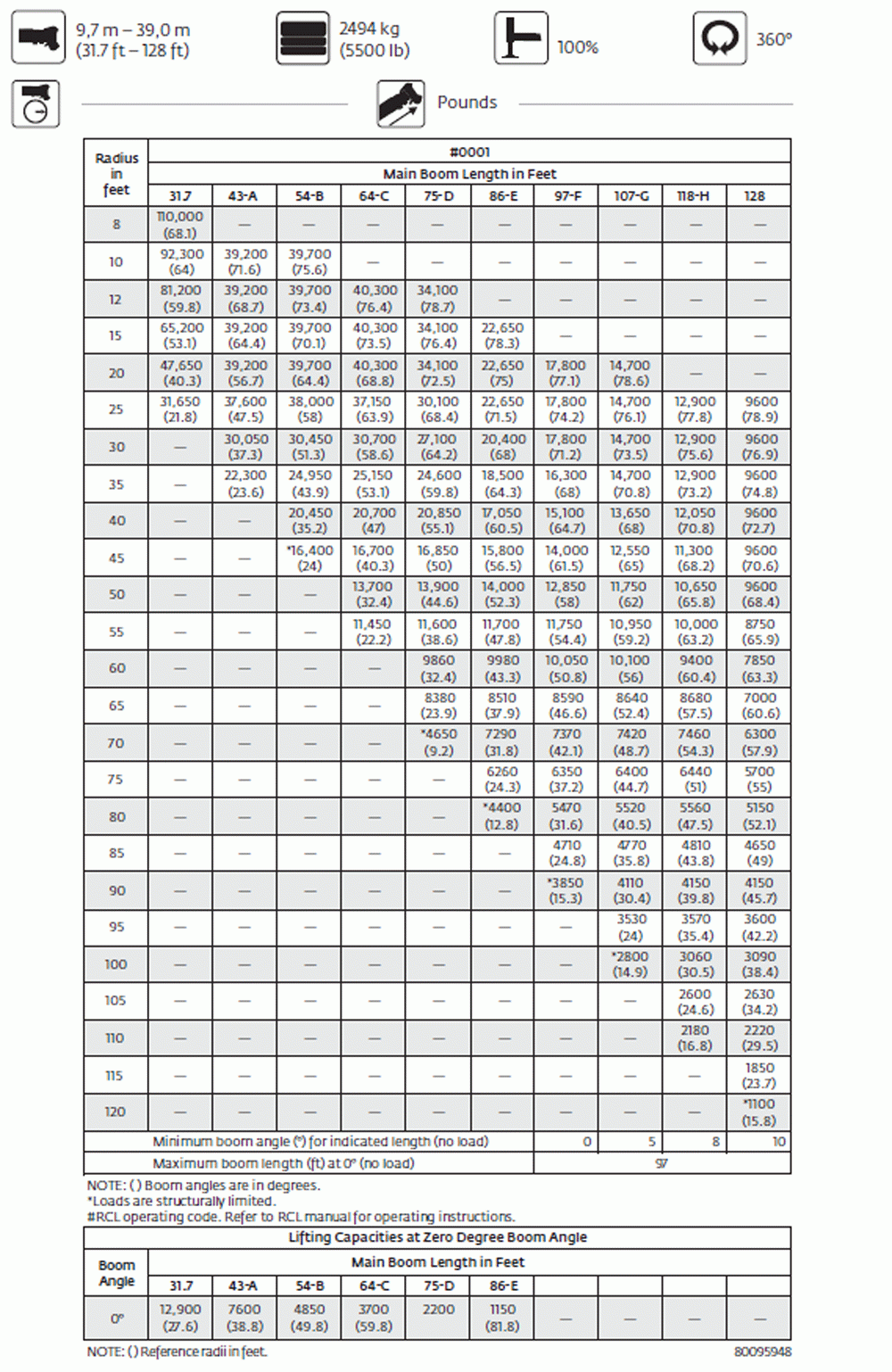

National NTC55128 - Load Chart - 360 Degrees

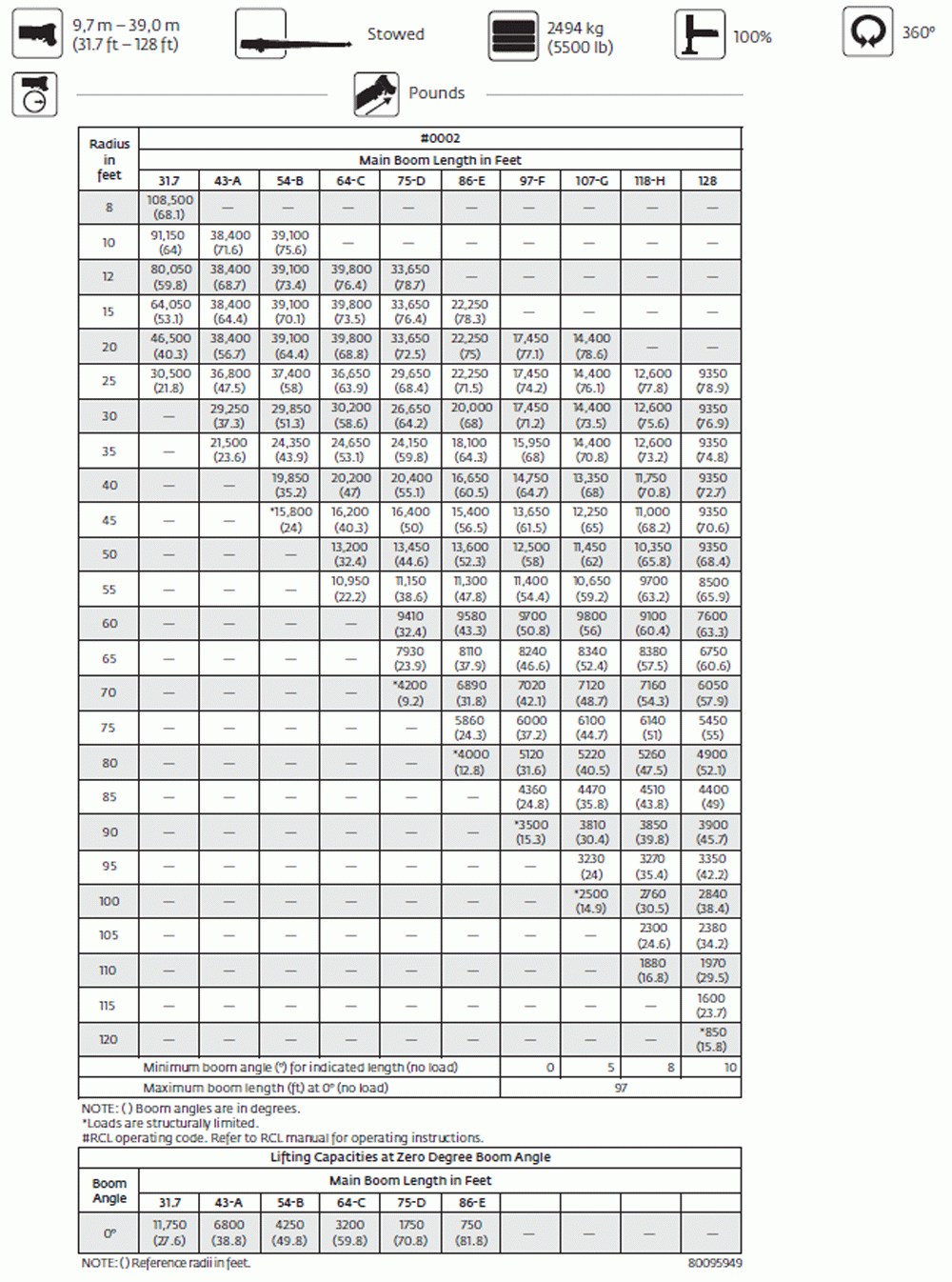

National NTC55128 - Load Chart - Jib Stowed - 360 Degrees

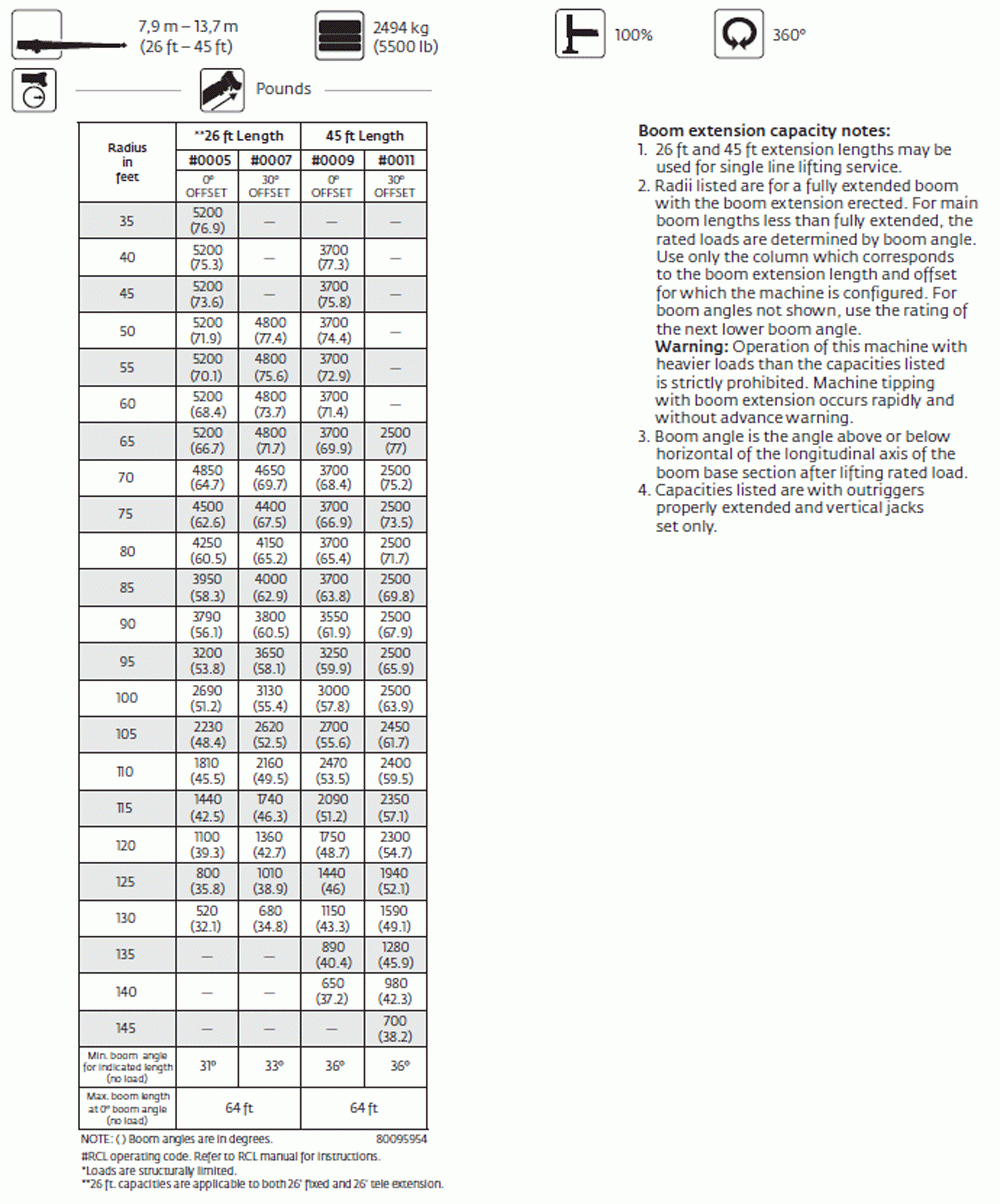

National NTC55128 - Load Chart - Jib Extended - 360 Degrees

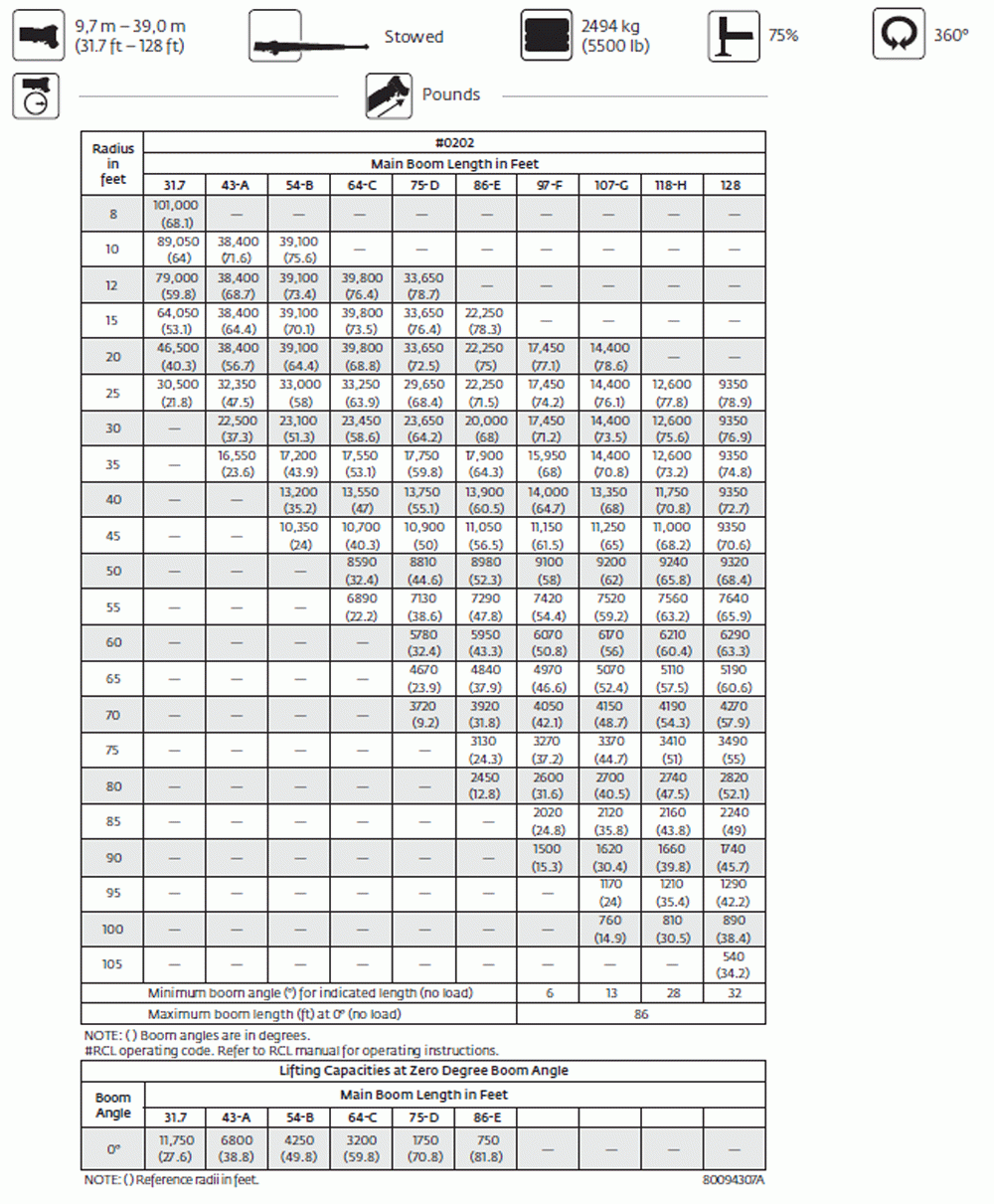

National NTC55128 - Load Chart - Jib Stowed - 75% Outriggers - 360 Degrees

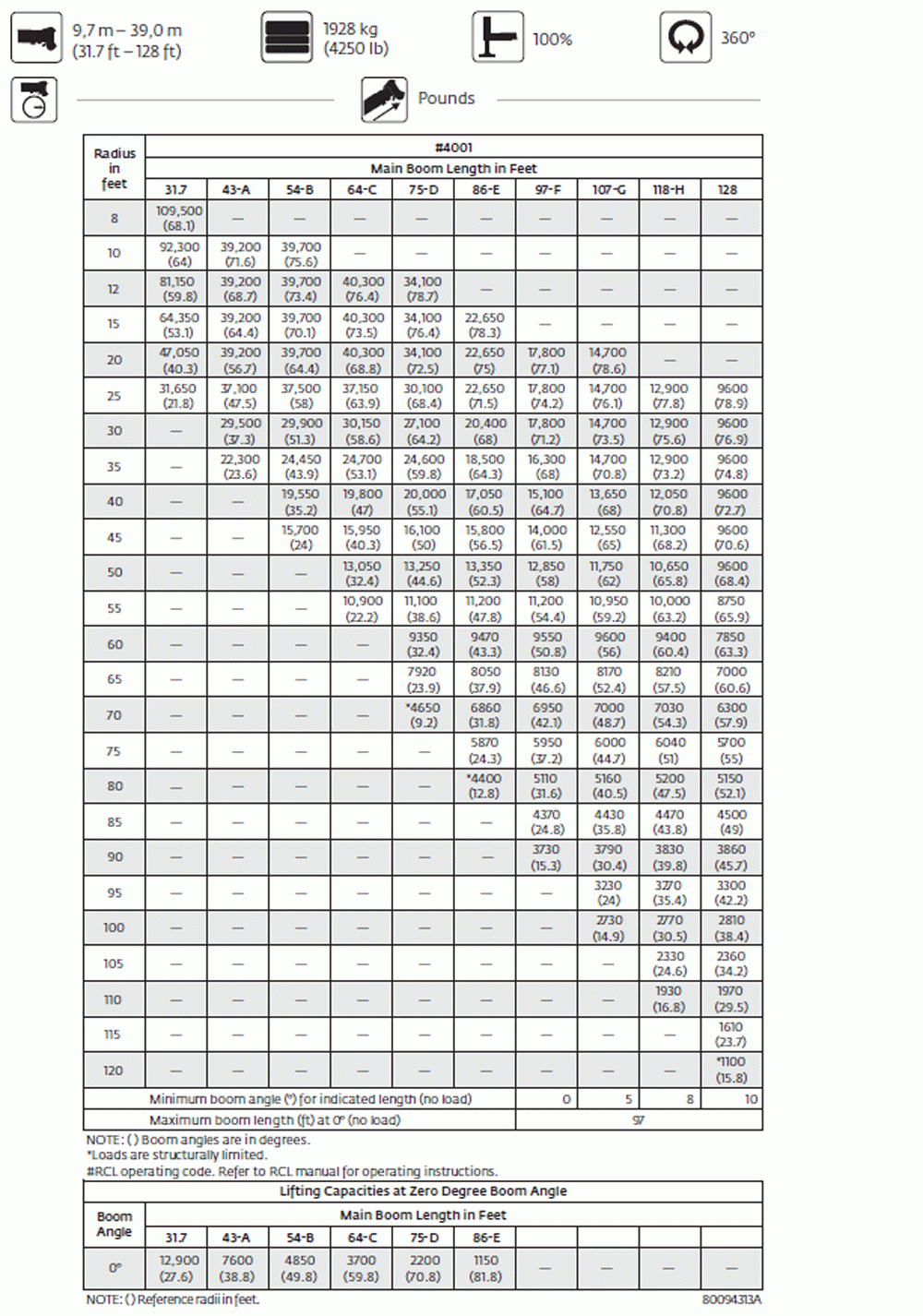

National NTC55128 - Load Chart - 4,200 LB Counterweight - 360 Degrees

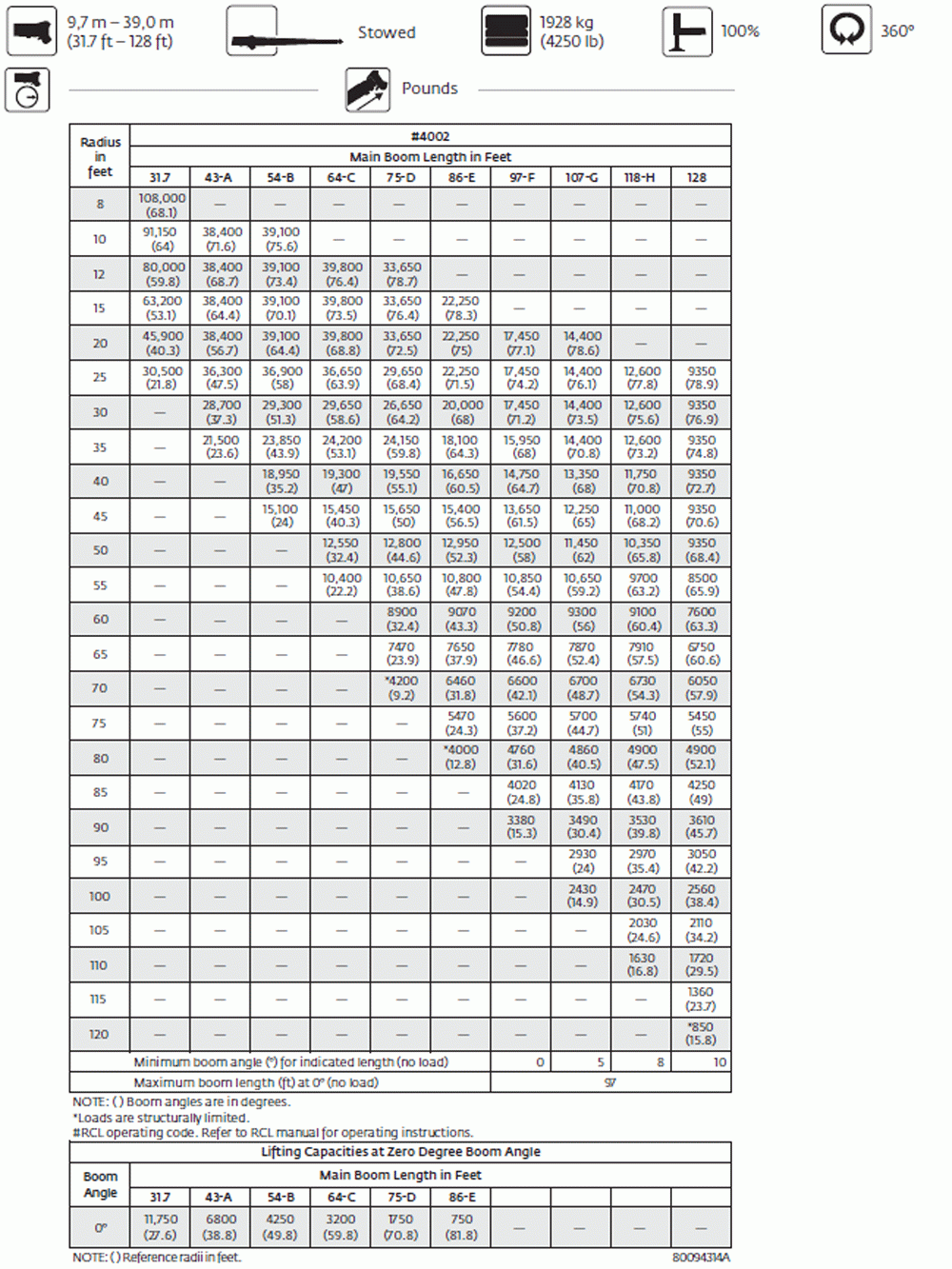

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Stowed - 360 Degrees

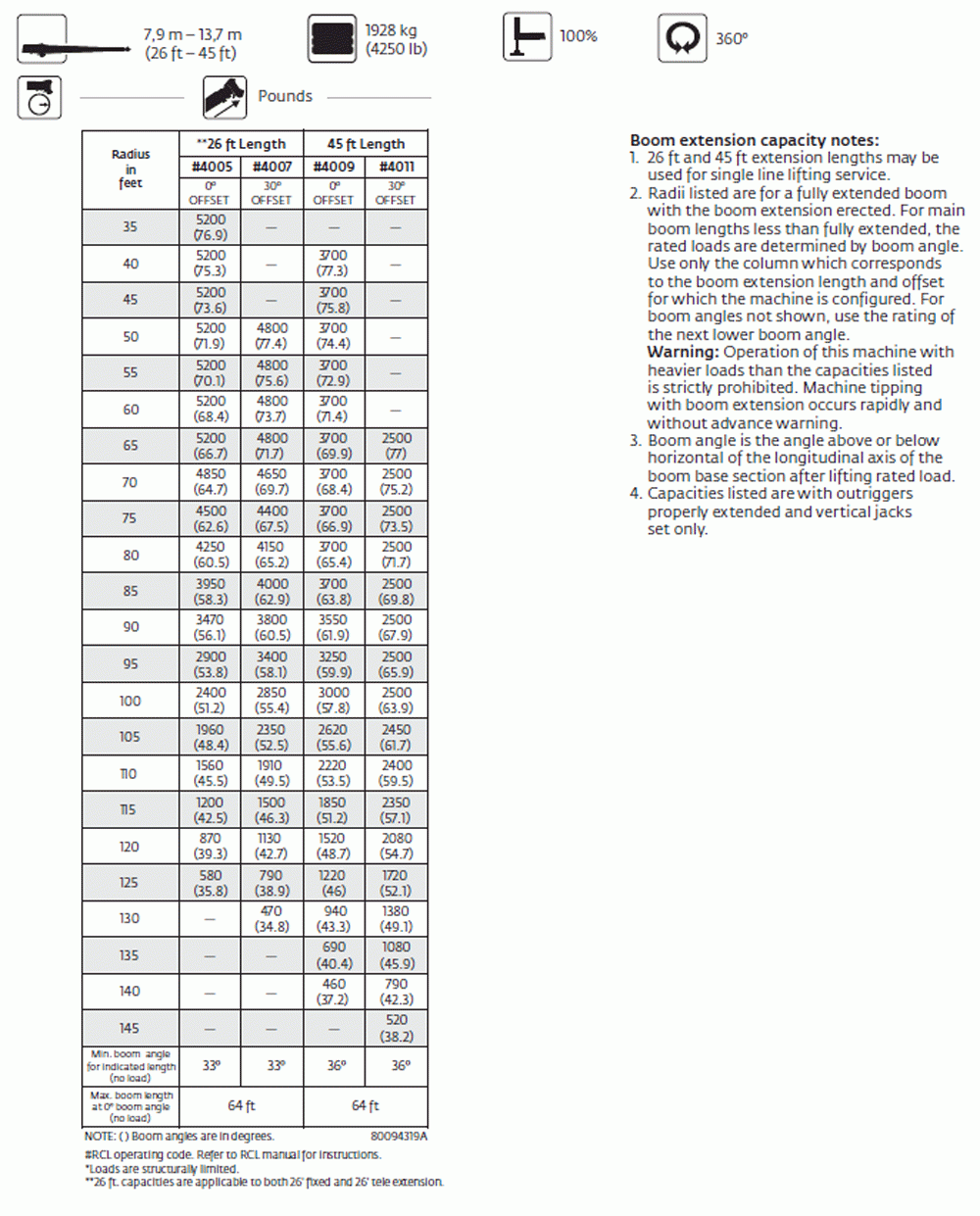

National NTC55128 - Load Chart - 4,200 LB Counterweight - Jib Extended - 360 Degrees

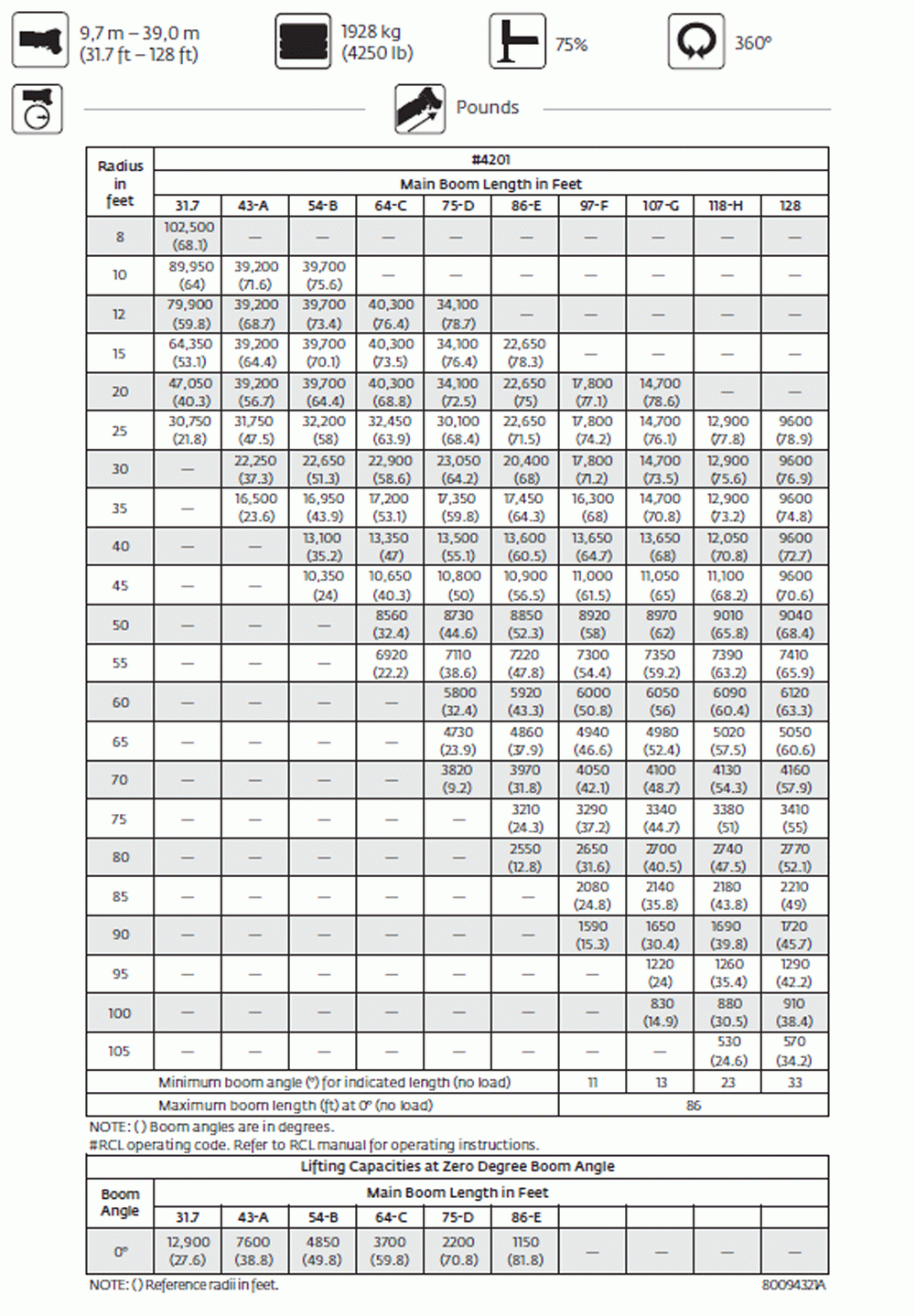

National NTC55128 - Load Chart - 4,200 LB Counterweight - 75% Outriggers - 360 Degrees

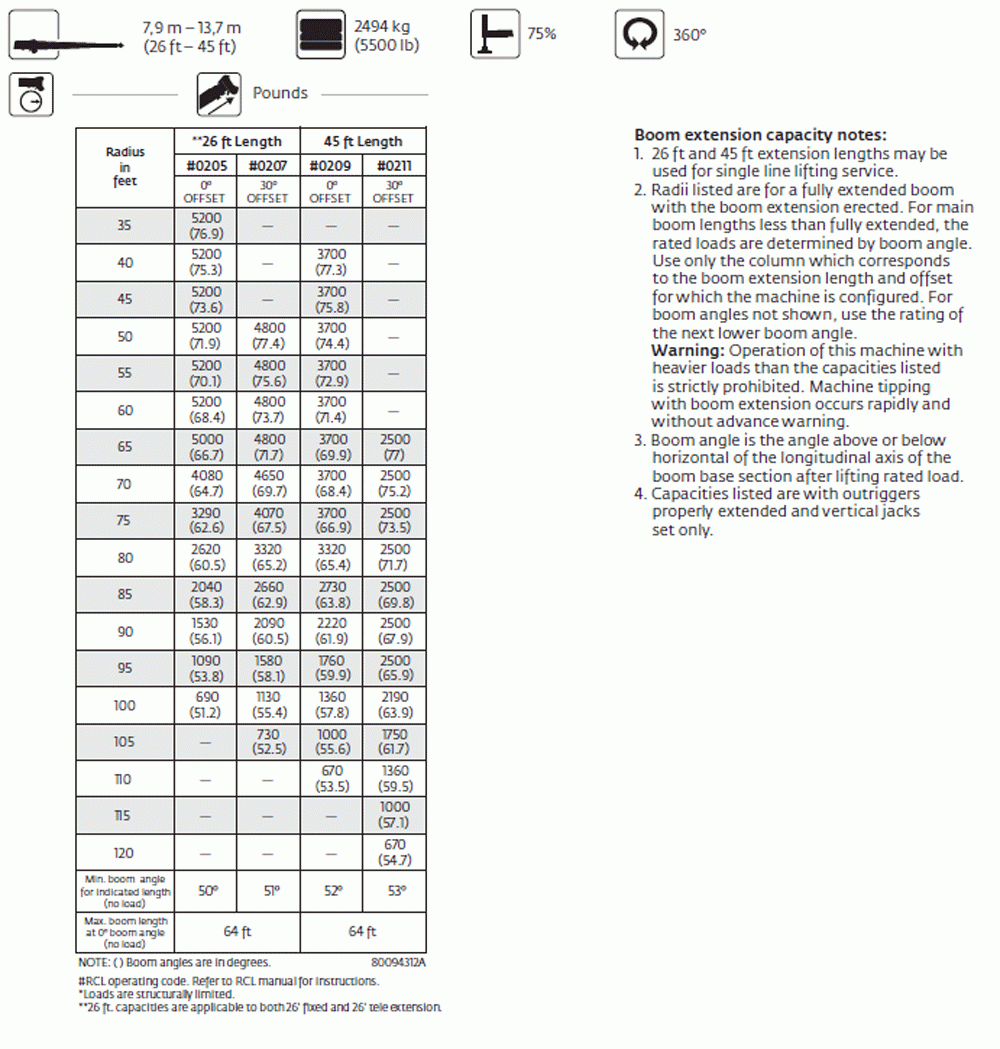

National NTC55128 - Load Chart - Jib Extended - 75% Outriggers - 360 Degrees
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
