Model Information
| Model | 2695F |
| Capacity | 26 ton |
| Boom Length | 4-SECTION 28' - 95' |
| Tip Height | 150' |
Download / Print (PDF)

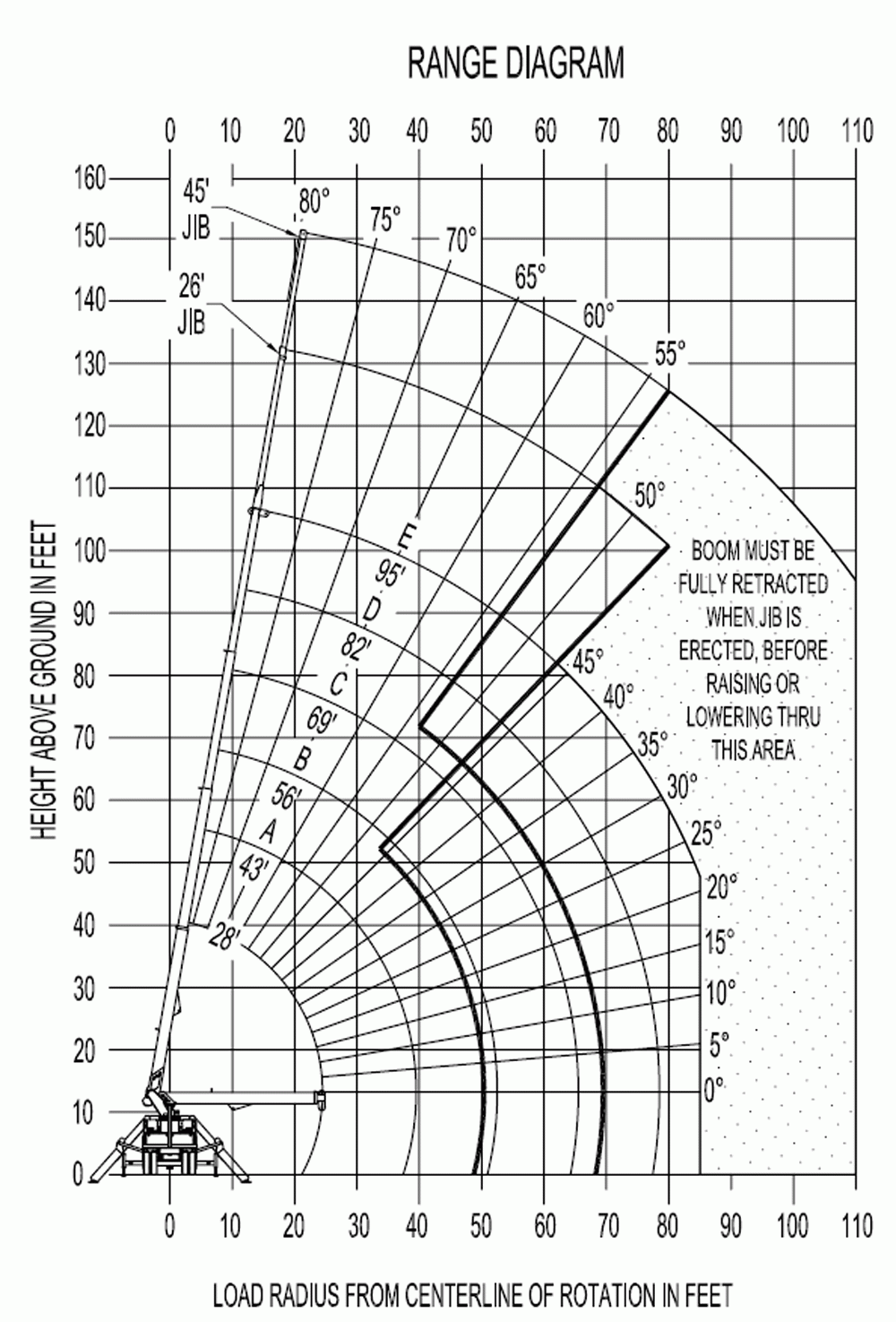

- Elliott-2695F-loadchart.pdfElliott 2695F - Range Diagram

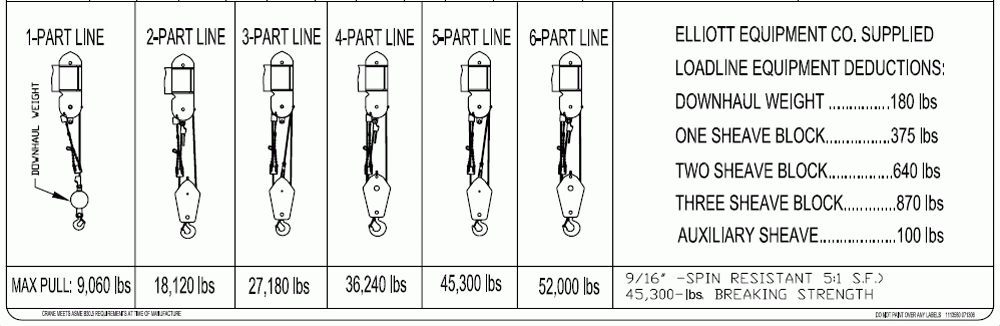

Elliott 2695F - Allowable Line Pull Chart

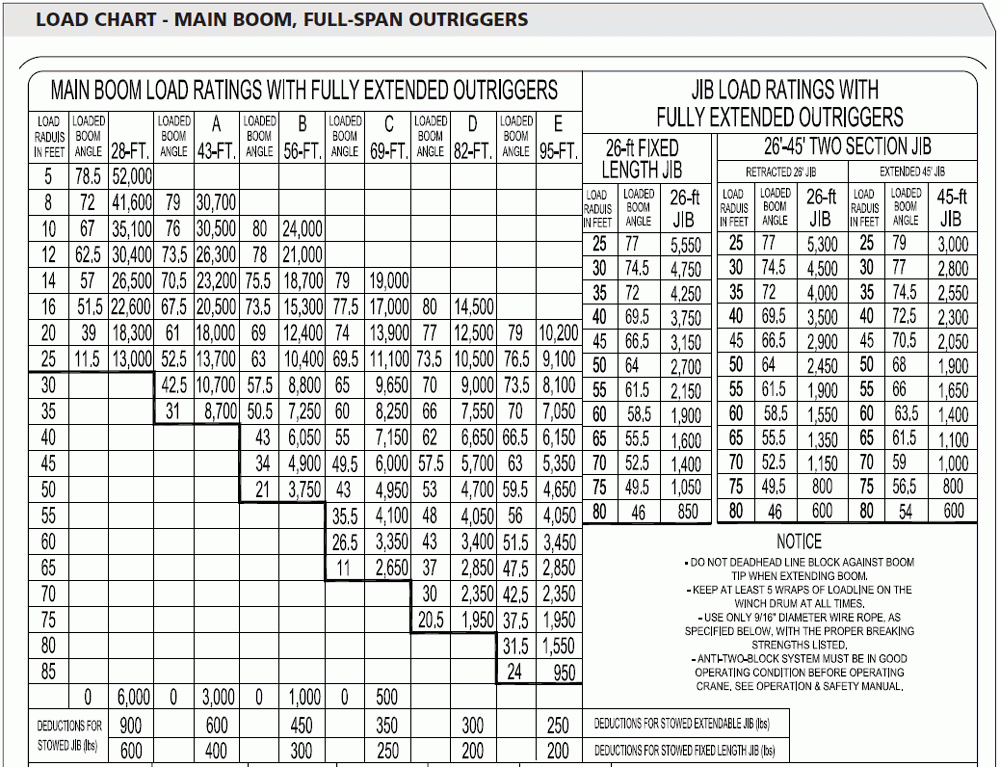

Elliott 2695F - Load Chart & Jib Chart

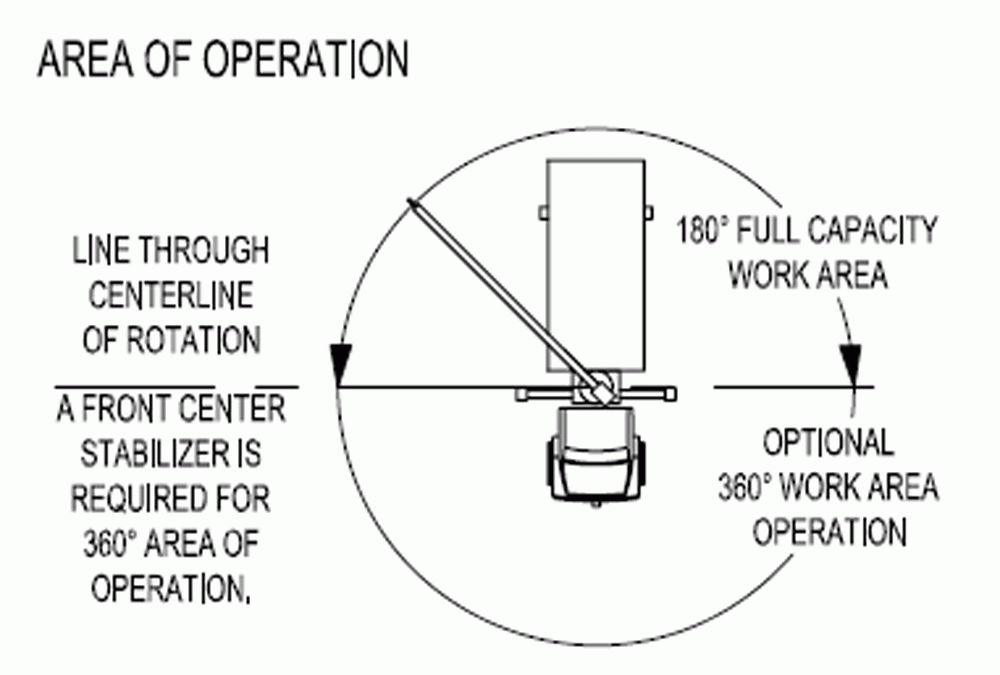

Elliott 2695F - Area of Operation
Warning: All load, rating, and capacity charts / images shown on this site are for general reference only! Always consult with your equipment manufacturer reguarding rated load capcity of your crane prior to operation.
